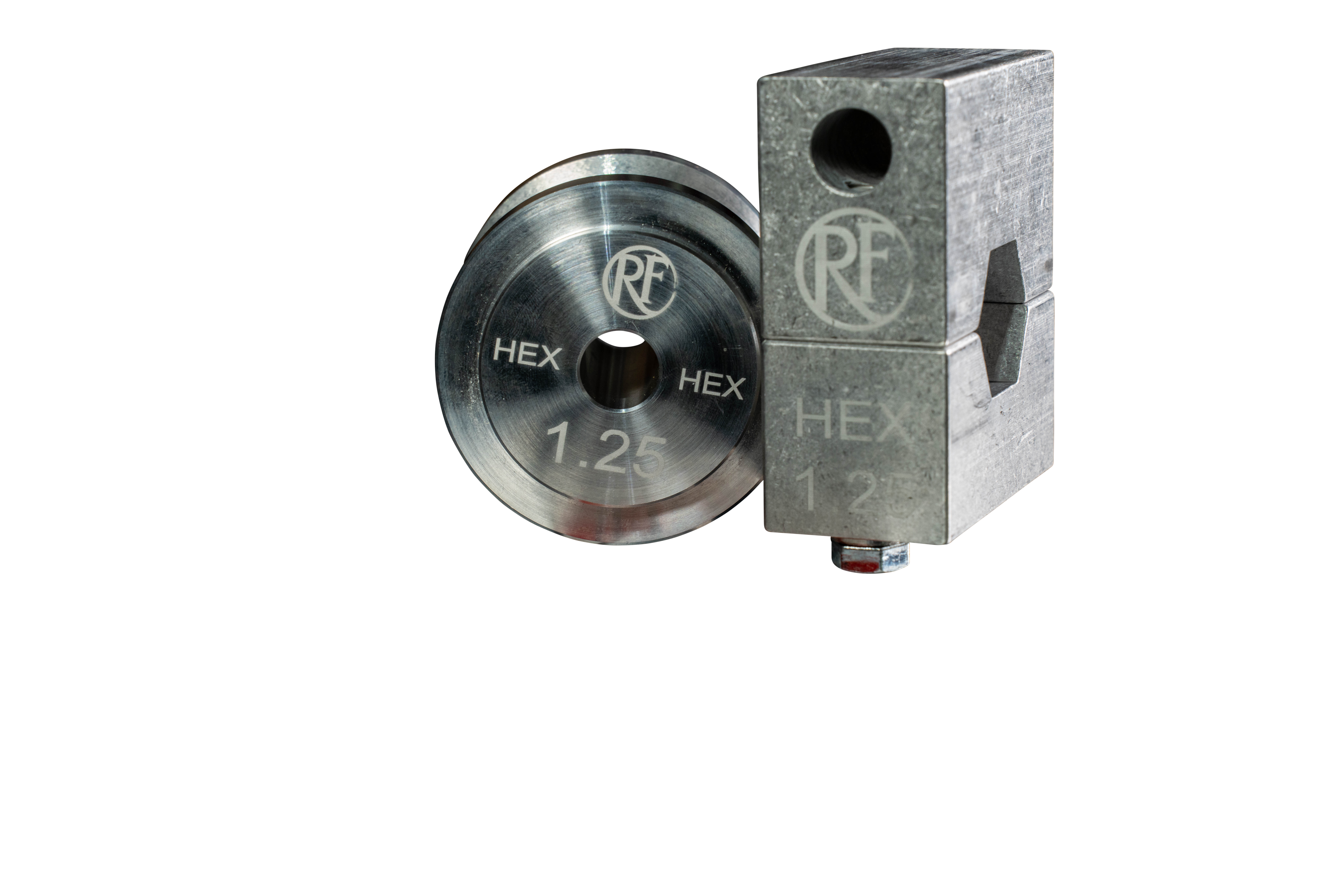

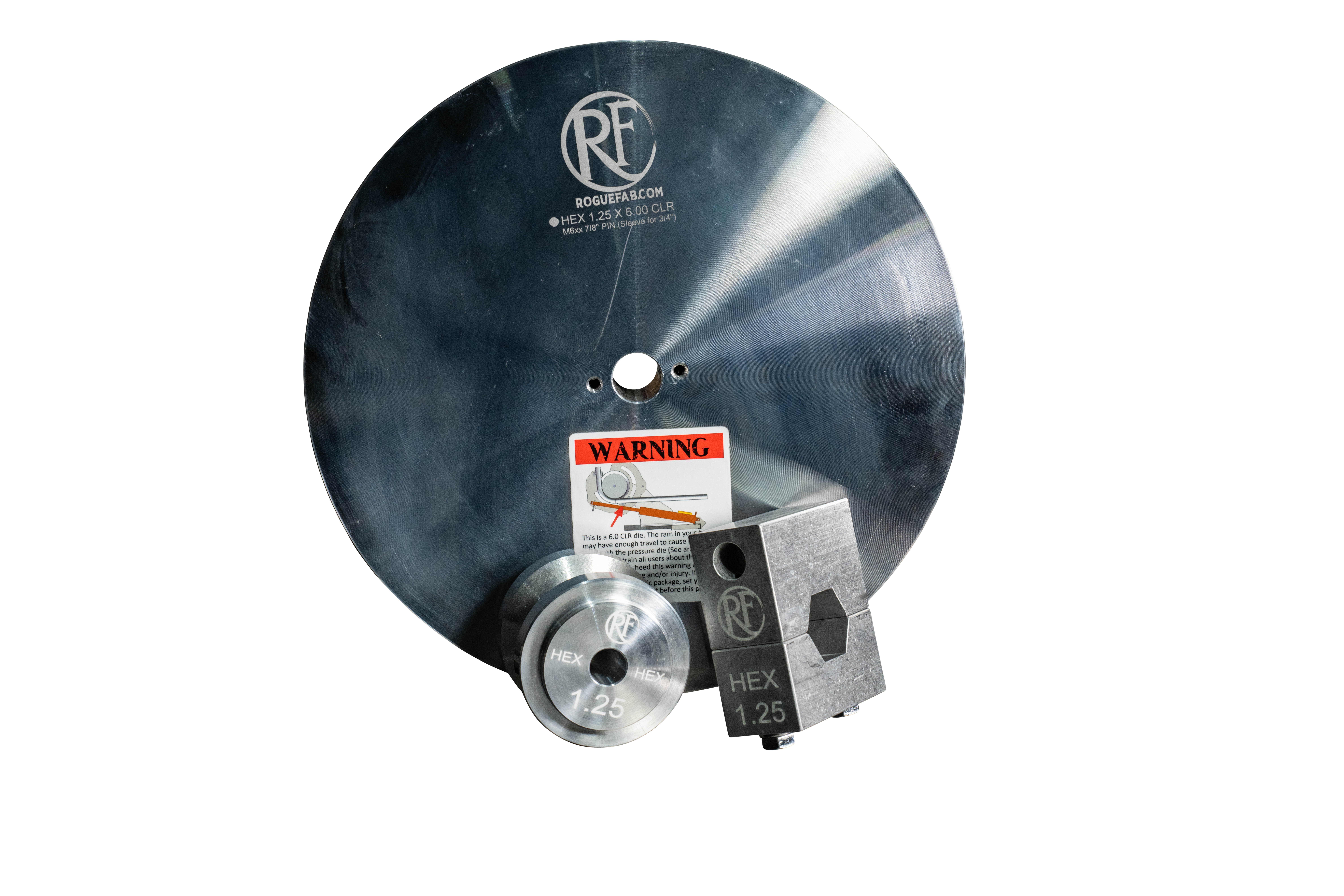

Hex Tube Die Set, 180+ Degrees


SKU: 100869-1 Category:
  • Weight:

    20 lbs

  • Dimensions:

    11 × 11 × 2 in

  • Tube Die Size:

    1.0 x 6.0 CLR, 1.25 x 6.0 CLR

  • Roller Die:

    No, use standard pressure die(s), Yes, Upgrade to pressure roller(s)

  • Pin Diameter:

    3/4" (see description), 7/8" (all 2023+ machines)


Customize The Options To Get The Perfect Tool For Your Needs


Some of our benders use a 3/4 pin through the main die, while others use a 7/8 pin. You can easily measure this with calipers. All machines sold 2023 and later will use the 7/8″ pins.

For a complete range of wall thickness this die can bend, please visit our Wall Thickness Chart (LINK) and you will find the capacity for stainless, carbon steel (1020/4130/etc), and aluminum. All of our dies carry a lifetime warranty against breakage and can bend 195 degrees.

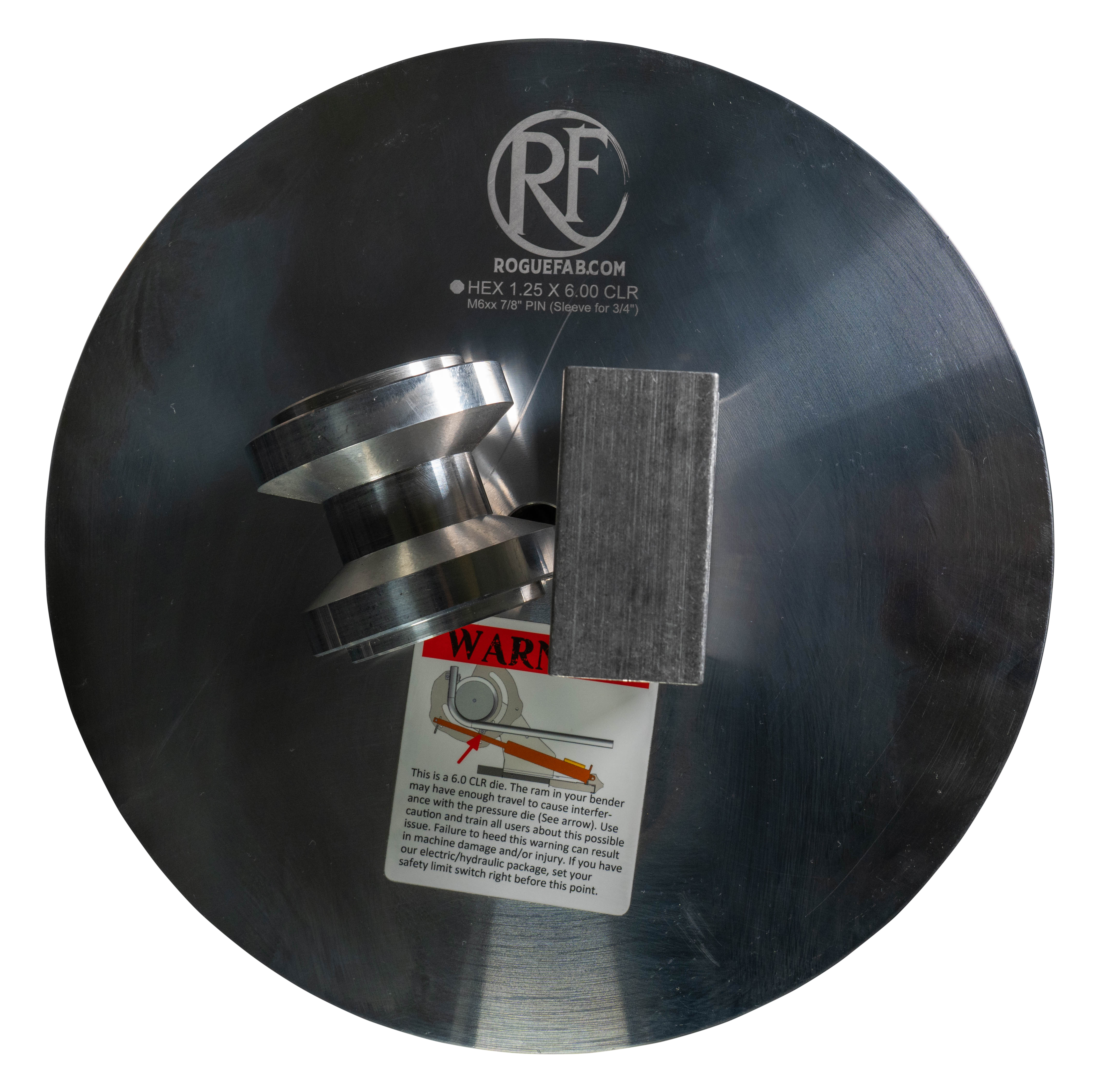

NOTE: When you order a die from Rogue Fabrication, it comes with a clamp block and a pressure die. You can buy additional pressure dies (for capacity to match your 605 or 625 bender) or additional clamp blocks (for several reasons, see clamp block listing for details) separately if you want more. Also, dies 1.50″ and under that are on a 6.0″ centerline bending radius will be limited on travel by a few degrees per stroke due to space limitations. No other dies are affected.
