NHRA/SFI Complete Tube Bender Package – Mandrel or Thin Wall Roller**

$4,649.00$9,399.00

(2 customer reviews)
  • M601/605 metal pipe bender can do 94 degrees in one shot and go past 180 degrees
  • Bends a variety of metals - mild carbon steel, chromoly, stainless steel, aluminum and more!
  • Extremely accurate and easy to use
  • COMPLETE PACKAGE with software (see description below)
  • Made in the USA
  • Patent Pending
SKU: N/A Category:
  • Weight:

    301 lbs

  • Dimensions:

    30 × 20 × 24 in

BUILD IT YOUR WAY

Customize The Options To Get The Perfect Tool For Your Needs

Description

This product is protected by US Patent No. 11529663 and No. 11478838, and has other pending patent(s).

This comes with everything you need to build an accurate 25.5, 25.4, 25.3, or nearly any other drag or road race chassis you can think of! Complete welded machine with all stickers already applied, and a fully assembled notcher. Comes with bending software, and indication for bend angle and rotation of bend planes. Full color instructions and tech support included. Our current lead times are based on order volume during Black Friday weekend, orders will ship in the order they are received.

Exact list of what you get (Standard):

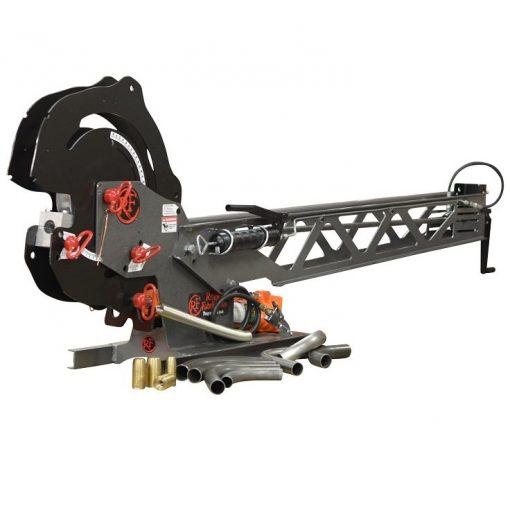

  1. Model 601 (or 605 if chosen) Metal Tubing Bender (welded and powder coated, with air/hydraulic cylinder installed, ready for use) with the following dies, all upgraded to pressure roller dies, all with tube clamps laser engraved with our degree rotation option for making 3D parts, and all with CNC machined spacers:
    • 1.625 (1 5/8) x 6.00 CLR (setup with Thin Wall Roller upgrade)
    • 1.500 (1 1/2) x 6.00 CLR
    • 1.25 (1 1/4) x 6.00 CLR
    • 1.00 X 4.50 CLR
    • 875 (7/8) X 3.50 CLR
    • .75 (3/4) X 3.50 CLR
  2. VersaNotcher Tube Notcher (Zinc)
    • 6 hole saw arbors
    • Hole saws for every size of die
    • Cutting oil
  3. Tube Rotation Gage – for 3D bending
  4. Tube bending design software (Bend Tech PRO)

If you select M605 w/double clamps, you will get an 605 bender instead of standard capacity 601, and you will get (2) of every tube clamp (makes complex multi-bend parts way easier). If you select Mandrel (dry) & 2X Clamps, you will get an 605 bender instead of standard capacity 601, and you will get (2) of every tube clamp (makes complex multi-bend parts way easier), and you will also get our mandrel attachment, and mandrels for 1.625x.083, 1.50x.065, 1.25x.065, 1.0x.058, and 1.0x.049. This will also swap your dies for 1.625/1.25 down to 4.5” bend radius, and swap your 1.0” die down to a 3.5” radius, allowing you to make tighter bends, and thus have more control over the layout of your chassis, and more space/comfort inside the cage! And the Versa Notcher is upgraded to the Ultra Notcher! If you select Mandrel (thru-lube), ELITE cart, wrap/powder, you will get an 625 Powder Coated bender instead of standard capacity 601 or 605, with a beautiful UV protected vinyl wrap installed, and you will get (2) of every tube clamp (makes complex multi-bend parts way easier), and you will also get our mandrel attachment, 3/4″ and 1/2″ Mandrel rods, and mandrels for 1.625x.083, 1.50x.065, 1.25x.065, 1.0x.058, and 1.0x.049. This will also swap your dies for 1.625/1.25 down to 4.5” bend radius, and swap your 1.0” die down to a 3.5” radius, allowing you to make tighter bends, and thus have more control over the layout of your chassis, and more space/comfort inside the cage! You will also get our ELITE cart, 2 hanging die racks, the Beast rack. VersaNotcher pedestal mount, and offset bracket, turning your tooling packing into a rolling fabrication system to save you time and energy. You do NOT need CAD experience or a high performance computer to run the software. You can watch 30 minutes of YouTube videos and build a complete chassis in the software in a number of hours, not days. The software will print out detailed instructions on how long to cut each piece, where to notch, how to bend them, and how much they will weigh. Each piece can be named, edited, copied, pasted, etc. Multiple tube sizes, scaling of parts or entire assemblies, no problem. The software has our machine and dies already loaded into a database. It will compensate for tube stretch, spring back, and the variation between nominal bend radius and achieved bend radius (and you don’t need to understand these 3 terms, just run a calibration on the software, which includes bending a 90 and measuring it with a tape measure, and it will do it all automatically). *shipping notes for LTL FREIGHT: Our shipping cost is assuming you have a commercial (non residential) address and a dock or forklift to unload. Residential and lift gate fees average $65 each and are the buyer’s responsibility. You may also pick up at the freight terminal for no additional cost to avoid these costs if they apply(they will load into your pickup truck). If you have ground items ordered, they may have a separate much smaller shipping charge at checkout.

Machine Dimensions:

M6xx tubing bender: (assembled, ready to bend): 12”x30” floor footprint. Overall dimensions 12”x47”x32” (LxWxH). Weight 140-200 lbs.

M6xx Bender on Cart: 22”x34” floor footprint. Overall dimensions 22”x47”x68” (LxWxH). Weight 210+ lbs (depends on cart contents).

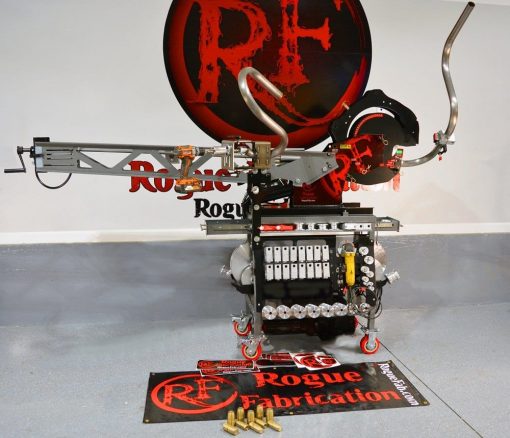

M6xx Mandrel Bender on Cart: 22”x34” floor footprint. Overall dimensions 22”x105”x68” (LxWxH). Weight 295+ lbs (depends on cart contents).

Are you worried about learning how to bend tube? Or learning a new machine? Ours is the easiest to use, and able to make to most complicated bends. Let us show you in under 7 minutes:

Want to see a whole project from start to finish, and even more bending tricks that are 100% unique to our design? Watch this video:

How hard is it to change dies? Super easy! Here is a video of a die set change;

Have you ever seen a tubing bender bend 2.00″ Solid steel bar at room temperature? Now you can! Our M625 is up to the task (for testing purposes). Our M605 can bend up to 1.5″ Solid bar, so it is still built way tougher than needed (the M605 is the machine in our NHRA pacakge).

Please see our wall thickness capacity chart for full details. It is in our tech section on our web page.

2 reviews for NHRA/SFI Complete Tube Bender Package – Mandrel or Thin Wall Roller**

    18f825a9 5320 4dcd 9ed3 8963508e18bd
    1e5caf58 49a0 4da5 8438 7add1286ee43
    18f825a9 5320 4dcd 9ed3 8963508e18bd
    +1
    Tim heitzenrater
    01/31/2021
    I purchased this kit from rogue fab back in April and I’m satisfied with it. I had a few small issues along the way but a simple call spoke with joe and he walked me right through them and couldn’t have been anymore helpful. I ended up adding the mandrel attachment to bend some 2” .095 wall dom tubing and it also worked great! Thanks from to welding and fabrication in ohio
    7b89a287 Ad0b 4c3c 8407 4fff7a303451
    Justin Landers
    11/14/2020
    Works excellent easy to set up and learn to use. A+++
