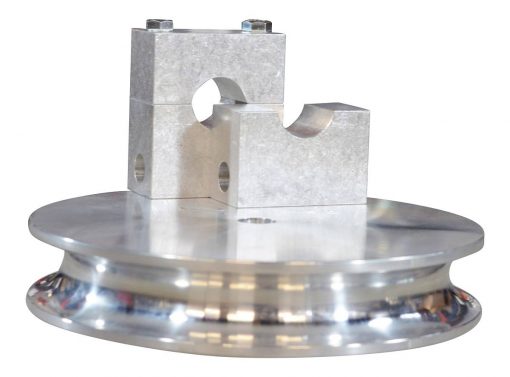

Pipe Die Sets, 180+ Degree

$249.00$445.00

(4 customer reviews)
SKU: N/A Category:
  • Weight:

    14 lbs

  • Dimensions:

    11 × 11 × 2 in

BUILD IT YOUR WAY

Customize The Options To Get The Perfect Tool For Your Needs

Description

Some of our benders use a 3/4 pin through the main die, while others use a 7/8 pin. You can easily measure this with calipers. All machines sold 2023 and later will use the 7/8″ pins.

For a complete range of wall thickness this die can bend, please visit our Wall Thickness Chart (LINK) and you will find the capacity for stainless, carbon steel (1020/4130/etc), and aluminum. All of our dies carry a lifetime warranty against breakage and can bend 195 degrees.

Pressure Roller Die upgrade- Speeds up loading the machine and also reduces friction on the dies, making lubrication unnecessary and also potentially improving bend quality slightly. They are great for STEEL, ALUMINUM, and STAINLESS. They also allow you to pull bends up to 20+ degrees through them to make “S” bends and bends very close together if you’re careful. Not available for all sizes.

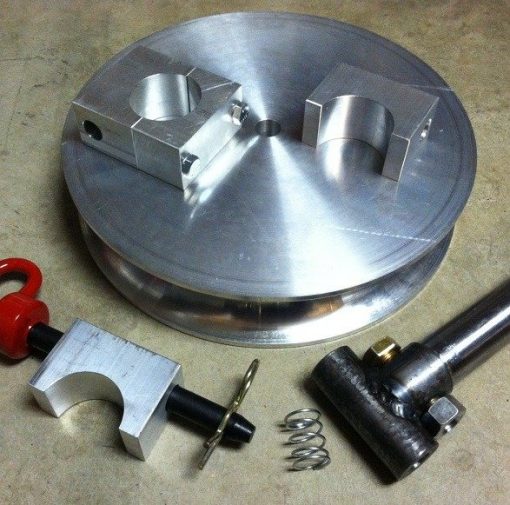

NOTE: When you order a die from Rogue Fabrication, it comes with a clamp block and a pressure die. You can buy additional pressure dies (for capacity to match your 605 or 625 bender) or additional clamp blocks (for several reasons, see clamp block listing for details) separately if you want more. Also, dies 1.50″ OD and under that are on a 6.0″ centerline bending radius will be limited on travel by a few degrees per stroke due to space limitations. No other dies are affected.

4 reviews for Pipe Die Sets, 180+ Degree

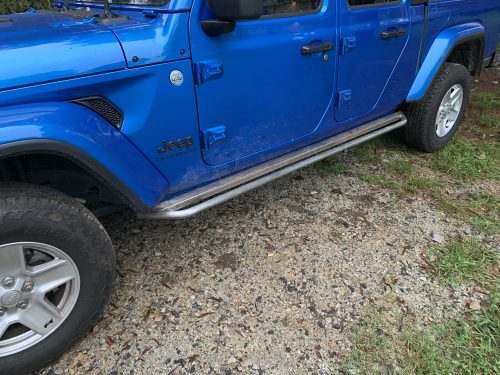

    61da8ac7 780c 478c 86fc 01d2541c7933
    Cory Thurmond
    09/26/2020
    The 180 degree dies make for a quick change between tube sizes and will last a life time with lubrication. Best product on the market.
    Robert Vince
    05/27/2019
    These dies are of very high quality, the deformation is very minimal. Plus, there quick and easy to change out. Can’t recommend Rogue Fab high enough.
    Robert Vince
    05/16/2019
    The quality of these dies are second to none. The amount of deformation is fantastic. I would recommend upgrading to the pressure rollers, very versatile tooling.

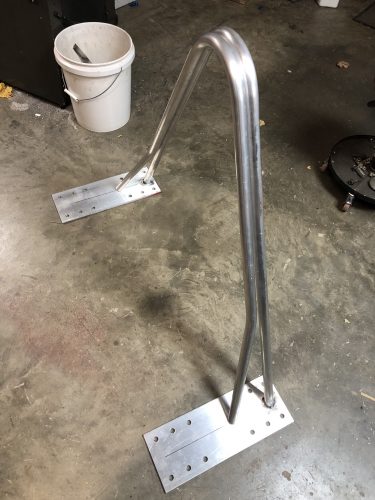

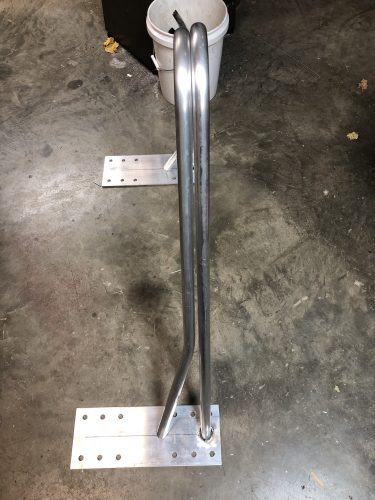

    Pipe Die Sets, 180+ Degree photo review
    Pipe Die Sets, 180+ Degree photo review
    Pipe Die Sets, 180+ Degree photo review
    +1
    Tyrone Fields
    11/21/2018
    Worked great. I chose to purchase the roller die with it also because I was bending aluminum pipe. The steel company I use doesn’t carry aluminum tube. It worked great, absolutely no deformation. I love this system.
