Standard Pressure Dies


SKU: N/A Category:
  • Weight:

    1 lbs

  • Dimensions:

    3 × 2 × 2 in


Customize The Options To Get The Perfect Tool For Your Needs

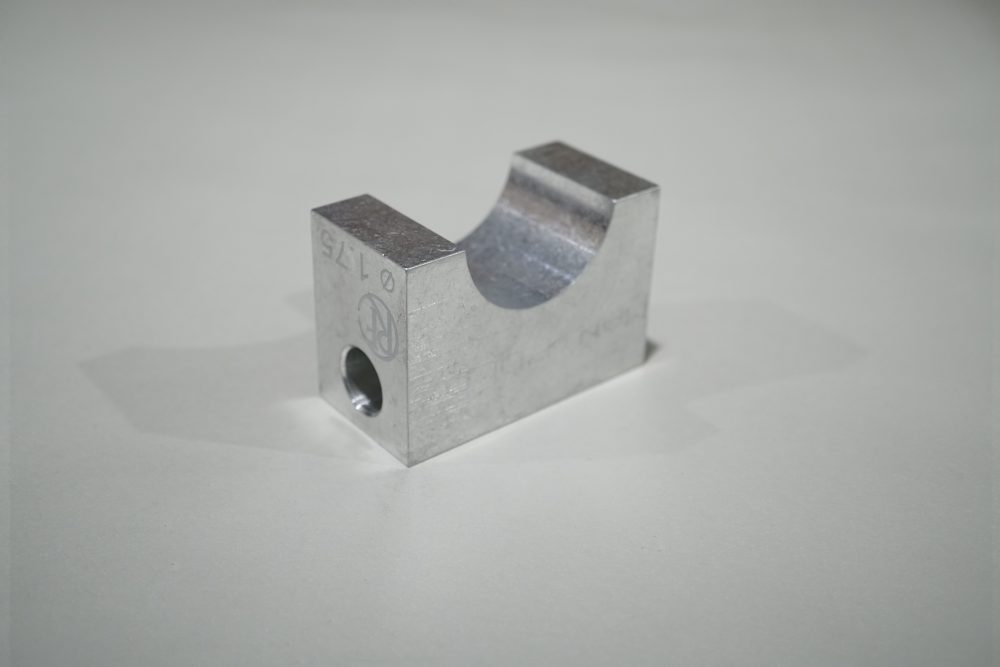

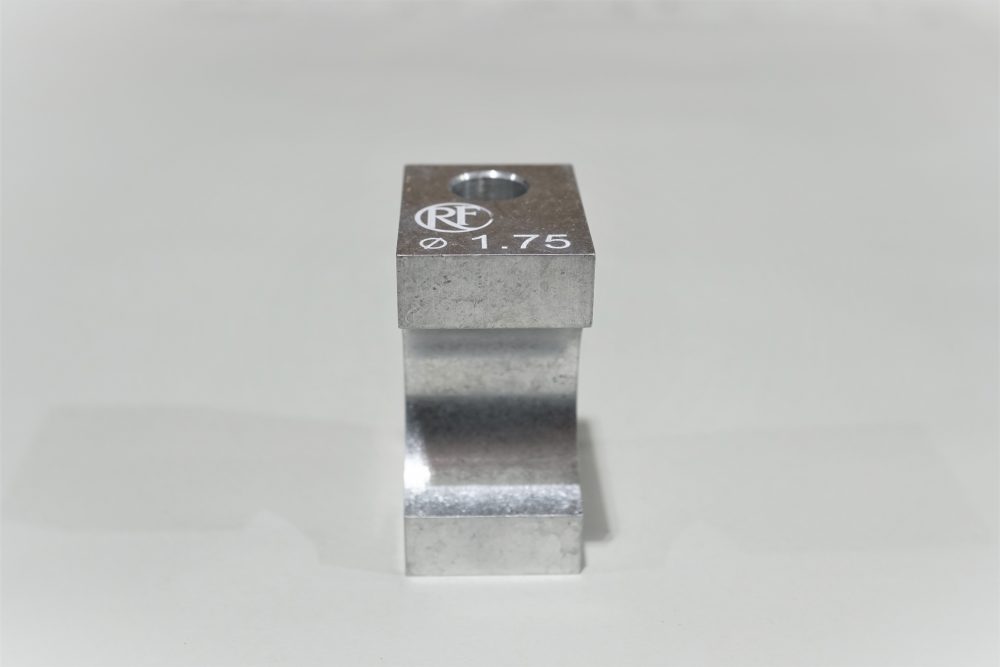

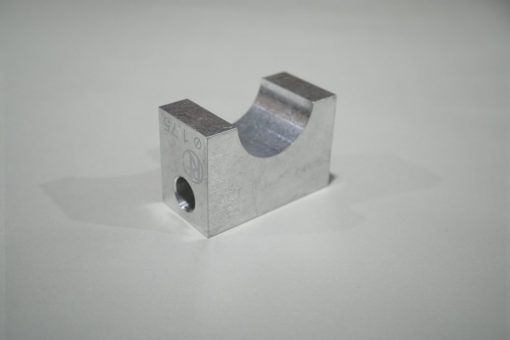

Pressure dies for our standard die sets. These dies work with all of our benders, on steel or stainless tubing and bar. This is the only common wear part, as the tubing slides through it.

Why would I want this: you MUST use a second pressure die for any tube that requires an HD kit or the xHD model on our master bending thickness chart. So if you bend a wall thickness that is in one of the right-most 4 columns on the bending chart, you need to order one of these and use it when you bend.

Why wouldn’t I want this: There is no need to have a spare, they last a long time. Also, all 1.875, 1.90, and 2.00 die sets come with 2 pressure dies, so you won’t need to buy that size with your new die or new machine. If you chose to use pressure roller dies, you have no need for these as well.
