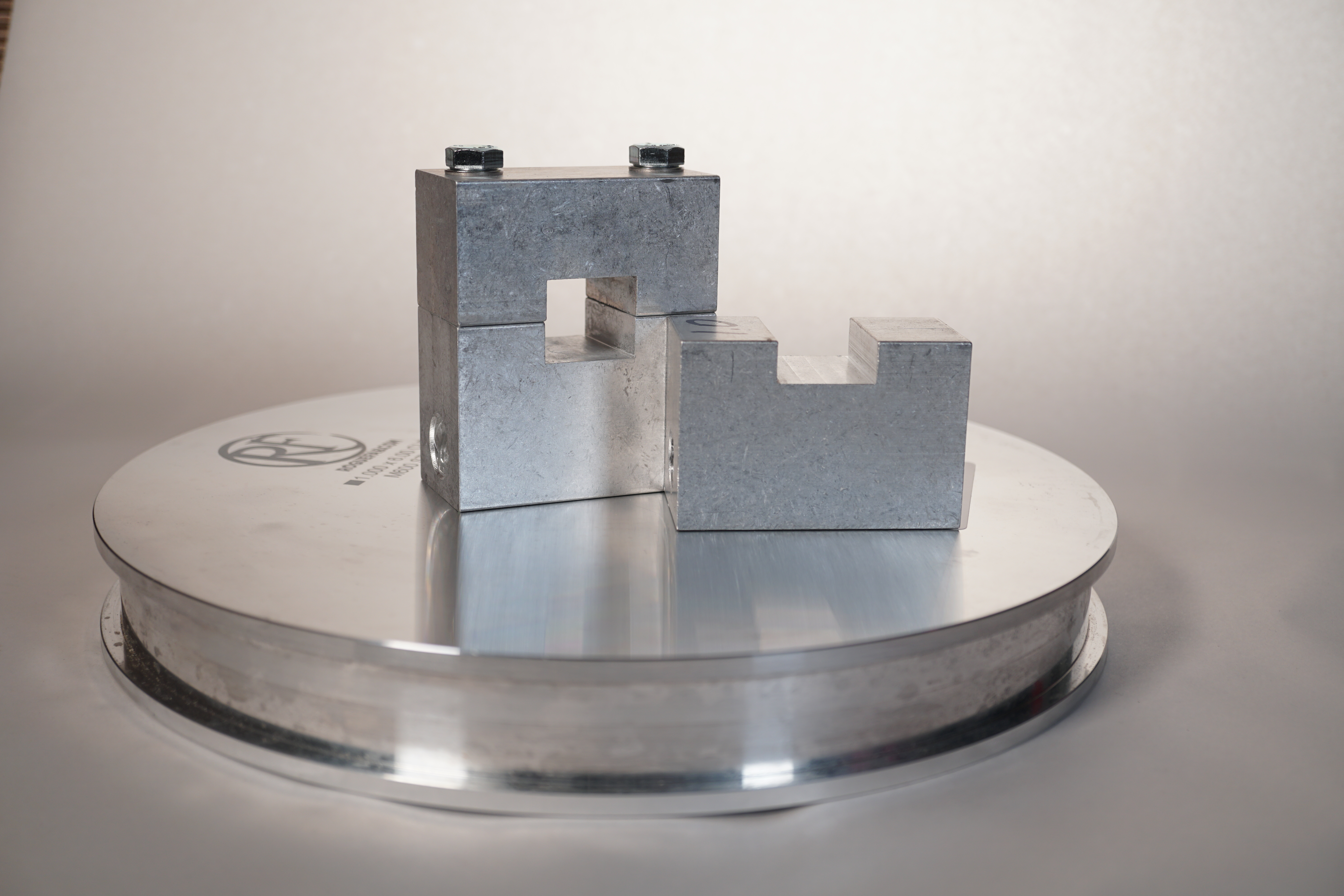

Square Die With Std

Square Tube Die Sets, 180+ Degree

(1 customer review)

$199.00$395.00

Clear
SKU: N/A Category:

Description

For a complete range of wall thickness this die can bend, please visit our Wall Thickness Chart (LINK) and you will find the capacity for stainless, carbon steel (1020/4130/etc), and aluminum. All of our dies carry a lifetime warranty against breakage and can bend 195 degrees.

For M601/605 or M625 – Our standard bender is the M601. If your main bending die has a 7/8″ pin, you need M625 dies. If yours is 3/4″, use the M601/605 dies.

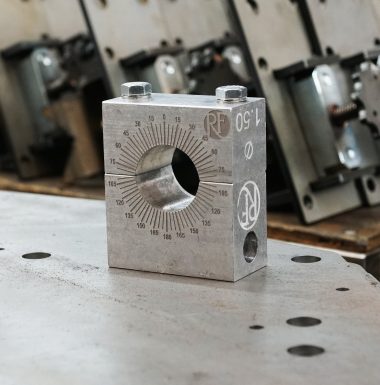

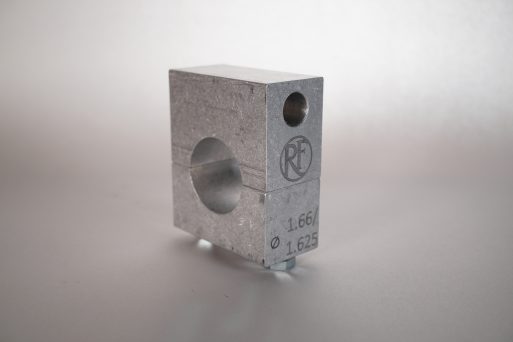

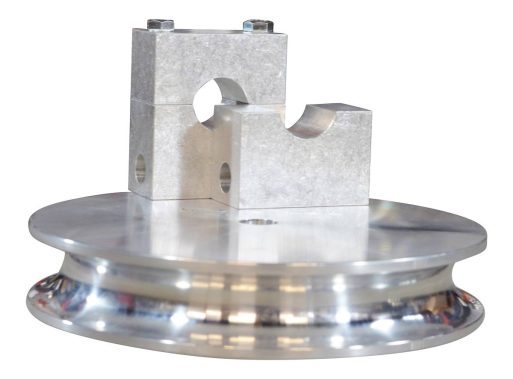

NOTE: When you order a die from Rogue Fabrication, it comes with a clamp block and a pressure die. You can buy additional pressure dies (for capacity to match your 605 or 625 bender) or additional clamp blocks (for several reasons, see clamp block listing for details) separately if you want more. Also, dies 1.50″ and under that are on a 6.0″ centerline bending radius will be limited on travel by a few degrees per stroke due to space limitations. No other dies are affected.

More Info

Notes about square die break in- We redesigned our square dies in 2021 and achieved increased bend quality. This also increased the force the die puts on the outer walls of the tube while bending. Due to this added force, the die and tube need to be lubricated with bend-all-004 (sold in our store), and you will also need to make your first several bends with 2 clamp blocks (one like normal, second on as a back up to add holding force). Once your bend is done, you can use an extra pin and the electric/hydraulic system in reverse to eject the bends or you can use a rubber mallet to tap them out. Even on 1.50x.125 wall A500 steel square tube with a brand new die and 90 degree bends we’re able to remove the material easily this way. After you dies break in and wear a little they should operate just like a round tube die that has a couple of break-in bends on it (material will come out easily by hand. We hope this helps and prevents any surprises. -RogueFab Team

1 review for Square Tube Die Sets, 180+ Degree

    mike
    01/01/2020

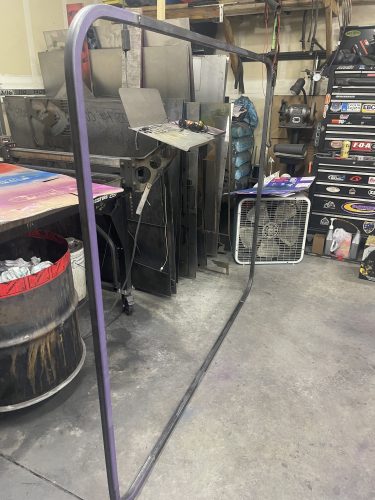

    I got the smaller size, 1" square with 4.5 radius, and it works well. I've made roof racks and other storage components with it and the square tube barely deforms at the bend thanks to the rollers. If you want to bend square tubing and want it looking clean, can't do better
