STAR Shaped dimple die

$185.00

(2 customer reviews)
Category:
  • Weight:

    2 lbs

  • Dimensions:

    3 × 3 × 3 in

Out of stock

Description

Another industry first! Shaped dimple dies. Set your fabwork apart from the crowd or use just the right shape to get the most weight benefit possible from your dimpling. Triangular holes in your tube gussets or square holes in your tie plates will cut more weight than round holes. The stars make a great traction surface on steps too!
How to use: Cut your shape out on a plasma table, laser cutter, or with a grinder. Use a bolt, H frame press, ironworker, or knockout driver to dimple the hole with these dies.

These are machined in the US out of 4140 Chromoly that is made and heat treated here is the US. Shapes are 1.5-2 inches tall. Max capacity 1/8 inch plate steel.

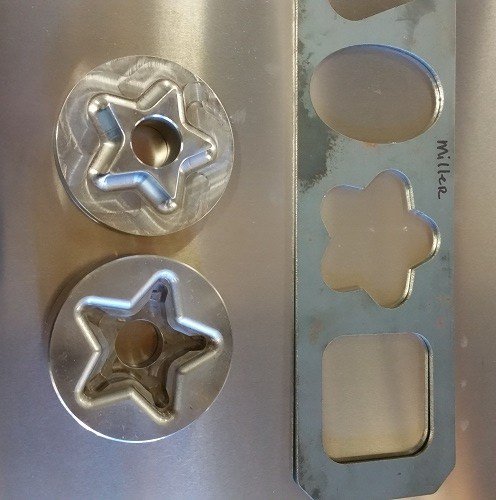

Set includes:

Shaped die for star.

Plasma cutter drag tip stencils for .188″, .385″,.430″, and .580″ tip plasma cutters.

DXF and PDF files of cutout shapes for your use in producing these shapes.

2 reviews for STAR Shaped dimple die

    A5d7344c B94f 470d 8bf6 Cc9c22201f05
    Big Worm
    02/20/2023

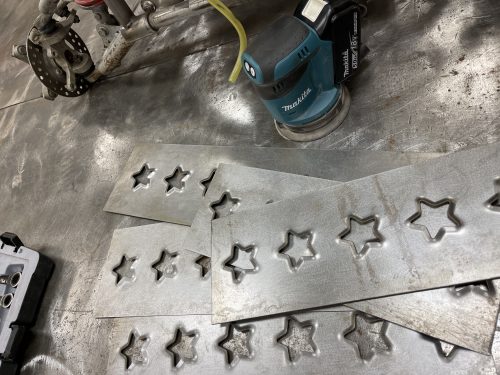

    Love these star dimples. I’ve punched out about 90 of these so far and can’t say enough good things about them. I compared Rogues against the other star shaped dimple on the market and the feature that pushed me to Rogue was the absence of three individual alignment pins that the other brand features. That method seems like an easy way to add time to the process and also throw off the alignment of the dimple with other dimples if it’s not 100% perfectly aligned.
    Star
    DirtySallyFab
    01/31/2021
    This thing is so bad ass. It takes a min to get used to using the stencil. Tip- cut it fast! I have incorporated this star with so many things! It is a game changer, and really sets you apart from the ol standard round holes. The tool is made from really hard materials so its going to out last you.
