Designed & built in Sandy, Oregon

Stop outsourcing. Make it in your own shop.

We build the tube benders, notchers and 20-ton shop press to do it. A standard bender starts at $1,044 with your first die, ram not included.

Build & Price
  • ★★★★★ 5.0 from 326 Google reviews
  • Lifetime die warranty
  • Ships in about 1.5 weeks

Pick your bender

Three frames. One set of dies.

Pick a frame by the biggest tube and the thickest wall you bend. Every frame also bends square tube and pipe.

M601 tube bender frame
M601Standard duty
0.25" to 1.75"Round tube OD
0.156"Max wall

Max wall rated at 1.75" OD, carbon steel.

Handrail, light chassis and budget cage builders.

Frame from$725Build
Most popular

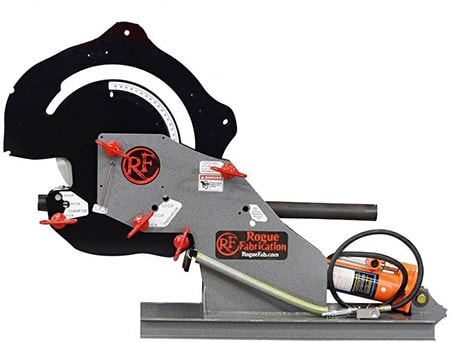

M605 tube bender frame
M605Heavy duty
0.25" to 2.00"Round tube OD
0.188"Max wall

Max wall rated at 2.00" OD, carbon steel.

Commercial handrails, production roll cages and offroad cars.

Frame from$774Build
M625 tube bender frame
M625Extreme heavy duty
0.25" to 2.00"Round tube OD
0.250"Max wall

Max wall rated at 2.00" OD, carbon steel.

Industrial applications and high-end rock crawlers.

Frame from$1,478Build
  • Upgrade as you grow

    Our standard machines are backward compatible, so you can bolt on mandrels, electric hydraulic power and other accessories when you need them.

  • Dies guaranteed for life

    Every die carries a lifetime warranty when used in rated applications. See the terms

  • Built to be serviced

    We continue to innovate by adding DuraPlates and other parts that reduce wear and tear on the machine. When you do need parts, we stock them and ship them quickly.

  • Real people on the phone

    Call 503-389-5413 and a real person at our shop in Sandy, Oregon answers, before and after you buy.

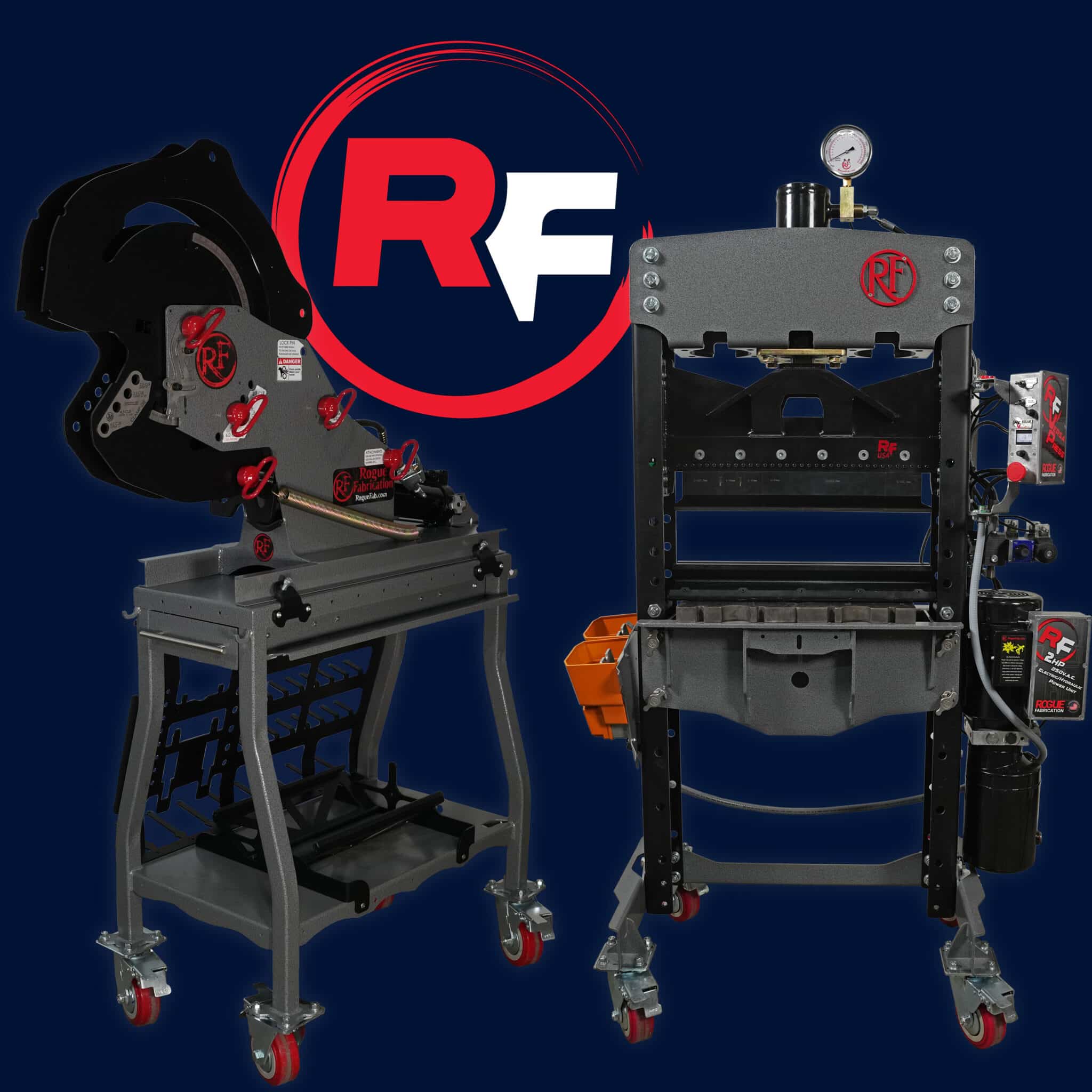

20-ton shop press and CNC press brake

CNC press brake attachment

VersaPress

The shop press, powered.

The shop press that bends sheet.

The VersaPress 20-ton shop press
20-ton ram20-ton ramThe 20-ton electric hydraulic cylinder carries a gauge that reads force in tons. It mounts center, left or right on the frame.Included with the frameBuild your VersaPress ›
TableTableRaise or lower the table with the ram and the provided lifting chains, down to nearly floor level for tall parts. Twist-lock stainless steel pins hold it at each height.Included with the frameBuild your VersaPress ›
Foot pedalsFoot pedalsTwo foot pedals, one up and one down, keep both hands on the part. They hang on the frame when they are not in use.Included with the frameBuild your VersaPress ›
ControlsControlsAuto-return comes standard. The Advanced Controls add force control and CNC-programmable top of stroke, pinch and bottom of stroke setpoints, and they work with or without our press brake insert. With force control, set a load and the ram stops there, which protects tooling and PEM inserts. The ram can overrun by 1 to 2 tons, so set the limit a little below the load you need.Advanced Controls +$545Build your VersaPress ›
2.0 HP pump2.0 HP pumpStand-alone 220 to 250 V hydraulic power for your press, with a 20 ft cord. If your M600-series bender has the 2.0 HP unit, quick-disconnect fittings save money: two machines run from one power unit.$1,812Build your VersaPress ›
  1. 20-ton ramThe 20-ton electric hydraulic cylinder carries a gauge that reads force in tons. It mounts center, left or right on the frame.Included with the frameBuild your VersaPress ›
  2. TableRaise or lower the table with the ram and the provided lifting chains, down to nearly floor level for tall parts. Twist-lock stainless steel pins hold it at each height.Included with the frameBuild your VersaPress ›
  3. Foot pedalsTwo foot pedals, one up and one down, keep both hands on the part. They hang on the frame when they are not in use.Included with the frameBuild your VersaPress ›
  4. ControlsAuto-return comes standard. The Advanced Controls add force control and CNC-programmable top of stroke, pinch and bottom of stroke setpoints, and they work with or without our press brake insert. With force control, set a load and the ram stops there, which protects tooling and PEM inserts. The ram can overrun by 1 to 2 tons, so set the limit a little below the load you need.Advanced Controls +$545Build your VersaPress ›
  5. 2.0 HP pumpStand-alone 220 to 250 V hydraulic power for your press, with a 20 ft cord. If your M600-series bender has the 2.0 HP unit, quick-disconnect fittings save money: two machines run from one power unit.$1,812Build your VersaPress ›
The VersaPress with the CNC press brake installed
20-ton ram20-ton ramThe press brake air bends, so the ram position sets the angle, not the tooling. The same punch and die make many angles.Included with the frameBuild your VersaPress ›
ToolingToolingGooseneck tooling clears return flanges and channels, acute tooling bends tighter than 90 degrees, and hemming tooling closes hems. Each comes solid, or segmented so sections come out for short flanges and tabs.Build your VersaPress ›
CNC press brakeCNC press brakeA glass scale reads the ram position live on the OLED screen. The control stores 25 programs, and 12 come loaded: 16 gauge, 1/8 in and 1/4 in at 30, 45, 60 and 90 degrees.$2,200Build your VersaPress ›
8-axis back gauge8-axis back gaugeTurn the handwheel to your dimension and read it on the digital readout. Spring-loaded stop blocks pivot up as the sheet bends, so every piece locates the same way.$1,210Build your VersaPress ›
  1. 20-ton ramThe press brake air bends, so the ram position sets the angle, not the tooling. The same punch and die make many angles.Included with the frameBuild your VersaPress ›
  2. ToolingGooseneck tooling clears return flanges and channels, acute tooling bends tighter than 90 degrees, and hemming tooling closes hems. Each comes solid, or segmented so sections come out for short flanges and tabs.Build your VersaPress ›
  3. CNC press brakeA glass scale reads the ram position live on the OLED screen. The control stores 25 programs, and 12 come loaded: 16 gauge, 1/8 in and 1/4 in at 30, 45, 60 and 90 degrees.$2,200Build your VersaPress ›
  4. 8-axis back gaugeTurn the handwheel to your dimension and read it on the digital readout. Spring-loaded stop blocks pivot up as the sheet bends, so every piece locates the same way.$1,210Build your VersaPress ›

A 20-ton electric hydraulic press. The table can be moved up and down with the ram and provided lifting chains. Add force control and the ram stops at the load you set. Press, punch, dimple and set PEM hardware.

20 tonsElectric hydraulic ram
32.5"Inside height, 23" wide
Force controlAdd-on, stops at the load you set
1-3 weeksMade to order

Bending sheet metal too? The same frame takes the CNC press brake attachment.

The CNC press brake installs in the VersaPress frame. A glass scale reads the ram position, the control stores 25 programs with 12 loaded for common bends, and the optional 8-axis back gauge sets where the sheet stops. It air bends, the way professional press brakes work.

25 programs12 loaded for common bends
8-axisBack gauge with a digital readout
Air bendingThe ram position sets the angle
1-3 weeksMade to order

Need the shop press back? Take the press brake out and it presses, punches and dimples again.

Frame from$4,895 With press brake$7,095Frame $4,895 + press brake $2,200. Back gauge +$1,210 Build your VersaPressBuild your VersaPress Watch it press ›

Add the 2.0 HP pump, or run it from the 2.0 HP pump on your M600-series bender with quick-disconnect fittings.

Built on RogueFab

The shops that bend for a living

Buggies, cages and stunt bikes, bent on the same machines and dies you can build here.

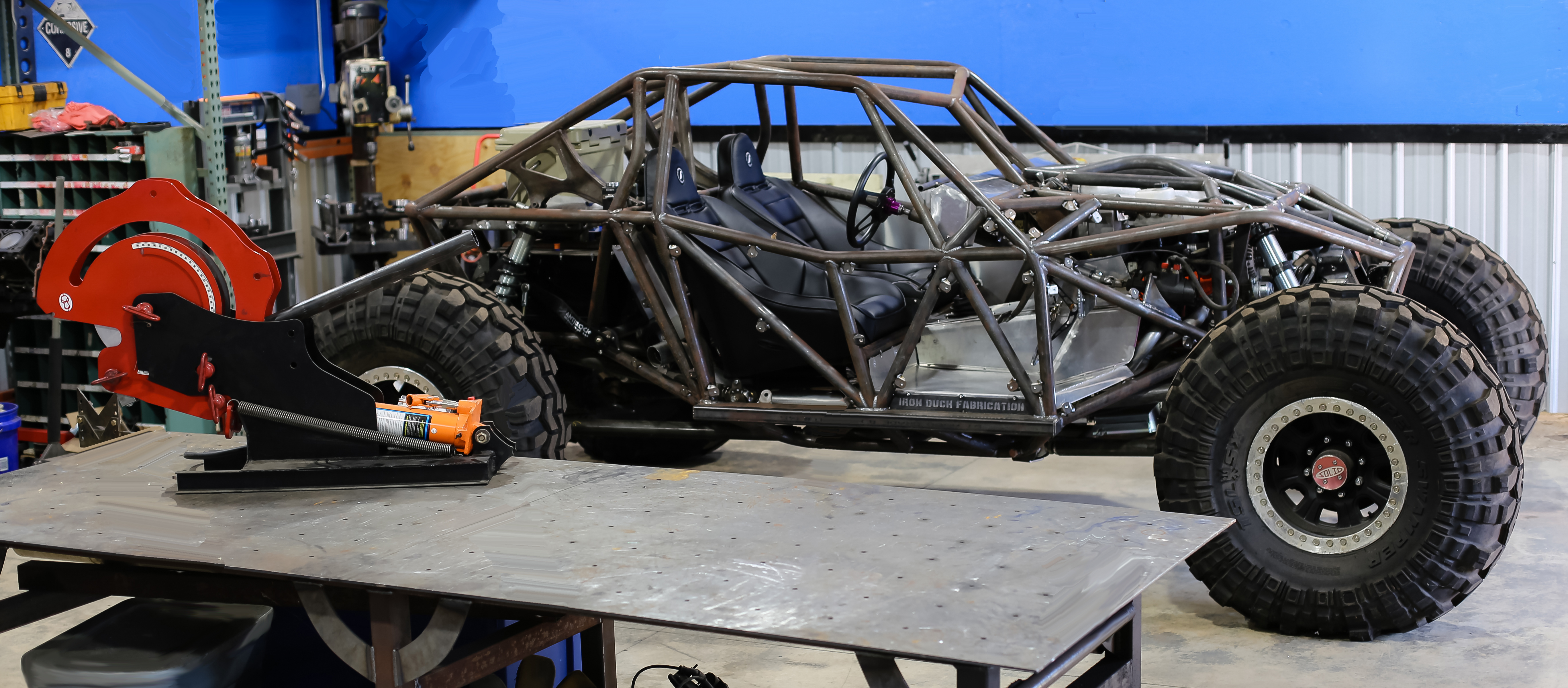

A tube buggy chassis built by Iron Duck Fabrication

“The ease and repeatability of my RogueFab bender has helped me build parts that exceed my customers' expectations.”

Jason DucketIron Duck Fabrication
A roll cage in a classic coupe by Janke Motorsport

“The versatility of our tools from RogueFab allows them to adapt as our shop grows. They understand the need and designed tools for businesses like mine.”

Mike JankeJanke Motorsport

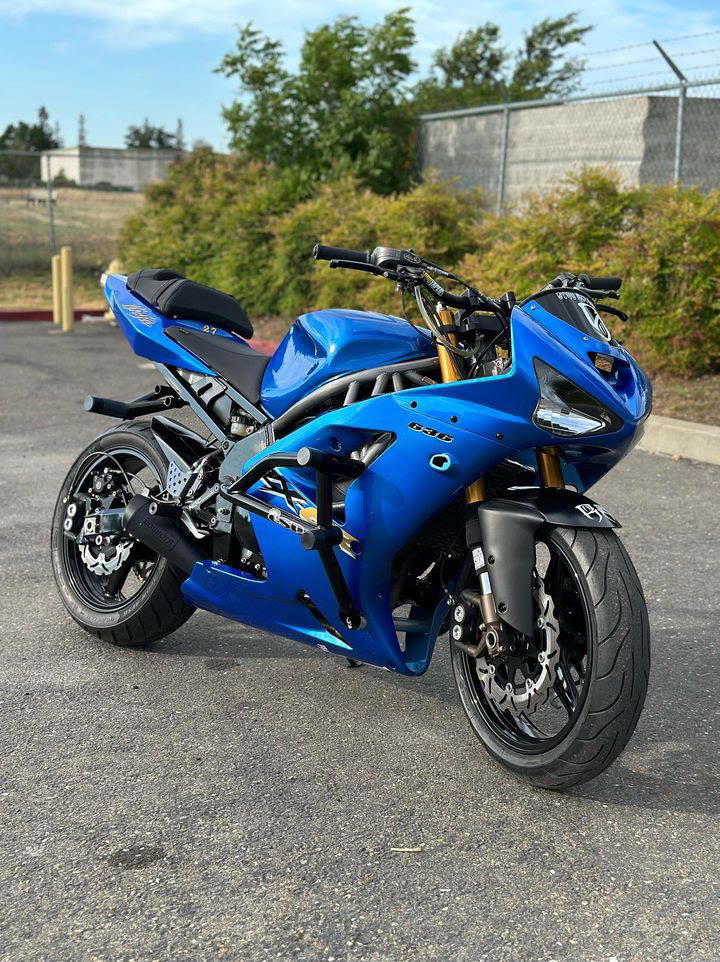

A stunt motorcycle with parts by Cock's Stunt Parts

“There isn't another brand I would put my trust into to make a living. They have the best design and customer support of any tool manufacturer.”

Matthew GlasscockCock's Stunt Parts
★★★★★ Read all 326 Google reviews ›
Trusted by
  • Tesla
  • US Marines
  • US Army
  • BMW Design Group
  • Lutz Race Cars
  • ConocoPhillips

Learn it, win it

Bend better with us on YouTube

How-tos, real bends and shop updates. Subscribers get in on our bender giveaways.

Free eBook: tube bending, start to finish

Layout, die choice and fabrication skills, written by Joseph Gambino.
