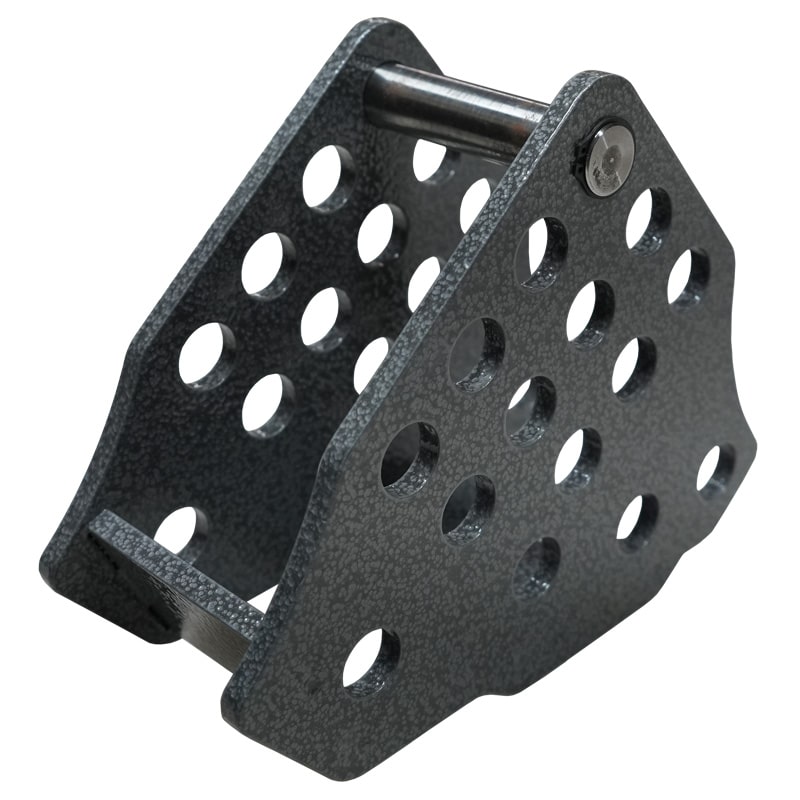

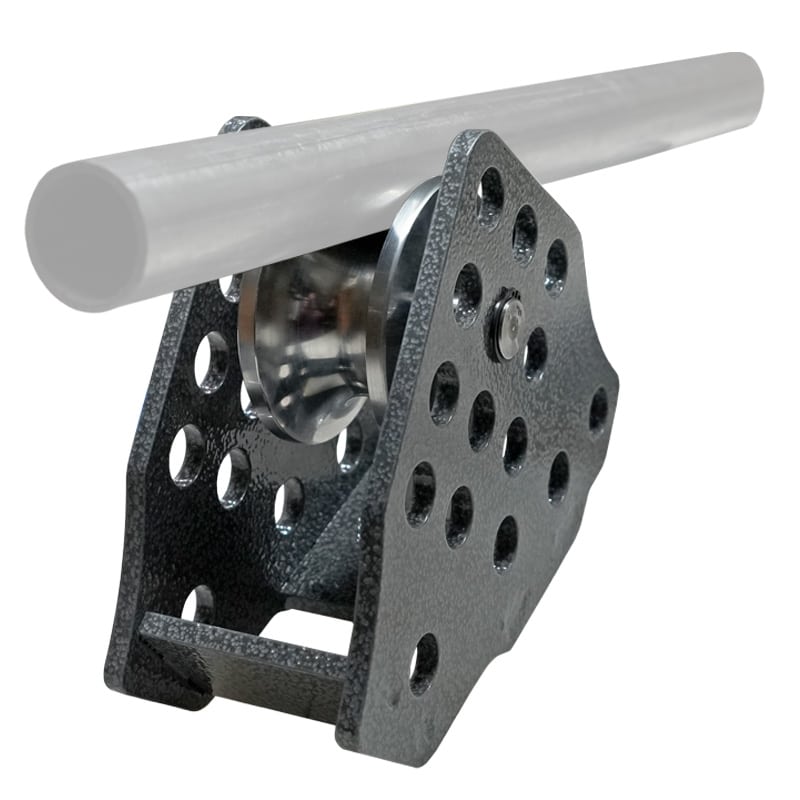

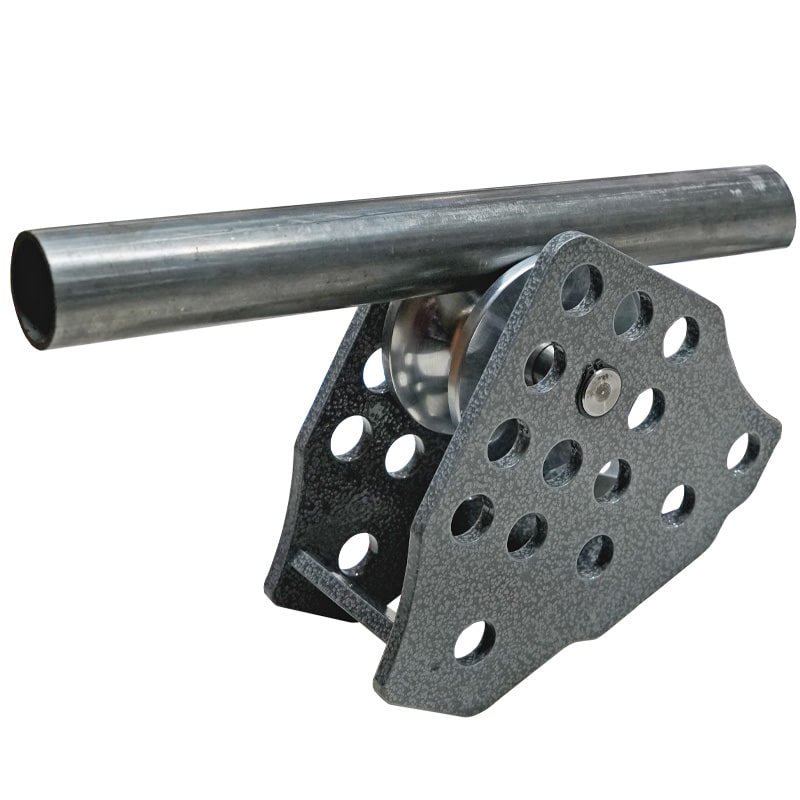

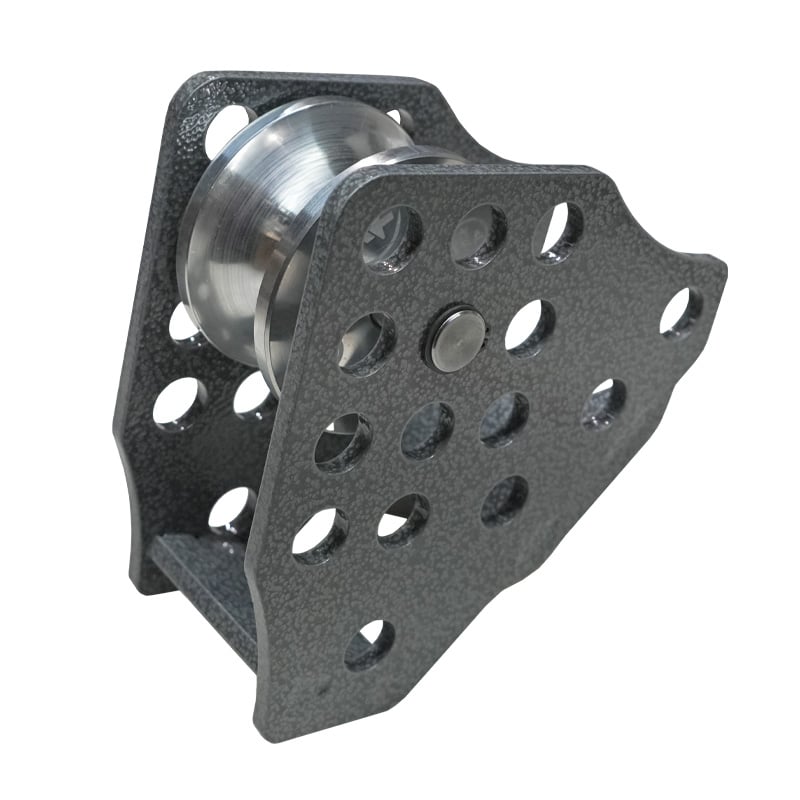

Bend Compactor – Less material to make bends!

Description

This is a limited-availability option for any M601/605/625 tubing bender. It allows you to put bends much closer together by moving the pressure die closer to the bending die. This increases the stress on the pins, so it is only recommended for thinner wall and smaller diameter applications. Good applications include 1.0 x .083, 3/4 x .065, etc.

Up to 1.375″ recommended without severe modifications.

to adapt the M600 tubing bender line to be more similar to a smaller diameter tubing bender. less straight tube and bends closer together.
