Does all the information here make your head spin?

Don’t worry. We provide you with the most reliable information available on bending tube, choosing materials, picking out die sizes, and understanding enough about the engineering behind tube bending and chassis fabrication and safety. Give this page a read and e mail us with any questions you have. Feel free to link to this page or any of our other tech pages as technical resources. We will not change the web addresses. Do not copy and paste the info or pictures from this site without providing a link to this page as credit for the source.

Tubing Bender Types

Before you buy a tubing bender, you should know what range of machines are made, and their relative costs. We do not want to sell you our excellet machine if it isn’t the right solution for your needs.

Rotary Draw Tubing Benders

Rotary draw tubing benders clamp the material at one end and draw it around a bending die while the other end is held from rotating by a pressure die. These benders are versatile and well suited for structural materials like those used for roll cages, bumpers, suspension components, chassis, boats, artwork, bicycles, motorcycles, side-by-sides, and hand railings. They make fixed radius bends, meaning they do not make long sweeping arcs. These machines range in price greatly, from around $700 to a several thousand. Photo Credit: Ercolina USA

Ram / Compression / Exhuast Benders

These benders press a center die into 2 pivoting shoes (or 2 wheels on really cheap examples). They indicate bend angle coarsely (if they indicate bend angle), and they are only suitable for thick walled soft pipe or exhaust pipe in some higher end machines. The exhaust pipe bent on this style of bender is deformed a significant amount in most cases and is suitable for most OEM or average and low performance applications. Fully tooled machines start at around $5k. The cheap “A-frame” bottle jack benders are a compression bender, but can’t do exhaust work, just plumbing pipe (and they’re real cheap, like $150). Ram exhuast benders like the one pictured are ideal and very common in muffler and exhaust shops doing repair work. Photo Credit: Bend Pak and Harbor Freight.

Mandrel Tube Bender

A mandrel bender is a rotary draw bender with the addition of a mandrel, which is a plug that goes inside the tubing while it is being bent. Mandrel benders can also have wiper dies, which prevent the ripple that forms at the beginning of a bend on thin walled tubing. Most mandrel benders are also fitted with electric/hydraulic power systems and automation or programmable features. They are usually over $100k, and typically have tooling that is much more expensive than other benders (one die/mandrel/wiper can easily cost over $2k). Most of these machines run on 3 phase power, and are heavy enough to require rigging for installation in a building. They do a fantastic job on a wide range of materials, and are ideal for high performance exhaust, plumbing (cooling or intercooler), and structural applications. They excel at thin wall bending. Photo Credit: bendtooling.com Machine credit: Pines Bending

Roll Benders / Rollers

Tubing Rollers make variable radius bends from giant radii down to about a 15 inch bend radius. They are used primarily for architectural work, but they are used in conjunction with a rotary draw tubing bender to work on various projects (think curved roofs, sweeping curve bow rails on boats, spiral staircases, and greenhouses. They range a lot in price from slow manual machines that can be had for slightly less than $1k to electric machines that can cost over $30k, like the one shown here. Photo Credit: Baileigh Industrial

Rogue Fab M600 Bender

The Rogue Fabrication Model 600 tubing bender is a rotary draw tubing bender, and is extremely versatile. This machine can be up and running in your shop bending tube for about $800 USD including shipping, hydraulics, and a 180 degree die. Unlike every other machine the M600 competes with, this machine can actually grow with your shop. You can upgrade the machine with faster hydraulics, an adjustable auto bend stop, specific pressure dies for unique bend geometry and specific materials, a thin wall attachment (TWA) and a backstop assembly for making repeat bend spacing. We’re developing an affordable mandrel attachment as well, further expanding the thin wall capacity and improving bend quality over other similar benders. There will never be a more affordable or more versatile machine to start your business with.

Three Tubing Bender Packages To Choose From



Tubing Bender M600 and 1 Die

This is the economical option. You can upgrade the frame to our thicker xHD frame (overkill unless you are bending 2.00 x .250 DOM!), chose the die you want, choose assembly if you want it to arrive ready for work, etc. You can also upgrade the die that comes with the machine to have pressure rollers, which makes the machine a little easier to use and more versatile, but is not needed for bending regular steel tube. This comes with everything you need except hydraulics. Add the economical air/hydraulic ram and you will be ready to bend tube with compressed air!

Tubing Bender M600 Tradesman Set

This is EXACTLY the same machine, except the tradesman set has 5 dies from 1″ to 2″ in 1/4″ increments. It includes the best bend radii for most projects. The only reason to get this package is if you need these 5 sizes (or something close, we allow substitutions), and you want to buy it all at once to save about $140.

Tubing Bender M600 Elite Packages

This is again the same bender as #1 and #2 above, and still available with many options. This time you are getting 11 die sizes and a cart with the machine. It also comes with hydraulics to power the machine, and an option to add our VersaNotcher tube cutting system. This is truly one-stop-shopping, and has a very generous discount built in, along with many accessories and consumables.

Options and Upgrades

Electric/Hydraulic power system

For around $2K, you can bolt on an industrial 250 volt 9.5 degree per second power system with automatic stops. Compatible with the M600/M600xHD.

Thin Wall Attachment (TWA)

This $375 subframe extends the thin wall capacity of any machine you add it to. It can be added later, so don’t worry about buying it with your initial bender purchase. It is compatible with both the M600 and the thick frame version, the M600 xHD. This is required to use a mandrel attachment.

Tube Rotation Gauges

These handy tools tell you when you are rotating the tubing in between bends, or possibly even more importantly – when you aren’t! They are cool, useful, and you can always buy them later. You don’t need them to tell you when you have bent a tube to 65 degrees, that is accomplished by the degree indicator that comes with every bender we sell, it is part of the frame.

Tradesman Cart

This is a nice roll around cart for the M600/M600xHD. Made right here in our shop from over 60 lbs of steel.

Elite Cart

This is a super-nice roll around cart for the M600/M600xHD. It is just like the tradesman, except it has more features like ball bearing slider drawers, more shelves, etc. Made right here in our shop from over 70 lbs of steel.

Future Upgrades

Mandrel attachment (for even thinner wall than the TWA), hydraulic clamping (can you say speed?), fancy die racks for carts (faster to access and use), DRO (digital read out) for bender, adjustable backstop for repeat parts. All these upgrades will bolt onto the current M600/M600xHD.

Help Choosing Dies

Our team has the experience to get you the right dies for the correct OD (outside diameter)with your tubing bender. Here is a few guidelines based on what you’re doing:

4x4 projects (rock bouncers, buggies, exo cages, in cab cages, Jeeps, Toyotas, etc): Go with a 1.75 (1 3/4) OD tube die. You will be using .120 wall, and it will look best on a 6″ CLR (bend radius) die, but can be done on a 4.5 CLR with more deformation.

NHRA/SFI cages: 1.625 (1 5/8) x .083 is the tubing most of the NHRA specs are based on, but you will have to get your rulebook to determine all the sizes you need. For example, the 25.3 SFI also uses 3/4″, 1″, 1 1/8″, 1 1/4″, and 1 1/2″. Get a 6.0 CLR for all sizes that you buy over 1.25 OD to be able to bend to the thin wall tubing used. Remember that the rule books list minimum wall thickness and minimum diameter, you can always go bigger and thicker and pass an inspection, which can allow you to buy fewer dies to complete a project. The NHRA handbook covers cars 8.50 second ET (elapsed time) in the 1/4 mile and slower, and that is free from NHRA online. Faster cars are covered by the SFI foundation, and the specs are not free (you can purchase them from SFI).

SCCA/NASA/autocross/rallycross/Pro Touring/Road Racing cages: SCCA/NASA specs vary widely based on racing class and car weight, with 1.625 (1 5/8″) OD tubing being the most common. Some cars are allowed 1.5 (1 1/2) OD, and some require 1.75 (1 3/4) OD. The specs are available on the SCCA and NASA web pages for free. Follow the same CLR guidelines as NHRA/SFI above.

SCORE offroad (Ultra4, Trophy Trucks, Baja 500/1000, other racing series): Go to the SCORE web page for more info. As of 6/5/17, cars over 4400 lbs race wieght has to use 2.00″ OD tubing and .120″ wall minimum for the primary cage structure. We only offer 2 inch dies on a 6 inch radius, which will bend .120″ wall.

Sand Cars (sand rails, dune buggies, etc): These are not generally regulated in any way. We have a calculator for tubing that can help you compare materials, and keep in mind this is your safety on the line. Light is fast, and light and fast can be dangerous. These projects vary from lightweight VW powered machines to 1000+ horsepower LS powered cars. On the small side for lighter and slower projects, 1.5 x .095 may be enough (use a 1.5 OD x 6 CLR die). On heavier and faster projects, 1.75 x .095 is a good material to consider (1.75 OD x 6 CLR die). Save weight on shorter support tubes by buying a second and third die, dropping 1/4″ and 1/2″ off your primary tube size. Recommended dies are 1.5 OD x 6 CLR, 1.25 x 4.5 CLR, and 1.0 x 3.5 CLR.

Side by Sides, SXS, RZR, etc: We recommend using the same OD that was stock on your side by side so that the cage can use all the bolt on stuff that came with it (mirrors, belt mounts, fire extinguisher, lights, etc). This is 1.75 OD for nearly all side by sides, with the exception of the Can-Am Maverick, which is 2.0 OD. We recommend a 6.0 CLR die for both of these materials. Popular support size is 1.25 OD and we recommend a 4.5 CLR die for this application.

Other Cars: If your build is recreational (not covered elsewhere in this section), we recommend 1.75 OD for cars over 3500 lbs, 1.625 (1 5/8″) for cars over 3000-3499 lbs, and 1.50 OD tubing for cars under 3000 lbs. We are not liable for decisions you make on your build. This is just a guideline to help you learn. Wall thicknesses vary, and are common in .120 and .095, and sometimes include .083 (.083 is usually 4130 alloy). Please keep in mind that cages and helmets usually go together, and you will want to pay attention to how far you’re putting metal from the driver’s head and how you plan to prevent a head injury if the driver will not always be wearing a helmet.

JEEP Wrangler (TJ/LJ/JK): Most of our customers use 1.75x.120 wall, your choice on a 4.5 or 6.0 CLR die. The OEM cage on the TJ/LJ is 2.125 (2 1/8″) OD. Jeep used this large OD in an attempt to compensate for the severe lack of tubing and triangulation present on the stock cage, as well as all the unsupported bends. The stock roll cage is woefully inadequate in many offroad rollover situations, but can be heavily reinforced/reconstucted to be safe if done right.

Hand Railings: 1 1/4″ schedule 40 pipe is the most common material, in steel, stainless, or aluminum. This comfortable size meets construction codes in most areas and is very inexpensive. You can use a 4.5 or 6.0 CLR die. This material is 1.66 OD.

Boat work: Sport boats have wake towers built out of 1.50 pipe (1.90 material… pipe, not tube) most of the time. Aluminum is the material of choice. Get yourself a 1.90 x 6 CLR die from our range of pipe dies, and get pressure rollers or UHMW pressure dies so you can bend aluminum. Fishing boats and other pleasure boats frequently have rocket launchers, fishing pole racks, bimini and bikini tops, T tops, etc. These can be made out of anything, but 1 1/4 aluminum pipe is the most common, since it is affordable and won’t rust. That material is 1.66 OD and is best bent on a 6.0 CLR die. Yachts are a little more common to use stainless over aluminum, usually 316L alloy. Pick a big radius for your die when bending stainless (the biggest we sell for your OD). Engine room and bow railings and other railings for human safety and comfort are commonly made from 1.25 OD .065 wall tubing, which bends beautifully on our 1.25 OD x 6 CLR die. 1 inch .065 is used on these craft as well, and it bends great on our 1.0 OD x 4.5 CLR die.

Model 600 Bender Operation

We have had many customers learn how to bend tube on our bender by themselves with no prior bending experience. Our goal with the M600 Tubing Bender was to make fabrication more affordable, and also have a simple to use machine that won’t hold back advanced fabricators. Our customers agree that we have met these goals! Operating our machine is easy:

1. Insert tube in machine, tighten bolts to clamp tube. Hook up machine to compressed air source.

2. Open valve (like flipping a switch).

3. Machine bends tube up to 96 degrees, at which point you release the valve to stop.

4. Remove pin from ram end, allow springs to return ram to closed position, and re-insert pin in next hole for the ram.

5. Go back to step 2 (using the next holes) to bend to 145 degrees. A third cycle will take you beyond 180 degrees.

Although not a video of typical use, this video does show how the machine operates. It is a video of us bending some really heavy wall tubing and some solid bar. We have a bunch more videos, just click on “videos” in the menu at the top of this screen.

Tube? Pipe? Huh?

You may have noticed we have tube, pipe, and square tube dies. Tube and pipe are not the same, here are the basic differences…

PIPE

PIPE is a vessel, intended to carry fluids like natural gas or water. They are rated for pressure, not bending strength. Pipe measurements are based on the inside diameter (ID), not the outside diameter (OD). The pipe measurement schedule has evolved and sizes no longer match ID or OD. For any pipe size, you must look up the diameters on a pipe schedule to find out the OD and ID. For any nominal pipe size, the OD will be constant when you change wall thickness. So a 1.25″ schedule 40 pipe is 1.660″ OD with a .140″ wall. A 1.25″ schedule 80 pipe is 1.660″ OD with a .191″ wall. Pipe is generally less expensive and weaker than tube of a similar size.

TUBE

TUBE is a structural member and it is rated for strength. They are sized based on OD, and they are consistent. A 1.5″ .120 wall tube” is actually 1.500″ OD and has a wall thickness of .120″. Tube is more expensive than pipe and has significantly better material properties. We recommend tube for all applications, but understand that sometimes pipe is convenient, functional, and safe. That is why we make dies for both!

We have recommended wall thickness ranges for all of our dies. We ONLY test DOM steel, in 1020 alloy on our tube dies. We ONLY test ASTM A-513 Grade B pipe in our pipe dies. We do not recommended you ever buy the cheapest material you can find and expect it to bend as well as DOM steel. DOM is coontrolled tightly in terms of metallurgy, tensile strength, and dimensions. We could test lower grades of material, but due to the high variability of those materials, the test would not prove much. For these reasons, we gurantee our machine on DOM and A513 Pipe only, and we will happily work with our customers who are having issues with any other material. Just please keep in mind that you may need to be flexible on what radius or wall thickness you chose if you are bending a material that is not DOM. For all of these reasons, we are happy to offer to material test bending service (see products/tubing benders).

What is CLR?

CLR



CLR stands for Center Line Radius. It is the industry accepted method for measuring the size of a bend. An example of a small CLR is pipe fittings for plumbing. A large CLR example is the large hoop that makes the outside of a trampoline frame. CLR is measured from the center of a bend to the center of the tube or pipe being bent. Look at the image below for clarification. The 4.625 measurement is the inside radius, and the 6.375 is the nominal outside radius. You can see that the outside radius is actually outside the tube in this drawing. The outside of the tube will naturally pull inward a slight amount from the tension caused by bending without a mandrel inside the tube.

Tube Tech



Tube Collapse and FEA analysis

By Rogue Fabrication, LLC, www.Roguefab.com

This question has been asked a few times: “Does 1.75x.120 collapse at all when bent on a 4.5 inch radius?” The short answer is yes. All tube collapses (pulls in the outside of the bend) to some degree on EVERY bender. Even with mandrels you will have SOME collapsing.



This answer leads to two more questions: How much does the tube collapse or pull in? What is the effect on strength? The short answer: it will collapse 4-10% on a 90+ degree bend, and there will not be any notable effect on strength.



Read on to see how we came to these conclusions…

Part 1:How much does the tube collapse?

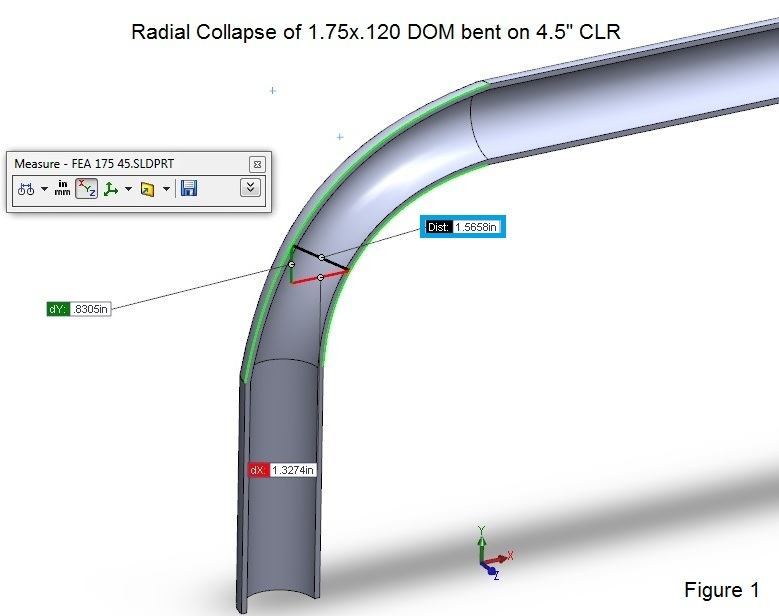

A 90 degree bend in 1020 DOM steel tube (1.75x.120) bent on a 4.5” CLR die loses about 10% of its axial cross section diameter (figure 1). If we consider this to be the “height” of the tube, then its “width” gains a couple percent. DOM steel doesn’t like to stretch, so this is the only place for the material to go when it doesn’t want to get thinner. Similarly, the same material bent to 90 degrees on a 5.5” centerline loses about 5% of its axial cross section diameter (figure 2). The “width” again increases by about a percent. These are actual measurements taken from tube bent on a 4.5” and 5.5” CLR die. These results aren’t surprising, we all know tube forms better at larger radii, but most of us aren’t going to roll bend an interior cage or a stinger, so we need to know if this has any effect on strength.

Part 2: Does it matter for strength?

There are two ways to figure this out: roll a truck with a cage built from each bend radius and accept all the variability in your testing… Or use finite element analysis to simulate loading and calculate stress. We chose to use FEA. We modeled two bent tubes, both spanning 10.375” in height and 21.75” in length. Both tubes were modeled with true “collapsed” geometry, using the physical measurements taken from actual bent tube. Both tubes were loaded the same, 6500 pounds applied to quarter sized areas. We ran the test on the bend and on the straight part of each tube. In this test, both ends of the tube are assumed to be completely welded to another fixed member. This load is a static load, and is comparable to balancing a very heavy fully loaded rig on a small rock that doesn’t crumble.

Brief Glossary:

• Yield: Refers to yield strength, the stress level where a material will bend and not bend back. In the SolidWorks 2012 materials database, this property is 51 Ksi for 1020 steel. It may be different depending on material source and processing.

• Tensile strength: Refers to ultimate strength, the stress level where a material will deform undesirably beyond typical yield. In the SolidWorks 2012 materials database, this property is 61 Ksi for 1020 steel. It may be different depending on material source and processing.

• DOM: Drawn over mandrel. Non welded tube, stronger than HREW tube, and usually 1020 or similar steel.

• Ksi: Kilipound per square inch. That right, scientists blended imperial and metric. 1000PSI = 1KSI.

Test 1: 4.5” CLR bend, 1.75x.120 1020 DOM, load on the outside of the bend.

The arrow on the stress scale indicates where the yield is for the material (point when the material bends and doesn’t come back). Anything in the red indicates material failure. Assuming the rock actually stays intact, it looks like the rock would dent the tube in the green area, and possibly cause a small fracture where the red is in the center (about the size of a dime). In reality the load would spread out as the dent formed or as rocks/dirt/sand/etc moved, and the outcome would be a small/shallow dent and nothing more. The top of the stress scale shows the max being 89.8 Ksi, but as stated, this local result (the red spot) is not representative of a real life situation. This stress also exceeds the tensile strength of 1020 steel, making the max even less relevant to this study. What is significant here is that the tube doesn’t bend, we would just see local deformation (a dent) See figure 3.

Test 2: 4.5” CLR bend, 1.75x.120 1020 DOM, load on the straight portion.

This test shows more stress in more areas. We have yielding near the welded joint on the right, and a larger dent likely to form in the tube where the load is applied. If there was movement involved, this would probably bend the tube in the straight section right where the load is. The stress in the bend area is significant, although the material isn’t close to yielding in that area. This time the top of the stress scale shows the max being 131.4 Ksi, but again, this local result (the red spot) is just where a dent would form. The overall structure would not likely bend. See figure 4 below.

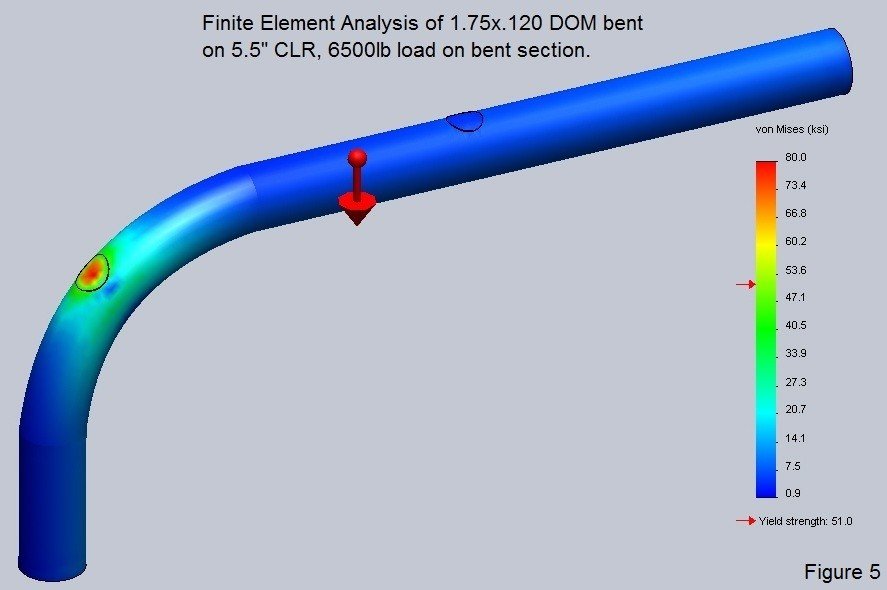

Test 3: 5.5” CLR bend, 1.75x.120 1020 DOM, load on the outside of the bend.

This is the same as test 1, but with the larger radius bend. The max stress is 9.8 Ksi lower at the absolute peak, but still far in excess of the yield strength of the material. This would again result in a small dent, but no bend. See figure 5.

Test 4: 5.5” CLR bend, 1.75x.120 1020 DOM, load on the straight portion.

This simulation is essentially the same as test 2, but with the larger 5.5″ bend radius. See figure 6 below. The max stress is 6.3 Ksi lower (about 2% less than with the 4.5 CLR bend), and would again cause a dent to form in the tube. in this scale, the yield arrow (little red arrow by the color scale) is in the lime green color. All of that area is at risk of bending permanently, just like in test 2 on the tighter CLR. The loading in test 3 and 4 on the straight portion is a much higher stress simulation than test 1 and 2, as the peak stress numbers show.

To summarize the test, both bend radii produce structures of similar strength when using the same material. The difference in “collapse” between the two is notable at 5%. Most people can see that a tube is flattening to some degree when the collapse percentage is at or above 5%, so most people will be able to see the collapse on tube bent on either radius if they are specifically looking for it. When shopping around for a bender and dies, this is something to take into consideration. Smaller dies fit vehicle bodies and interior cages better in some cases, but they make it easier to spot the inevitable deformation that tube bending produces. Tighter bends will allow for narrower shock hoops, more headroom with an in-cab cage installed, and better looking wrap-around bumpers that require less body cutting.
