Configure Your Custom Bender Cart



Customize The Options To Get The Perfect Tool For Your Needs

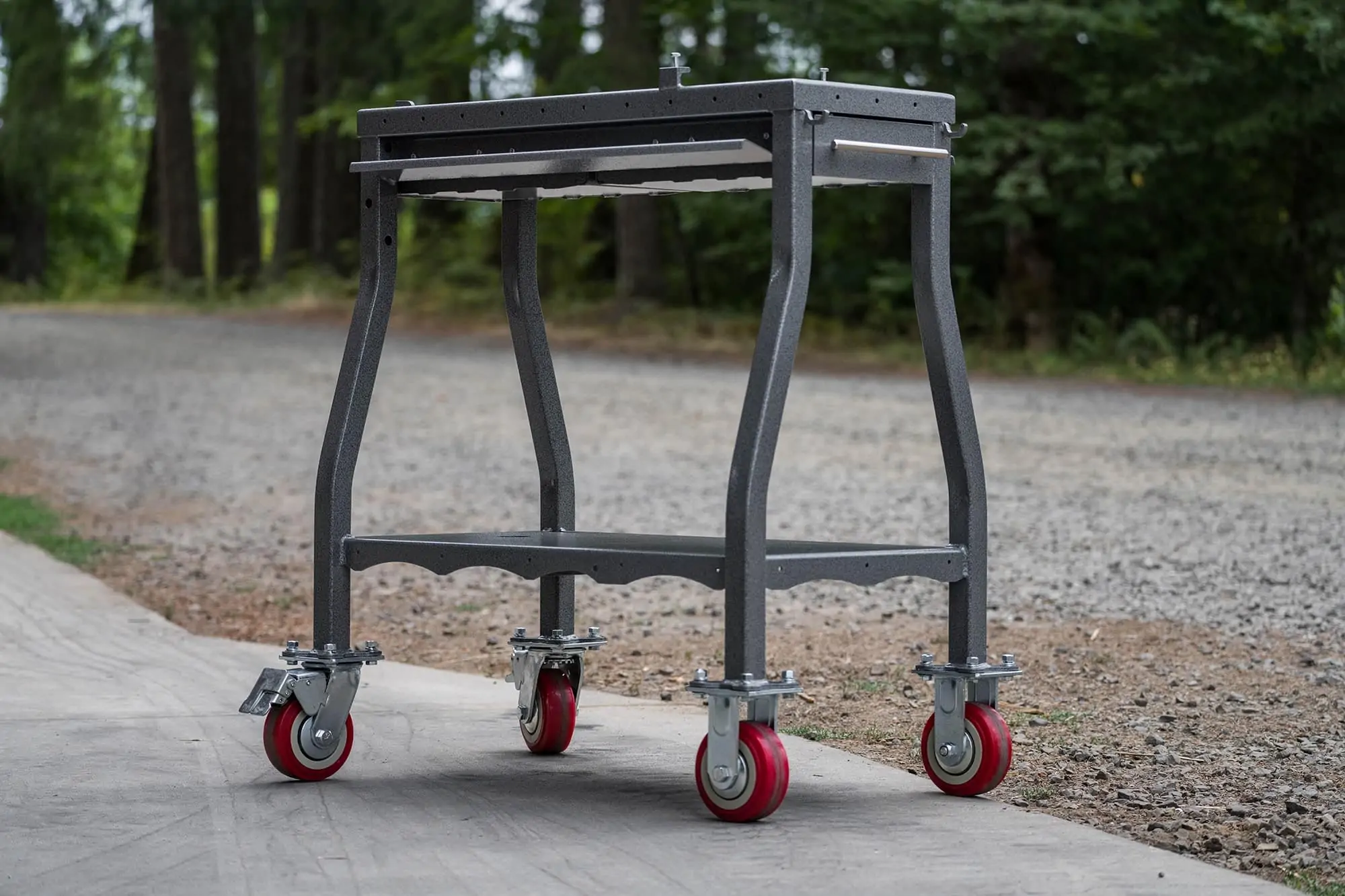

These are awesome carts for our tubing benders. The elite model comes fully welded and powder coated (or as an affordable, ground-shipping eligible weld-together kit), and loaded with excellent features like:

-Heavy duty ball bearing drawer slides with automatic spring closures
-Ultra Heavy duty ball bearing casters with locking 5″ wheels, and pivot locks. These are nicer than the casters on $3K tool boxes.
-Heavy steel construction (these weigh about 100#! without any racks added)
-Massive 1200#+load capacity
-Dual drawers for storage, rated at 100# each
-Hooks for wrenches (3)
-2 die block shelves
-locks and clamps to secure bender
-Precision lower shelf if laser cut from P&O steel and formed on a CNC press brake
-Every part is made in the USA except the nuts/bolts/wheels. Even the drawer slides are made here!

Weld Together Kit: This cart requires welding, assembly and paint/powder coat. These ship ground (affordably).

Welded/Powder Coat (Hammer Grey/Black): This is our cart welded and powder coated. Just mount the casters and you are ready to go. Powder coated carts ship via FREIGHT. These are too large to ship in a box. Our cart should automatically ship your whole order via freight once you add this while you’re shopping.

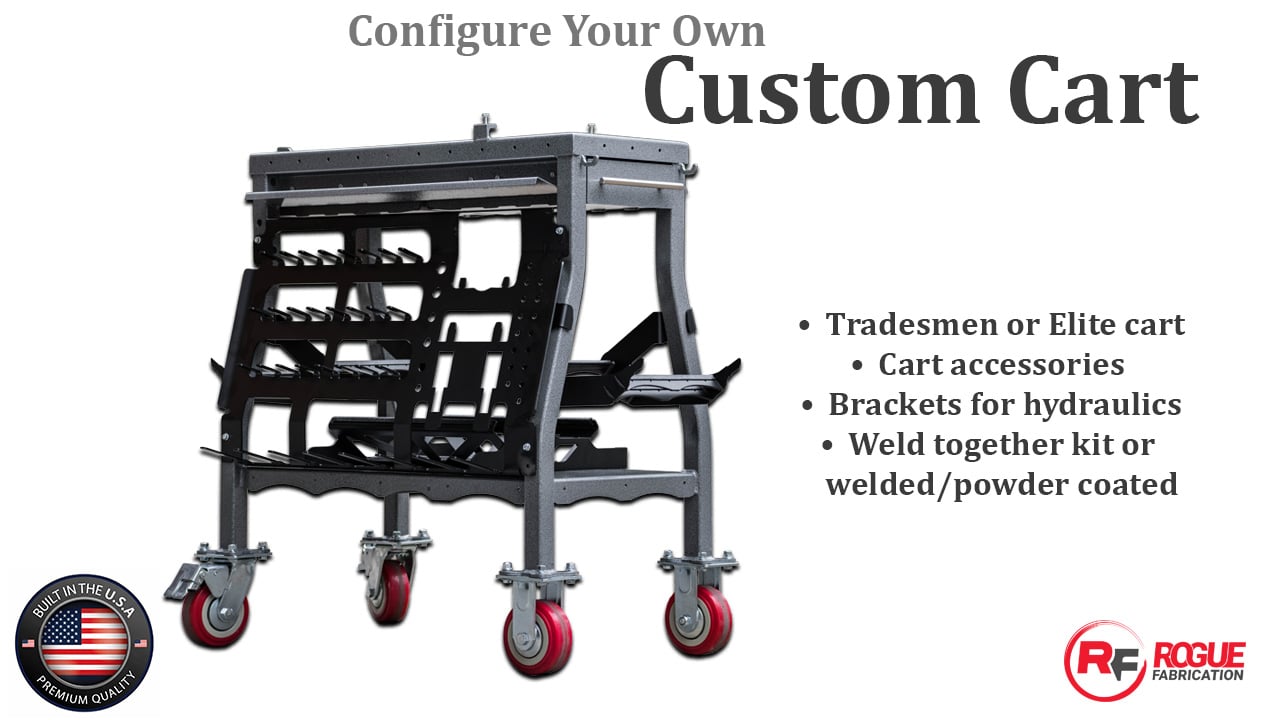

Cart Accessories: We offer a variety of racks and mounts for storing dies, clamp blocks, extra tools, and mounting notchers. Select your desired extra storage, or leave quantities at 0 if you want a bare cart. Selecting all accessories will grant 7% off off your cart purchase

Cart Brackets for Electric/Hydraulic Pumps: Brackets to mount our 1.5 HP or 2 HP pumps to the bottom of your cart.

Machine Dimensions:

M6xx tubing bender: (assembled, ready to bend): 12”x30” floor footprint. Overall dimensions 12”x47”x32” (LxWxH). Weight 140-200 lbs.

M6xx Bender on Cart: 22”x34” floor footprint. Overall dimensions 22”x47”x68” (LxWxH). Weight 210+ lbs (depends on cart contents).


Dimensions on cart – ELITE shown
