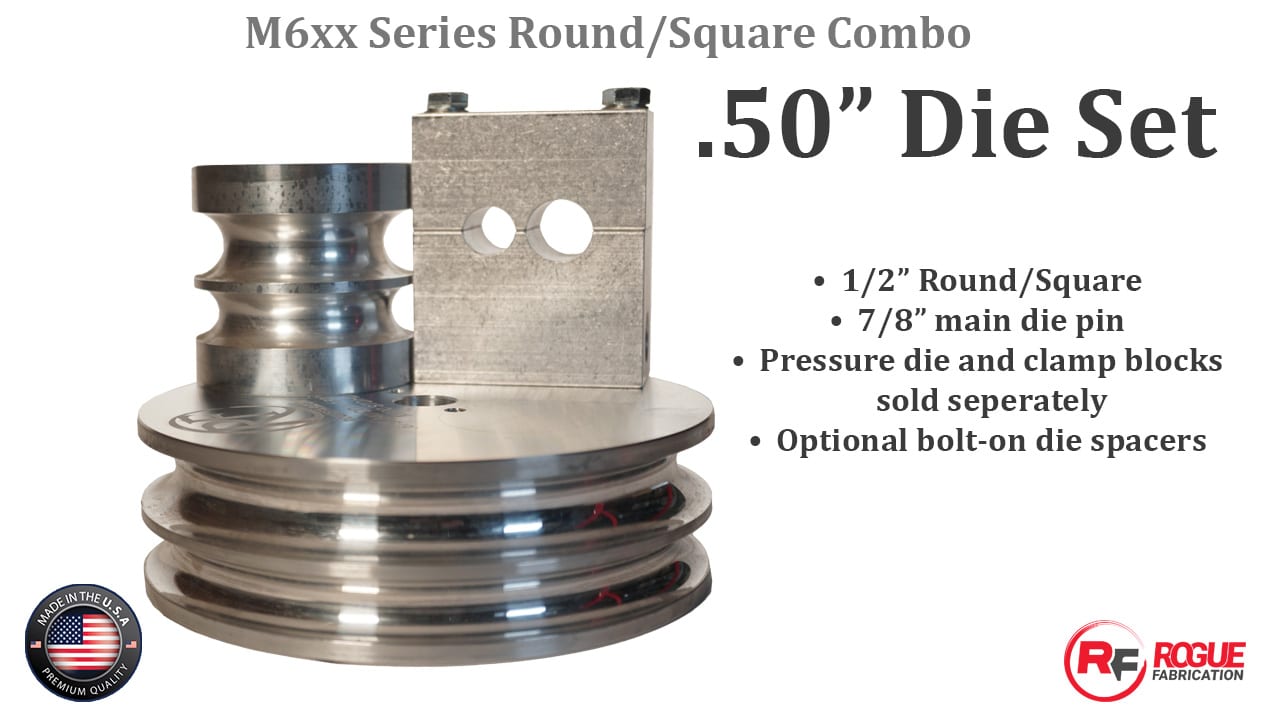

.50″ (1/2″) Round/Square Tube Die Bundle (7/8 Pin)

From: $265.00
Some of our benders use a 3/4 pin through the main die, while others use a 7/8 pin. You can easily measure this with calipers. All machines sold 2023 and later will use the 7/8″ pins. For a complete range of wall thickness this die can bend, please visit our Wall Thickness Chart (LINK) and you will find the capacity for stainless, carbon steel (1020/4130/etc), and aluminum. All of our dies carry a lifetime warranty against breakage and can bend 195 degrees. Standard Pressure dies cannot be used with aluminum Pressure Roller Die upgrade- Speeds up loading the machine and also reduces friction on the dies, making lubrication unnecessary and also potentially improving bend quality slightly. They are great for STEEL, ALUMINUM, and STAINLESS. They also allow you to pull bends up to 20+ degrees through them to make “S” bends and bends very close together if you’re careful. UHMW Pressure die- Ultra High Molecular Weight plastic pressure die, these are great for protecting the finish on high polished aluminum or stainless steel
Category:
  • Weight:

    14 lbs

  • Dimensions:

    11 × 11 × 2 in

BUILD IT YOUR WAY

Customize The Options To Get The Perfect Tool For Your Needs

Die Options

Die Options

7/8" (all 2023+ machines)

How many clamp blocks do you want?

How many clamp blocks do you want?

Two clamps are recommended for co-planar bends
...

Choose pressure die type

Choose pressure die type

Two pressure dies are required for HD applications
...

M600 Bolt-On Die Spacers

M600 Bolt-On Die Spacers

.236 (dies: 1.5 PIPE, 1.5 square, 3/4&7/8, 1/2" combo), pipe combo

Description

Some of our benders use a 3/4 pin through the main die, while others use a 7/8 pin. You can easily measure this with calipers. All machines sold 2023 and later will use the 7/8″ pins. If you have a 3/4″ main die pin, click HERE for press in 3/4″ bushings

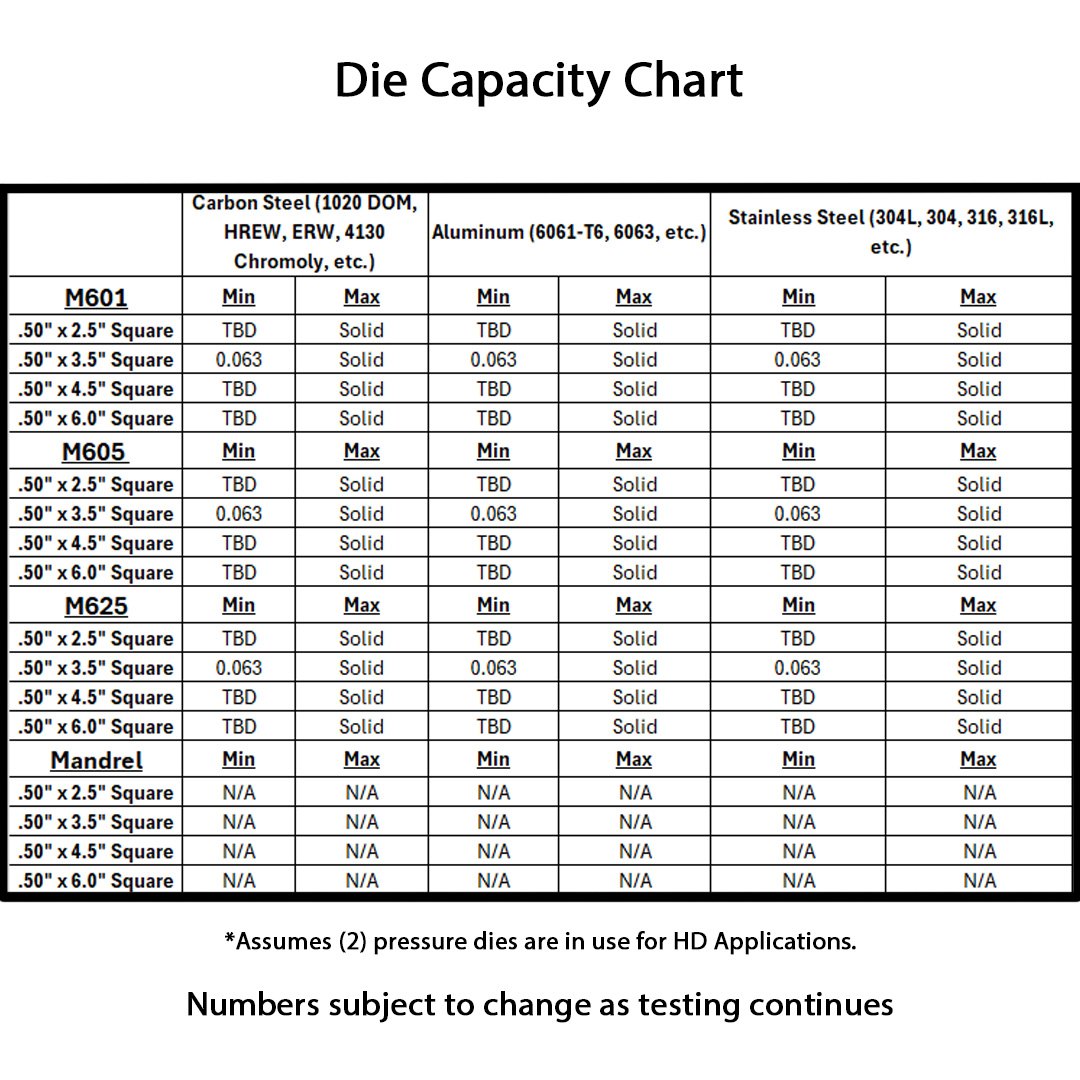

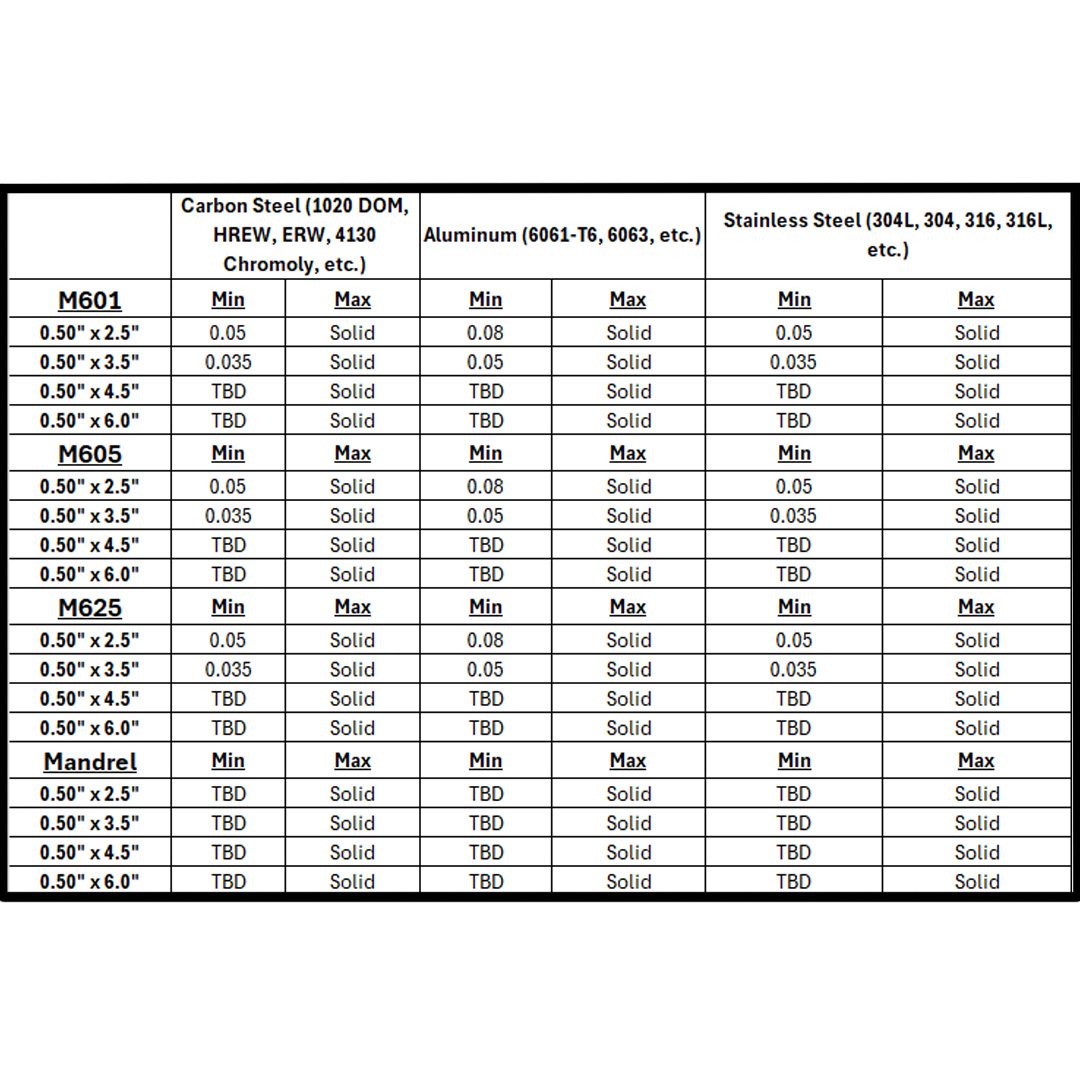

For a complete range of wall thickness this die can bend, please visit our Wall Thickness Chart (LINK) and you will find the capacity for stainless, carbon steel (1020/4130/etc), and aluminum. All of our dies carry a lifetime warranty against breakage and can bend 195 degrees.

Pressure Roller Die upgrade- Speeds up loading the machine and also reduces friction on the dies, making lubrication unnecessary and also potentially improving bend quality slightly. They are great for STEEL, ALUMINUM, and STAINLESS. They also allow you to pull bends up to 20+ degrees through them to make “S” bends and bends very close together if you’re careful. Not available for all sizes.

NOTE: When you order a die from Rogue Fabrication, it comes with a clamp block and a pressure die. You can buy additional pressure dies (for capacity to match your 605 or 625 bender) or additional clamp blocks (for several reasons, see clamp block listing for details) separately if you want more. Also, dies 1.50″ OD and under that are on a 6.0″ centerline bending radius will be limited on travel by a few degrees per stroke due to space limitations. No other dies are affected.
