Air/Hydraulic Cylinder for M601-M625 Bender (NT / Rogue / HF – Read Description*)

(1 customer review)

$249.00

SKU: 2122 Category:

Description

*Disclaimer: There are major nationwide supply chain problems with all hydraulics. Many suppliers who have stocked these for over a decade have been without them for more than a year. We have only had 2 short interruptions in our continuous supply of hydraulic cylinders, but it has not been without challenges. We have had many cylinders show up with ugly paint, paint over surface rust on oil reservoir tubes, or show up leaking in need of seal replacements. These are all 100% new products. After we replace seals, repaint, or at the very least inspect and re-package these hydraulics, they WILL ALL have evidence of handling or visual defects. If you order this product, you are accepting that visual condition.*

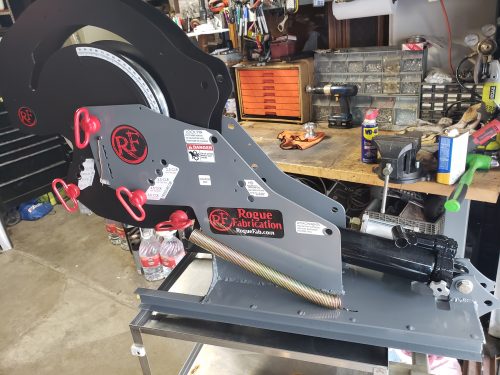

This is the least expensive of the 2 ways you can power a model 600 series tubing bender. This is an air/hydraulic ram (It takes in compressed air and uses a small pump to convert that energy to high pressure hydraulic flow to power the cylinder). This is ready to use right out of the box. They ship assembled with air pump and hose. This cylinder is power extend ONLY. Our M600 bender includes a custom bracket and custom CNC-wound zinc plated ASTM PW steel return springs for reliable return of this exact cylinder. When we sell these cylinders, we check the oil lever and top them off as needed, make sure they don’t leak, verify that the return force is within our specifications, and then we also add our CNC machined release knob to the hydraulic valve. All the parts we make the attach to this cylinder are made here in the USA.

We have 3 suppliers for these cylinders. You will get one of them. They are as follows:

  1. Northern Tool, PN 46200. NOTE- These are RED. These are the ones we are shipping starting in September 2020. We are quality inspecting them at 100%. These cylinders are 24.95″ eye-to-eye when collapsed. This is the ABSOLUTE longest cylinder that will fit in the machine. They extend 19″ (travel), and that is more than necessary.
  2. Harbor Freight PN 56215 (RED, currently available in-store-only in somewhat limited numbers) or 94562 (ORANGE, No longer in production, identical to 56215 other than packaging and paint color). Our photo shows the orange one. These cylinders have had a few slight changes over the years and have been available with slight interruptions for over a decade. These cylinders have 24 3/4″ collapsed length (eye-to-eye) and 19.25″ travel, which is an ideal match for our machinery.
  3. Rogue Fab imported PN 1194 (BLACK or RED). This company does not sell to the public. These are made for us overseas. We will always have these in our supply chain, although import practices can cause interruptions in stock levels (backorders). The length and travel on these cylinders matches the Harbor Freight cylinders. Some times we have to work on these cylinders and the paint gets chipped on them in the areas we make adjustments or changes. We know this is not ideal. Please understand that the paint may not be as nice as other parts of the machine.

Important note – This is the only major component of the M600 series bender that is imported. If you want a high quality, custom hydraulic solution to go with your bender, we offer (2) different electric/hydraulic power systems that are excellent (both feature Made-in-USA cylinders). If you wish to buy the hydraulic cylinder yourself to save money, we absolutely encourage you to buy of the cylinders listed here directly from the distributors we purchase them from (that is precisely why we told you who sells them and the correct part number). If you are bargain shopping for a cylinder not listed above, keep in mind that the mounting holes on our machine are 5/8″ diameter. Also know that the Northern Tool cylinder is the longest one that will fit. Our return spring bracket is designed to clamp on ONLY 33mm hydraulic shafts. If you purchase a hydraulic cylinder with a smaller hydraulic shaft, it may not be able to utilize our spring return system.

Air requirements – These cylinders all consume about 6 CFM of compressed air at 110 psi while operating. They will run at lower pressures and make less force, and they will run at lower CFM and run slower. We recommend a 6+ CFM air compressor that can make 125 psi (set to 115-120). A 30+ gallon tank is recommended, but again, smaller will work (it will just cycle a lot more). We also recommend an “iron front” and oiled compressor. The new “oiless” ones are not reliable long term in our opinion.
