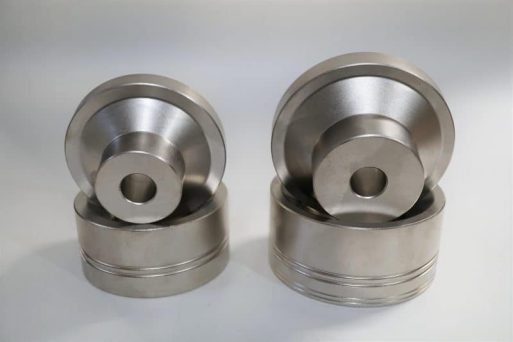

Round Dimple Die Set – Quick ID


(1 customer review)
SKU: S-110 Category:
  • Weight:

    28 lbs

  • Dimensions:

    4 × 4 × 11 in

  • Dimple Die Set:

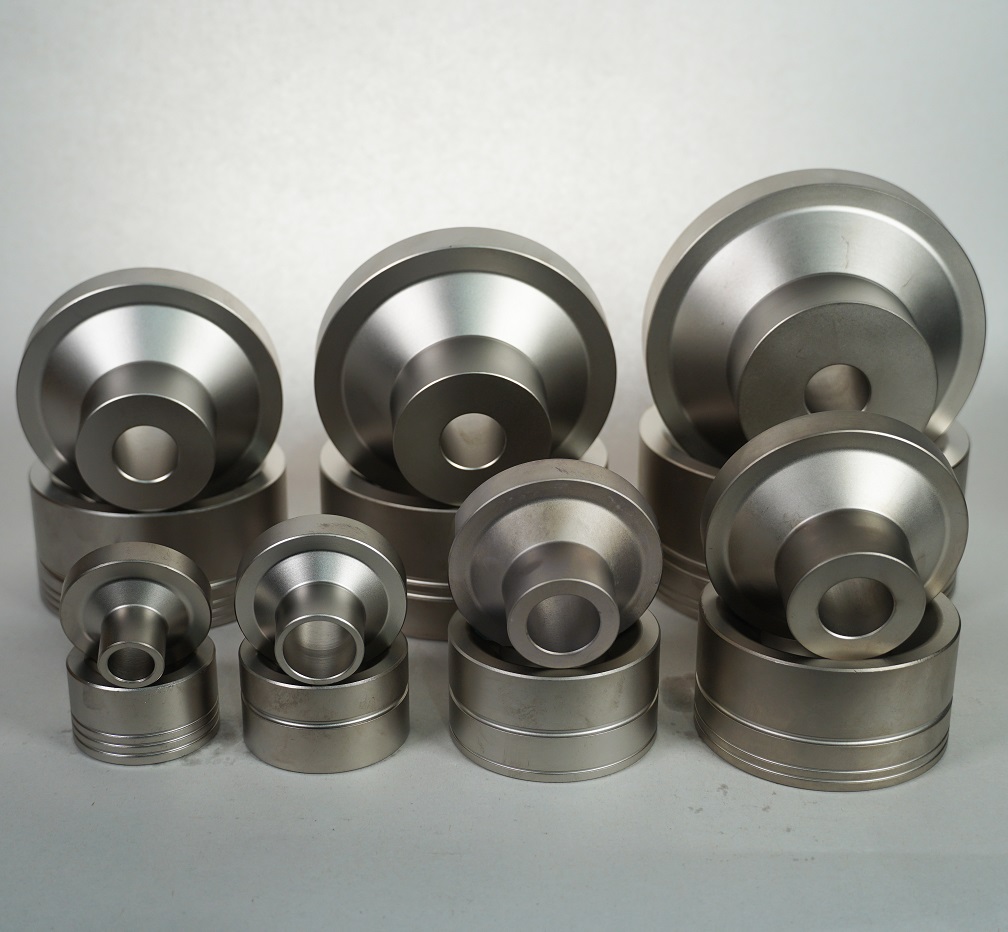

    2 Piece (.75, 1.0), 2 Piece (2.00, 2.50), 3 Piece ( 1.25, 1.50, 1.75), Complete Set (all sizes)


Customize The Options To Get The Perfect Tool For Your Needs

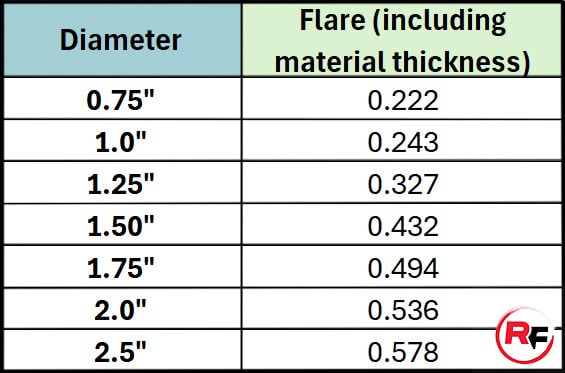

Sizes: .75, 1.0, 1.25, 1.50, 1.75, 2.00, 2.50 (or if you prefer fractions, 3/4, 1, 1 1/4, 1 1/2, 1 3/4, 2, 2 1/2)

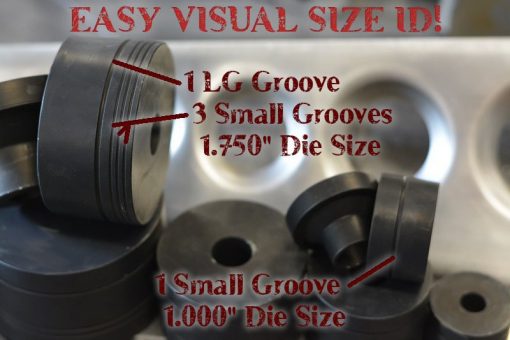

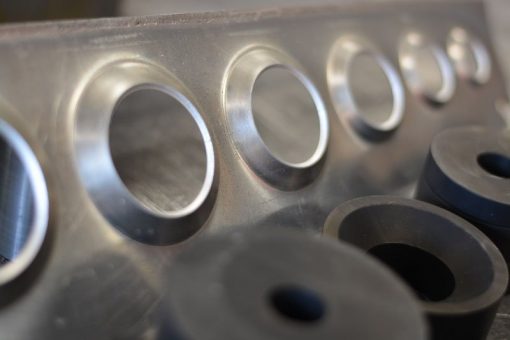

Quick ID has a wide groove for every inch and a narrow groove for every 1/4″, so a die with one of each groove is 1″ + 1/4″, so 1 1/4″. A die with 2 of each groove is 2* 1″ plus 2* 1/4″, so 2 1/2″. Now you can finally stop putting a tape measure on your dimple dies or writing on them!

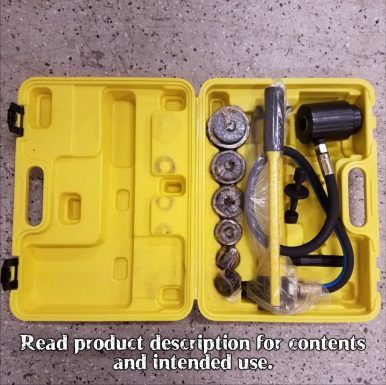

How to use: Cut your hole out with a hole saw or any other method of your choice. Use a bolt, H frame press, or knockout driver to dimple the hole with these dies.

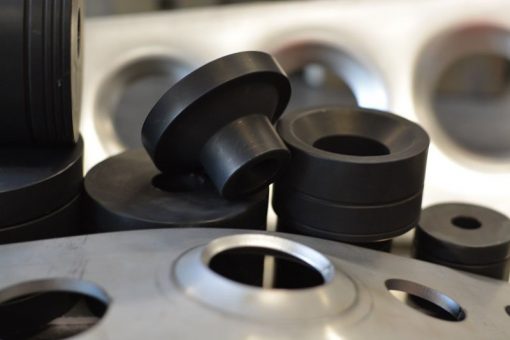

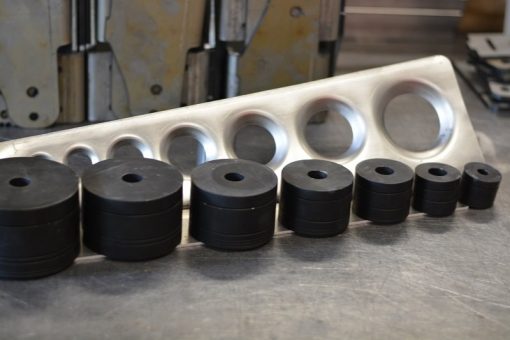

These are CNC machined in the US out of 4140 Chromoly that is made and heat treated here is the US. Max capacity 3/16 inch plate steel. We know these aren’t the cheapest set, but they are the best! The coating on these dies is a high performance NICKEL for reduced friction. The prototype set in some of the photos is black zinc. It is not intended to be a cosmetically perfect coating, but it is a good rust preventative for industrial applications like dies.

These are in stock and ship next day in most cases when ordered by themselves.

1 review for Round Dimple Die Set – Quick ID

    F19b8b04 117c 45ef 9b30 B1b66a0b9d10
    B884a923 A4cc 4ae2 B3d3 F7fdb4490a4e
    F19b8b04 117c 45ef 9b30 B1b66a0b9d10
    Scott E
    Got the small set for a few project. Did great on my pullpal blade. Stronger than cast press plate. Roguefab 1, Harborfrieght 0
