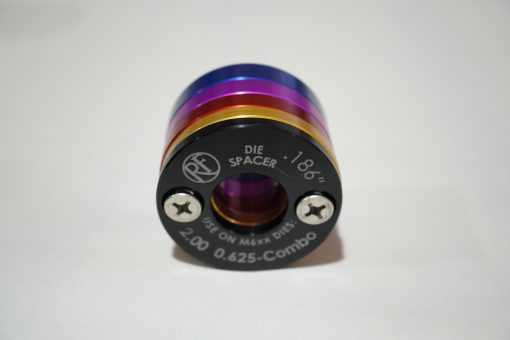

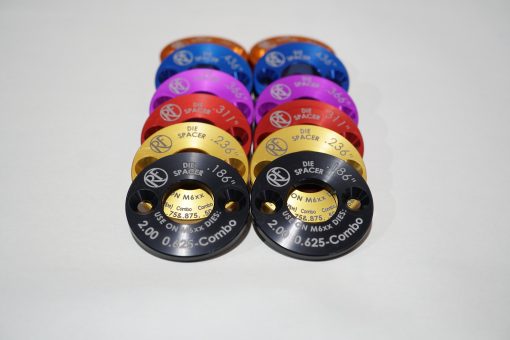

M600 Bolt-On Die Spacers


(7 customer reviews)


Customize The Options To Get The Perfect Tool For Your Needs

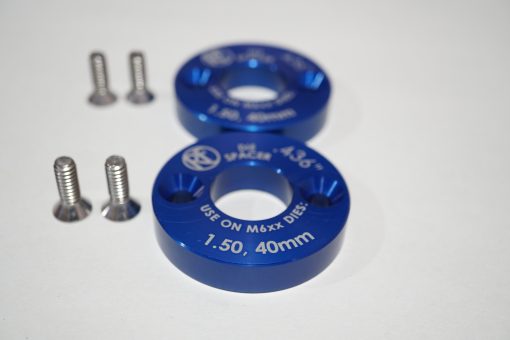

Sold as a PAIR. With Stainless steel mounting hardware.

Many of our customers have requested a solution to eliminate the washers from the machine. We finally came out with a simple solution that doesn’t require you to buy new dies and waste all the material to make the dies all full machine width (which could triple the cost of some dies). The spacers, drill guides, TiCN coated taps, and the serviceable drill guide bushings are all precision CNC machined in the USA from material produced here in the USA!

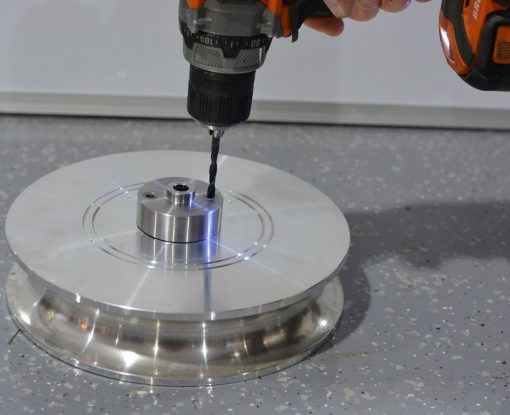

Installation is EASY. Just drop the drill guide into the pin bore of your die, and drill both holes 1/4″ deeper than your screws will go into the die. Then remove the drill guide, tap both holes with a cordless drill (it takes about 5 seconds per hole), blow chips out with a compressor, and screw the spacer on. repeat on the back side to make it match. You’re done!

We recommend test fitting the spacer with your machine/die before installing it onto your die.

TIP 1: Our HD kit includes the spring for the main axle that keeps everything nice and snug. This is a great upgrade to go with your die spacers if you don’t have it already.

TIP 2: USE CUTTING OIL! We recommend and sell Tap Magic for use when drilling and tapping aluminum (See the “VersaNotcher” section of our store).

7 reviews for M600 Bolt-On Die Spacers

    The drill guide and tap set makes install easy! The spacers are a nice upgrade!

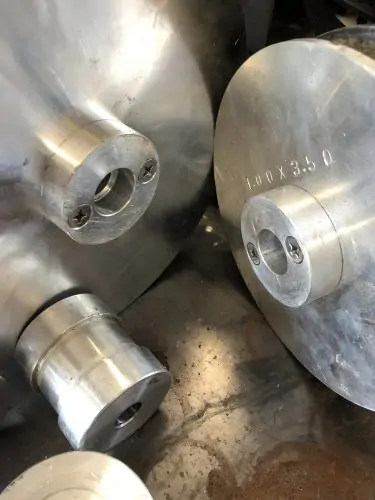

    Makes die changes much easier. No longer need to stack washers on the die pin while trying to thread the die pin into the die.
    61d5233b 1fb5 4a3d 8f50 2a821de42202
    Dustin DePriest
    These bolt on spacers are so great that all the dies some come standard with them. 4 stars because they aren’t standard. But 5 stars cause it’s hella better than the washers
    Steven Stafford
    These really are handy when changing dies a lot. It really cleans up this process!
    Tyler Robinson
    These are awesome!! Also, mine arrived already drilled and tapped as I ordered them with my tubing bender and dies.
    Rob Vince
    Replacing the spacer washers with these spacers is simply brilliant, so much easier to change out the dies now. Would definitely recommend.
    Matt J Rousseau
    Easy to do !! Drill with no.7 drill to depth and tap. Sure beats trying to installing washers!
