VersaNotcher – Universal Tubing Notcher – PRO KIT

$603.00 – $724.00

(25 customer reviews)
The original high performance tube pipe notcher that can safely clamp on bends, notch on bends, adjust over 225 degrees, and even notch square tubing , flat bar, and C channel!
SKU: N/A Category:

  • Weight:

    25 lbs

  • Dimensions:

    12 × 12 × 6 in

BUILD IT YOUR WAY

Customize The Options To Get The Perfect Tool For Your Needs

Choose your options
$18 Per Month Finance Available - Click to Apply

Description

The VersaNotcher is a PATENT PENDING tubing notcher and pipe notching machine can make cuts and holes at angles up to 225 degrees. There are quick-release cam locks for fast precision adjustment. No assembly is required. This tube notcher mounts easily in a bench vise. We normally keep these in stock and ship them within 1-3 business days.

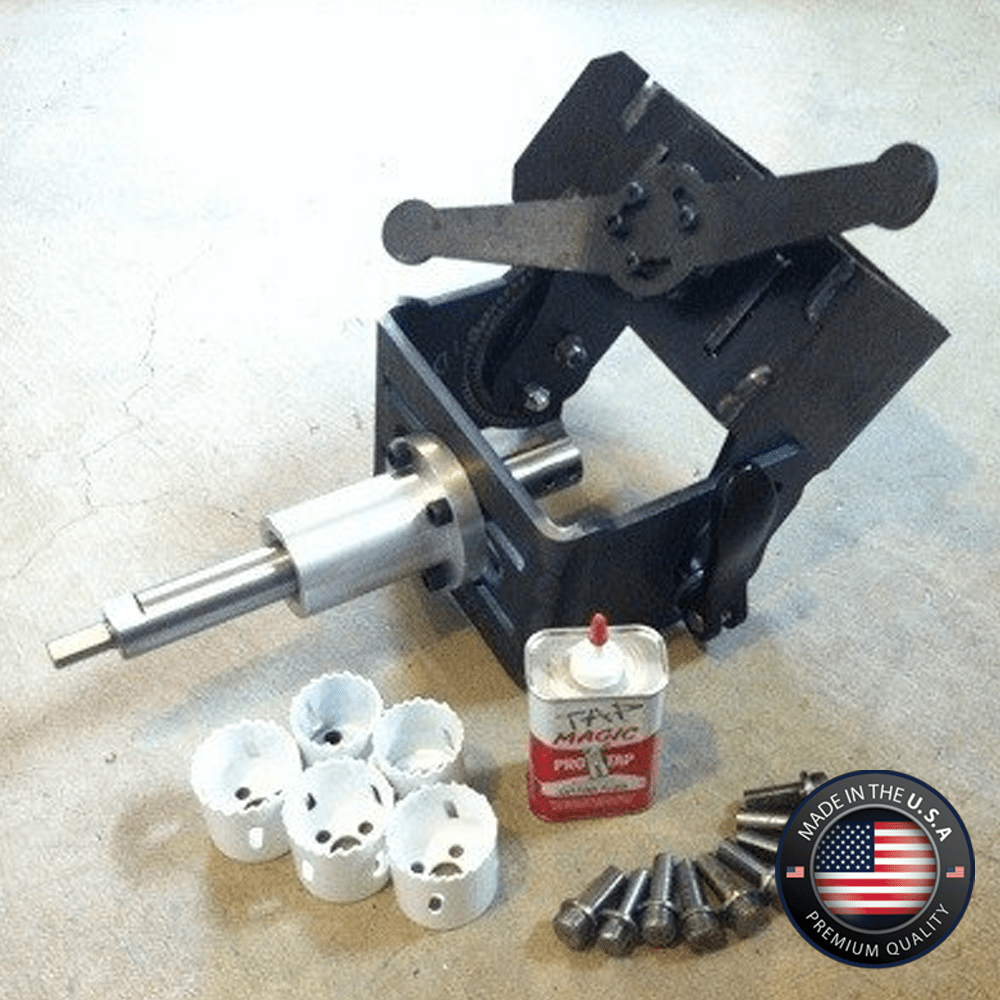

Save $28-41 by ordering the PRO KIT – comes with the VersaNotcher, (6) 5/8″ arbors, (2) 1/2″ arbors, (2) 1.5″ hole saws, (3) 1.75″ hole saws, and a bottle of cutting fluid!

Chose between regular 1.5″ cutting depth hole saws, or the same exact package/tool upgraded to our super deep 3″ hole saws (huge time saver!).

VersaNotcher Specs:

  • Round Tube Capacity: 3/4″ to 2″ on bends, up to 2 3/8″ diameter straight tubing
  • Square Tube Capacity: 3/4″ to 1 1/2″ (2″ when notching diagonal)
  • Flat bar Capacity: 1″ to 2 1/2″ wide
  • Angle adjustment range: 225 degrees
  • Max offset: 1 7/16″
  • Max Hole Saw Diameter: 4″
  • Min hole saw depth (1.5″) Max hole saw depth (4″)
  • Notch on a bend: YES
  • Clamp on a bend: YES
  • Clamp square tube in “diamond” orientation: Yes

Features:

  • Angle adjustments: Quick release cam locks for fast precision adjustment.
  • Pivots: Oil-Lite impregnated bronze bushings with case hardened and polished axles.
  • Angle indication: milled into the frame for durability. 2.5 degree hash marks, numbers every 5 degrees.
  • Offset indication: milled into the frame for durability. 1/8″ Increments.
  • Shaft: 1″ OD 416 polished and ground heat treated stainless steel on dual hardened bearings.
  • Vise interface: One hand lockable quick release handle mounted to an ergonomic hand grip wheel.
  • Vise type: True ACME lead screw with bronze thrust washer for long life and reduced friction.
  • Finish: Plain steel frame
  • Assembly required: None.
  • Hole saws: accepts standard hole saws on standard arbors (RogueFab arbor included!).
  • Power: Use any 3/8 or 1/2″ hand drill.
  • Mounting: mounts easily in a bench vise.
  • MADE IN THE USA!

Comparison Chart Versa

Check out all the features! Don’t for get to subscribe to us on YouTube to see more videos.

Similar Product Warning – Another company makes a notcher extremely similar to the VarsaNotcher (identical bearing block design and adjustment, vise jaw shape and orientation identical, etc). This product was partially reverse engineered from a VersaNotcher purchased from us by that company. We discourage this kind of “copy design” process, as it isn’t good for either company, but it is up to you (the customer) who you want to patronize. Thank you.

25 reviews for VersaNotcher – Universal Tubing Notcher – PRO KIT

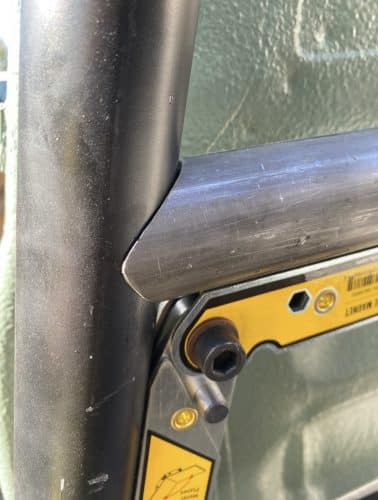

    A5243b62 C620 4e7c Ba1a 408d426da541
    Steven Wright
    05/02/2023
    First notch with the Versanotcher pro kit. Heck of an upgrade from the HF unit I was using. The longer hole saws are worth every penny.
    0776e3b2 D25a 4c15 A129 3300747a90b2
    164e475f 7ed5 4727 8fcc Efca9e938624
    0776e3b2 D25a 4c15 A129 3300747a90b2
    +1
    Preston Lewis
    01/25/2023
    10/10 couldn’t be more happy with my notcher. So easy to use, light weight to move around the shop and its dead on accurate! You can easily get your notches to have a .030 tolerance! But the busy part is the adjustable notch height. Gives you the opportunity to get creative with your notches!! Wish I had bought it sooner
    Ryan
    01/11/2023
    I have used a few name brand notchers, and this one is def my favorite. the ease of mounting a tube, the useable angles right out of the box, and being able to notch on a bend, are all great. Unfortunately it was my buddies, so the one i have, i had to buy a ton of aftermarket parts to make it work even similar to this one. def a bummer.
    Mr.T
    04/14/2022
    I purchased this tool for my welding & fab program and my students love it! super easy to use! very sturdy and the adjustability is huge! Ill be buying one for my home shop!
    20220228 165731
    20220228 165439
    20220228 165731
    +1
    Nicholas Lucero
    02/28/2022
    Worth every penny. I've made hundreds of cuts so far, and had zero issues. It's super precise, has a wide range, easy to use and read, and it's just built well.
    Ben Stoker
    02/27/2022
    This thing is a beast. Extremely well designed and build (engraving the degree markers on the inside face was a very nice touch). This thing makes tube notching about as easy as it can be. Thanks!
    Christian niezgoda
    02/25/2022
    Love this notcher. Heavy duty. The engraving is super easy to read and makes setting this up to get the right pitch super fast and easy.
    Roger Harris
    12/07/2021
    Great heavy duty unit a must have if your notching tube ,pipe , square or anything you going to weld to a round surface thank you for making my job easier
    Img 20210224 105201
    Img 20210224 103722
    Img 20210224 105201
    +1
    Ole Morten Elstad
    02/28/2021
    Bought this Versanotcher a while back and every time I take it out I realize what a great purchase it was. Always spot on, easy to use and very sturdy. It might be a bit pricey but this is an investment that will last for a long time! 5/5 Stars from me!
    Ryan
    02/18/2021
    This is the best tubing notcher I have used, which is crazy because it is also priced much less than most I have tried. Well worth every penny and should hold up to anything.
    Ryan
    02/18/2021
    This is one of the nicest notchers I have used..... which is crazy because its priced better than nearly all of the others I have used! Well worth the price

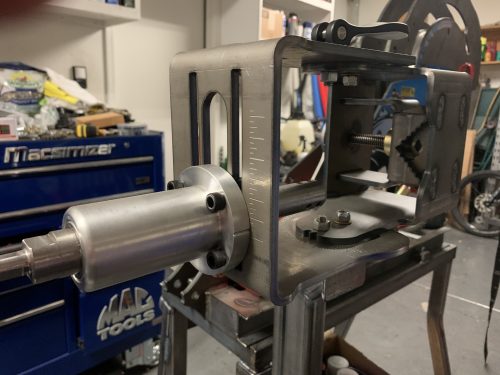

    24244339 3b69 458f A71d 49a3c642e705
    Dustin DePriest
    01/31/2021
    Awesome looking tube notcher that functions even better. Makes notching about as easy as it gets with a hole saw.
    Ron Aitchison
    01/31/2021
    Great notched. Easy to use. Makes the job way easier.
    Dominick Faraci
    01/23/2021
    Great notcher can do just about every angle and clamp on a bend is super nice. But for the bad. The locking arms that hold the angle are not the best. The plastic and arch of them don’t hold hard when fully closed. I have also had problems with the clamping part that holds the tube sometimes it gets jammed up and you have to take the whole thing apart to get the tube out. It’s also a pain in the donkey to change out to a different size hole saw adjusting the arbor to perfectly true takes forever I would prefer a three jaw chuck or something better than 6 set screws. Can it do just about everything yes. Does it have some flaws absolutely but for the price point there is nothing better.
    Brian
    01/22/2021
    Very nice unit , been using mine for over 5 yrs now

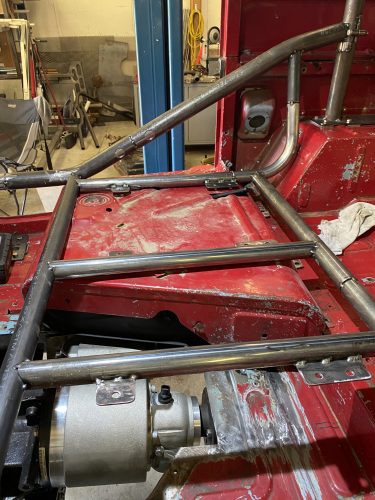

    Img 5008
    jlanghammer1
    09/30/2020
    Well built product. Easy angle adjustment. Much easier than grinding out notches, especially on bent tubing. I suggest you get the 3" long holesaws for sharp angle notches.
    Steven Stafford
    09/05/2020
    The VersaNotcher Pro is the perfect addition to my M600 Bender! I have used this for several hundred notches and it is built great and really helps my work flow!
    Clay Wahlstedt
    07/31/2020
    Solid notcher at a solid price!
    Jeff alaniz
    01/08/2020
    This is an awesome notcher. Love how simple it is
    David Lawrence
    12/31/2019
    Great notcher, I thought I was good and fast by hand or chop saw method. Well I was wrong should of bought one years ago. Easy to set angles and get a perfect fit. Wouldn’t mind vice tang being a touch higher as I get some interference on the vice and clamp hand
    VersaNotcher - Universal Tubing Notcher - PRO KIT photo review
    Jeff Alaniz
    12/28/2019
    Super fast shipping ordered on a Saturday, shipped out the following Monday
    VersaNotcher - Universal Tubing Notcher - PRO KIT photo review
    Jaydn Walker @ WOF
    11/14/2019
    One hell of a piece of equipment! Notches damn near everything! I do wish they offered a beefed up version with a 1-2” longer throat that making the shaft longer for longer notches. I do not mind the holesaw bottoming out because it keep you from torching the hole saws. I use a sticky grease for cutting Magic Tap works great but i use too much of it. Bad too the bone product and even better customer service!??? !USA!
    Anthony T.
    04/04/2019
    Good Kit, i love the notcher. My only complaint is that the provided 1.75" hole saws were barely enough to do a 90 in a single push. I have since purchased deeper hole saws that allow me to do 90s with a single push and get deeper cuts with less tear outs. The arbors are nice because they do allow a deeper cut than a standard arbor you would buy with a hole saw, they also chuck up really nice in the shaft.
    Morgan Newlin
    05/26/2017
    Bought this to accompany my rouge Fab bender. I have used it on several projects now and I am impressed with its versatility and ability to get those difficult angles. The heavy duty bearing collar and shaft are solid and I like the vertical adjustment as well.
    Jon Kelley
    05/25/2017
    Purchased the VersaNotcher Pro Kit in January 2015 along with the model 600 bender. Together these are a fabricators dream! The notcher is a beast that handles anything you throw at it. American made and top quality! You won't be disappointed!!
Add a review

Your email address will not be published. Required fields are marked *

You may also like…

You may also like…

PRODUCTS YOU MAY ALSO LIKE...

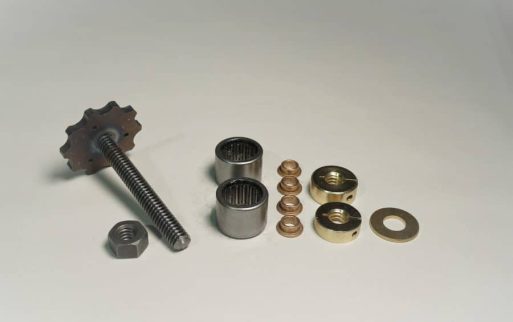

  • Rebuild Kit For Notcher

    VersaNotcher Rebuild/Service Parts

    Sale! $20.00 – $103.00
    Select options
  • 3 Inch

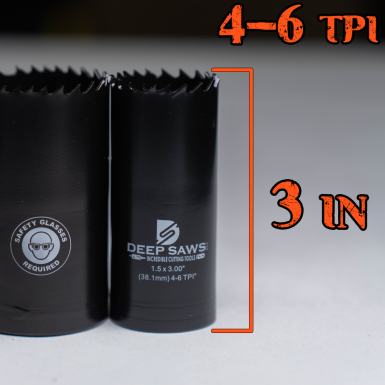

    3 Inch Deep Hole Saws for Tube Notching, M42 Bi-Metal
