2.0 HP Electric/Hydraulic Power System & Components for M600 Series Bender (BACKORDERED)

(3 customer reviews)

$115.00$2,475.00

SKU: N/A Category:

Description

This is the more expensive of the 2 ways you can power a model 600 series tubing bender.
Currently lead time is Approx. 90-180 Days. ( We are working hard to find a solution to shorten this number.)

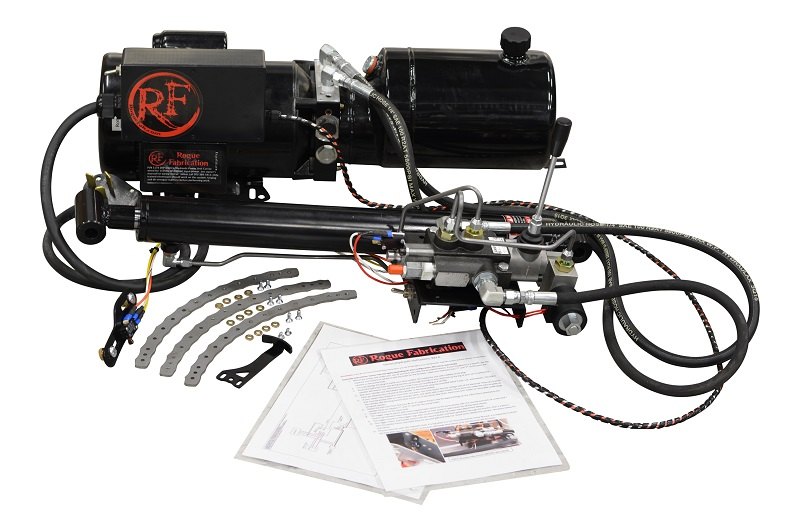

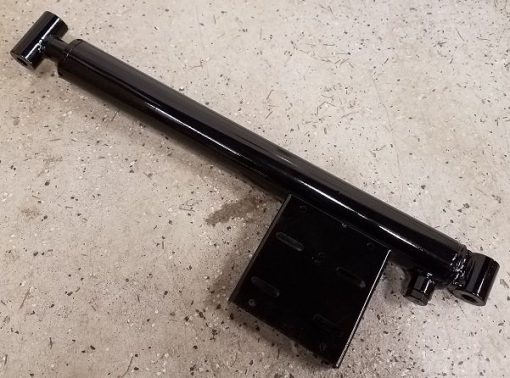

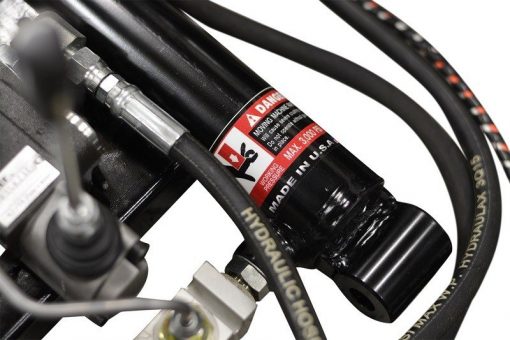

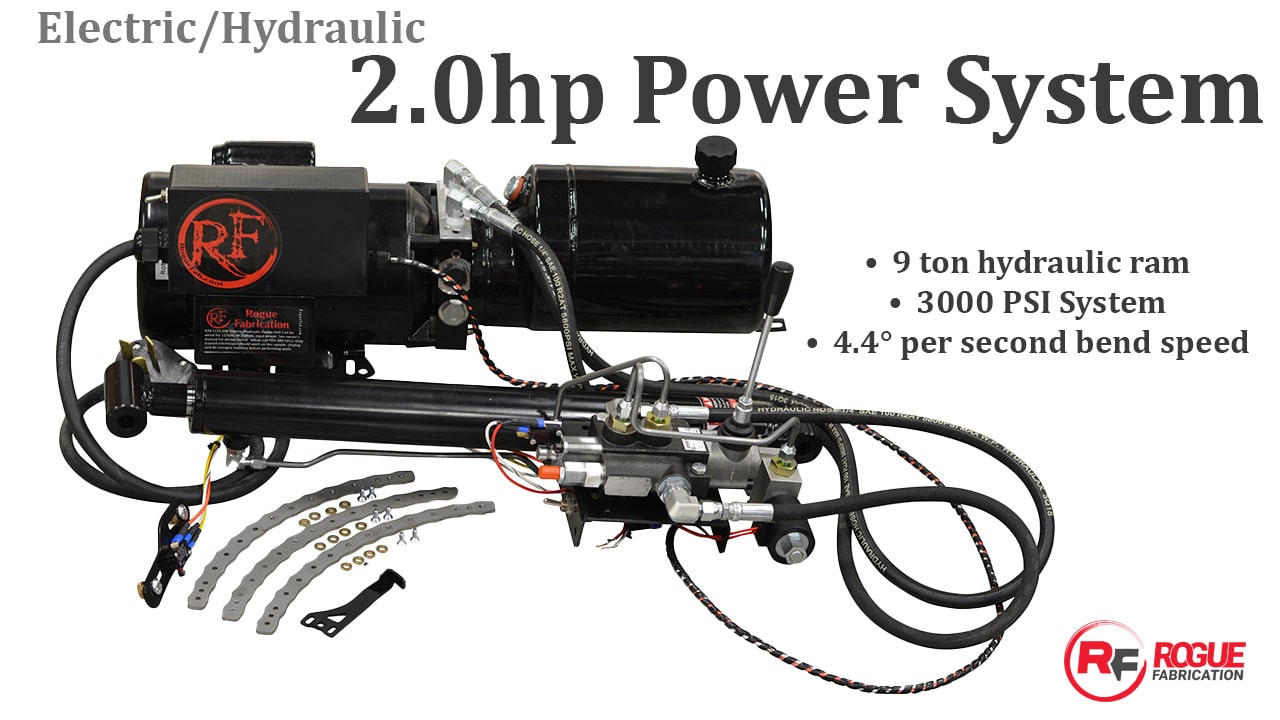

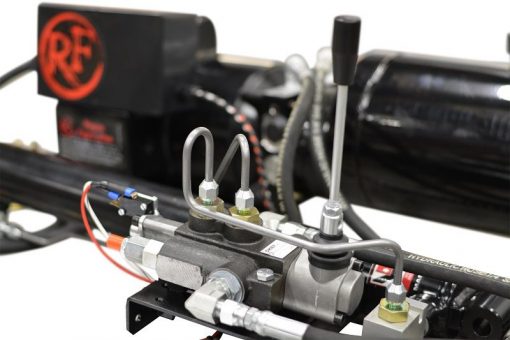

This 3000 PSI electric/hydraulic system was fully engineered to work with our bender. It features a 2 H.P. industrial induction motor, robust pump and steel reservoir, and a custom ram. This is the most affordable high performance automatic electric hydraulic power system on the market. We make these systems right here in the US with 99% of the components being sourced from North America and Europe.

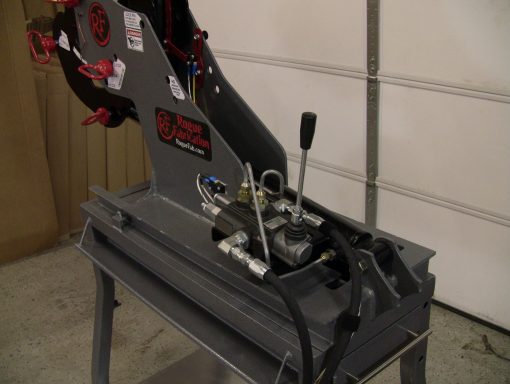

Bending speed: 4.4 degrees per second. This is about 4.5X the speed of an air powered system. This is VARIABLE speed in both directions with a joystick control. Return speed is about 20% faster than extend (bending) speed. This unit is powered in both directions, unlike the power systems most of our competitors import whole and resell!

OPTIONS:

*POWER UNIT: Our 2.0 HP power units have a 10 ft power cord and come installed with a NEMA 10-50 plug. These power units are made here in the USA from components sourced from North America and Europe and feature a 1 year warranty, even in business use. They can be matched with our auto stop, and have a joystick valve for speed and direction control! You will need 220-250 volts AC to run this system. It can be configured to run on 208 volts as well. We can custom-build these for about $600 more with a 50 HZ specific motor for our customers in countries with 50HZ power.

*PRECISION AUTO STOP KIT- This infinitely adjustable auto-stop turns off the hydraulics when the machine reaches the pre-set stop point. Say goodbye to part variation, this will stop in the same place every time. All metal parts come nickel or zinc plated. Requires counter sinking 8 small holes (which are already cut in your machine from the factory, just not countersunk) to install. All wiring and plugs included. This does NOT work with a pin in the 4.5 HD pressure die location. If you need to run your auto stop on parts that require 2 pressure dies for capacity reasons, you must make those bends on a 6 inch bend radius.

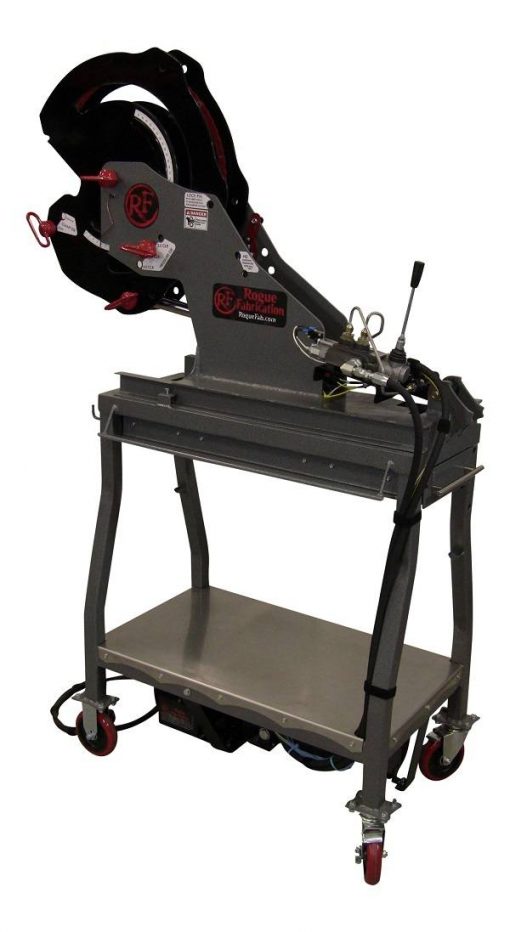

*CART BRACKETS: Just like you would expect, these allow you to hang your hydraulic power unit under the carts that we sell. Simple nuts and bolts installation once you drill 3 holes into your bender cart. Brackets are CNC laser cut P&O steel and formed on a CNC press brake. Black powder coat finish. Slotted holes throughout for easy adjustment and flexibility of installation based on hole placement.

Notes- This cylinder and auto stop doesn’t fit in the machine with the Thin Wall Attachment (TWA). The thin wall attachment is no longer offered.



This system was designed from the ground up to be the optimal power source for our tubing bender. It is compatible with all revisions of our tubing bender. If you are tired of having operators in your shop scraping tube and valuable parts, this solution can pay for itself in scrap reduction! DOM and stainless tubing costs money, and so does time. This upgrade saves both.

Subscribe to our Youtube channel for more videos on this awesome upgrade. We will make more videos soon and you will want to be notified.

LINK – click to visit us on YouTube

We use our electric/hydraulic system in this video when we teach novices how easy our setup is to use. Let us show you in under 7 minutes:

Want to see a whole project from start to finish, and even more bending tricks that are 100% unique to our design? Watch this video:

Here is a video showing how to make a roll bar (And using the 2 HP electric hydraulic system):

3 reviews for 2.0 HP Electric/Hydraulic Power System & Components for M600 Series Bender (BACKORDERED)

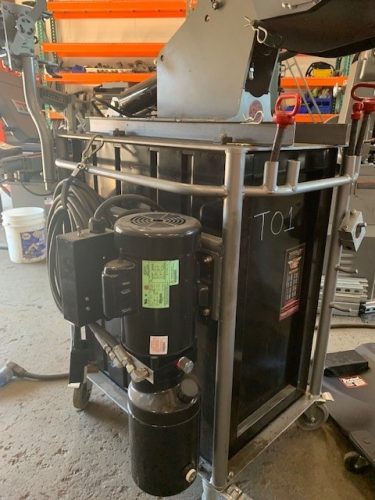

    Bender 2
    Bryan T
    08/03/2022
    This set up is a game changer! Incredibly fast and the power seems endless even with some of our 1.75x .250" dom. The kit is well thought out and was very strait forward to install. Joe and his team were extremely helpful and walked us through how to set up the pump vertically. this is a must have setup for shop use or anyone doing a lot of bending.
    Tubing Bender
    James Osborne
    04/27/2022
    I have the hydraulic upgrade with a stop limit. This makes repeatable bends with no problem at all. Once it all is setup, it makes the job very easy. I make 90 deg bends with ease.
    Bender
    tim-3912
    02/28/2022
    I would consider this a mandatory upgrade if you use your bender for any type of professional use. It is powerful and super easy to use. Definitely add the auto stop, I was able to keep a +/- 1 degree on a run of 45 bends.
