Bender Upgrades Package

(1 customer review)

$131.00

Description

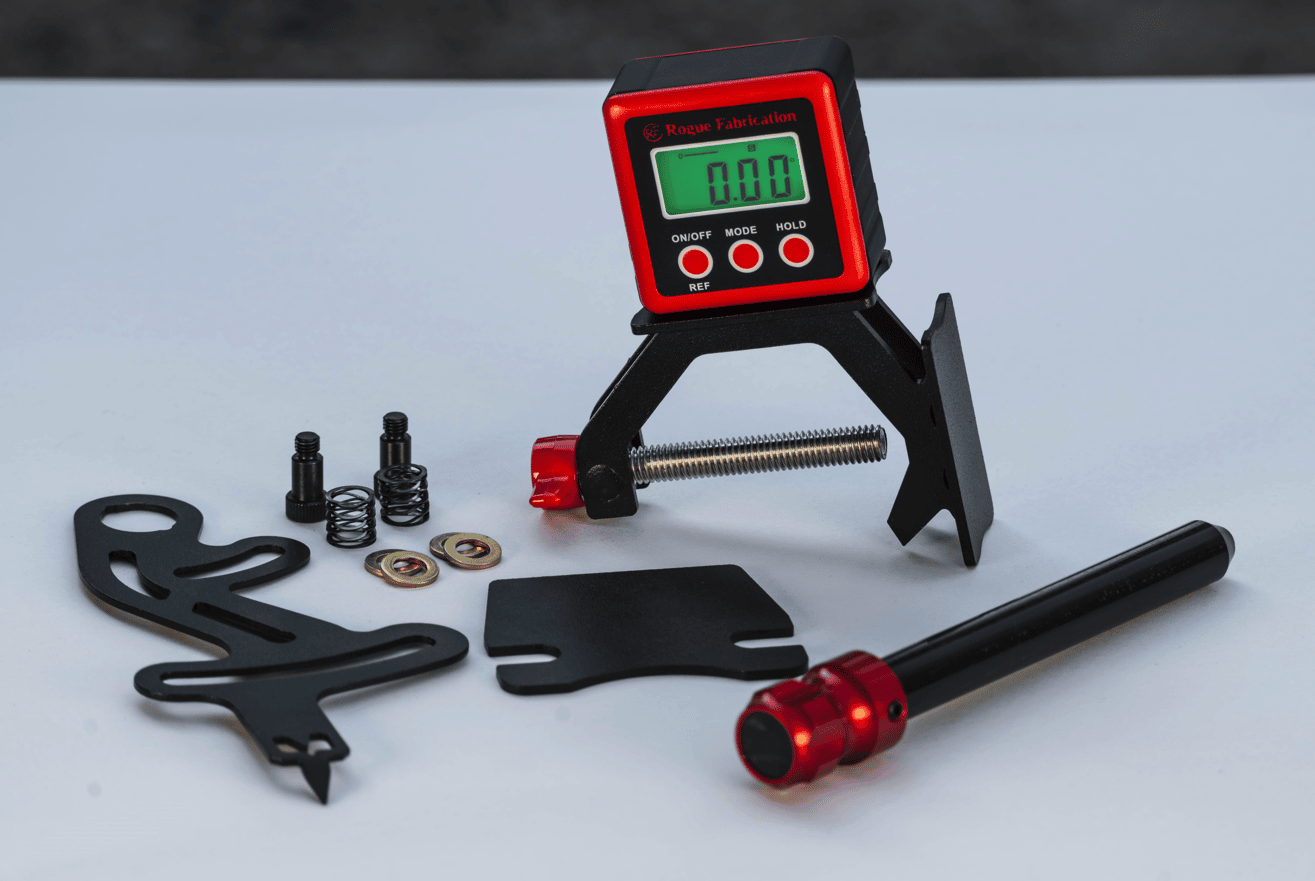

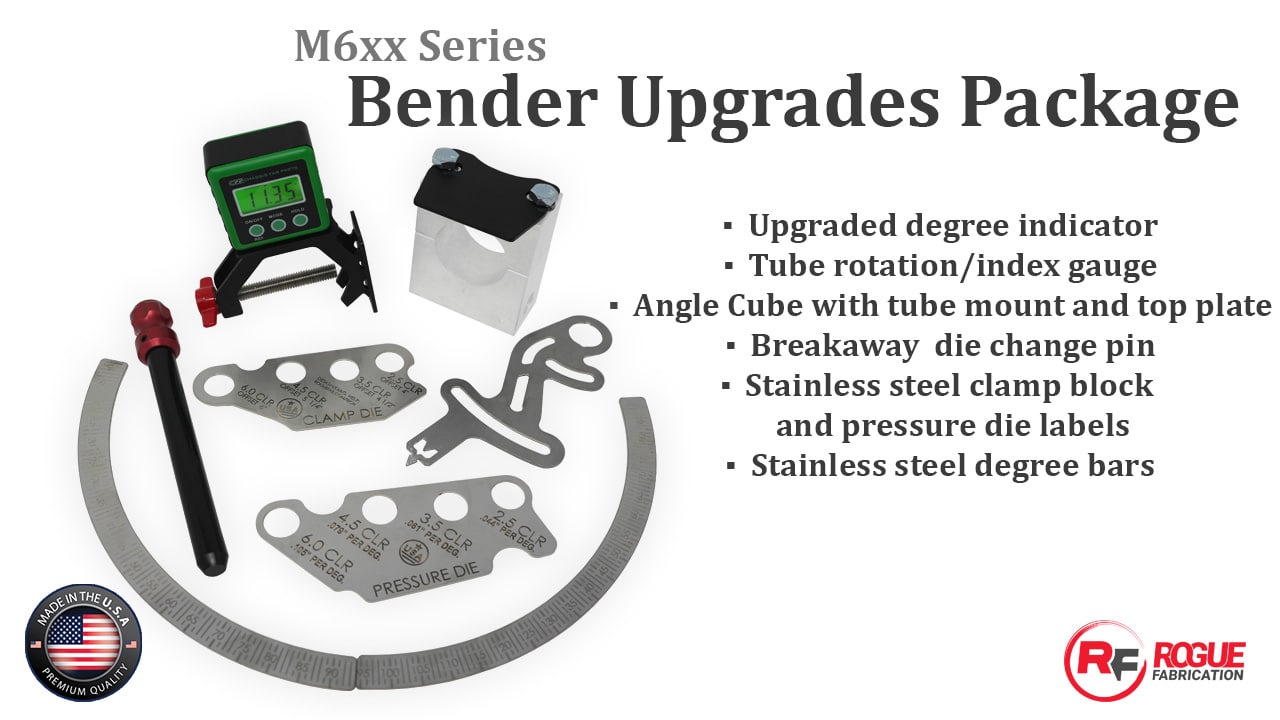

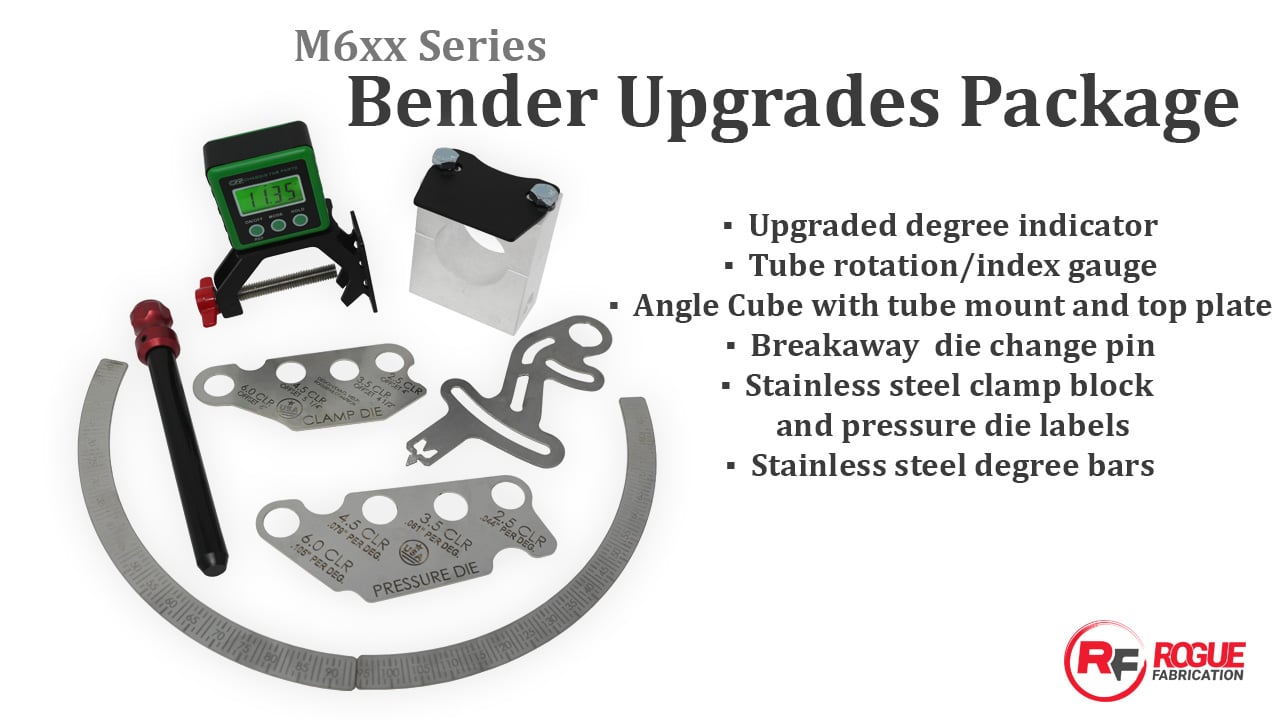

All of our most popular upgrade pieces in one package! To see all accessory options go to the bender accessories and customization page in our products tab.

Upgraded Degree Indicator:  Comes with all hardware. Uses one tapped hole in the machine, and one more has to be tapped 1/4-28 (hole is already in your machine). Add the tap if you need one! Nearly all parts are made in the USA (Tap, springs, washers, pointer, and plating are done in the USA). Precision CNC laser cut from domestic P&O steel. The M600 comes with an affordable degree pointer – no matter if you get a kit or a package. This is an optional upgrade.
Tube Rotation/Index Gauges:  These tools are fantastic for making complex tubework accurately and easily! Now if you can think it, you can bend it! And if you use Bend Tech software, “tube rotation between bends” is one of the outputs, which you now have a gauge for! The cube can read in degrees (down to .05 degrees resolution), and also in % incline and inches/ft. When you have two bends in a part and they aren’t in the same plane (3D), this is how you accurately put them at 30 degrees apart.

Angle Cube – Backlit LCD screen, resolution of 0.05 degrees. Magnetic base. Can be set to zero at any angle. Reads angle from zero to 90 degrees and then starts over again at zero (so a 110 degree bend will read 20… it’s quick to get used to). Imported. runs on 2 AAA batteries, sold separately. Includes small soft case to protect it when not in use.

Tube Mount – These clamps are ergonomic, compact, and rigid. This slip-on tube clamp can be slid onto tubing up to 2.375″ OD and provides 2 surfaces 90 degrees apart to set the magnetic angle cube.  This clamp is fast to set, and clamps very well on bends if needed. Made in the USA here at our shop! Ships powder coated.

Top Plate – This simple laser cut plate allows the angle cube to be placed on a standard RogueFab clamp block in either orientation (to read bend angle or tube rotation). This can be a handy backup to the analog gauge on the machine for bend angle, and it can also be used just like the clamp mount in this kit to indicate tube rotation. Aluminum clamp block sold separately (see our tube bender dies area ). Made in the USA. Ships powder coated.

Breakaway Die Change Pin: Knob is precision CNC machined from US-produced billet 6061-T6 Aircraft Grade Aluminum here in the USA. They are Type II Anodized here in Oregon and assembled complete with set screw and high yield strength Delrin with a precisely controlled outside diameter, perfect for us changing dies in your M600. Our M600 Tubing Bender has a VERY easy die change process that uses one of the die pins to pivot all the heavy parts of the machine and allow very easy die changes (see “VIDEOS” section for the process). The only downside to this process is that if you get interrupted and are using one of our faster hydraulics systems, it is not hard to accidentally run the machine locked! This will bend your bend wheels in a hurry. We have a simple solution, a brittle Delrin pin that breaks before your bend wheels are ruined. Even better, you can buy just the part that breaks to make a mistake cost you even less!

Compatibility: See images in the F.A.Q. to determine if your machine has the die change pin hole (labeled “lock pin” on stickers). IF your machine has a lock pin hole, you can use the die change pin. Any machine in the world can use the rotation gauge set up. Every bender we’ve ever made can use the upgraded degree indicator, but all “Alpha” model benders (pre M600) will need to have the second hole drilled and tapped (not just tapped like M600 and newer machines). The Alpha was in production until late 2014, and you can identify it easily by looking through our F.A.Q. (link at the bottom of this page).

1 review for Bender Upgrades Package

    Bryan T
    08/03/2022
    Bought this kit on a whim. turns out I use all of the items every single time I bend tubing. the pointer is easy to use and a good upgrade but I use it more for reference and the angle cube for precise bends. the tube clamp saves time of having to weld on a tab or determine some sort of rotational reference. its quick and easy. flat tab for the clamp blocks I like so much that I got one for each of my blocks. The pin for die changing works great. very strong and forgiving if you accidently hit the go button before removing. ( yes I do it almost every time)
