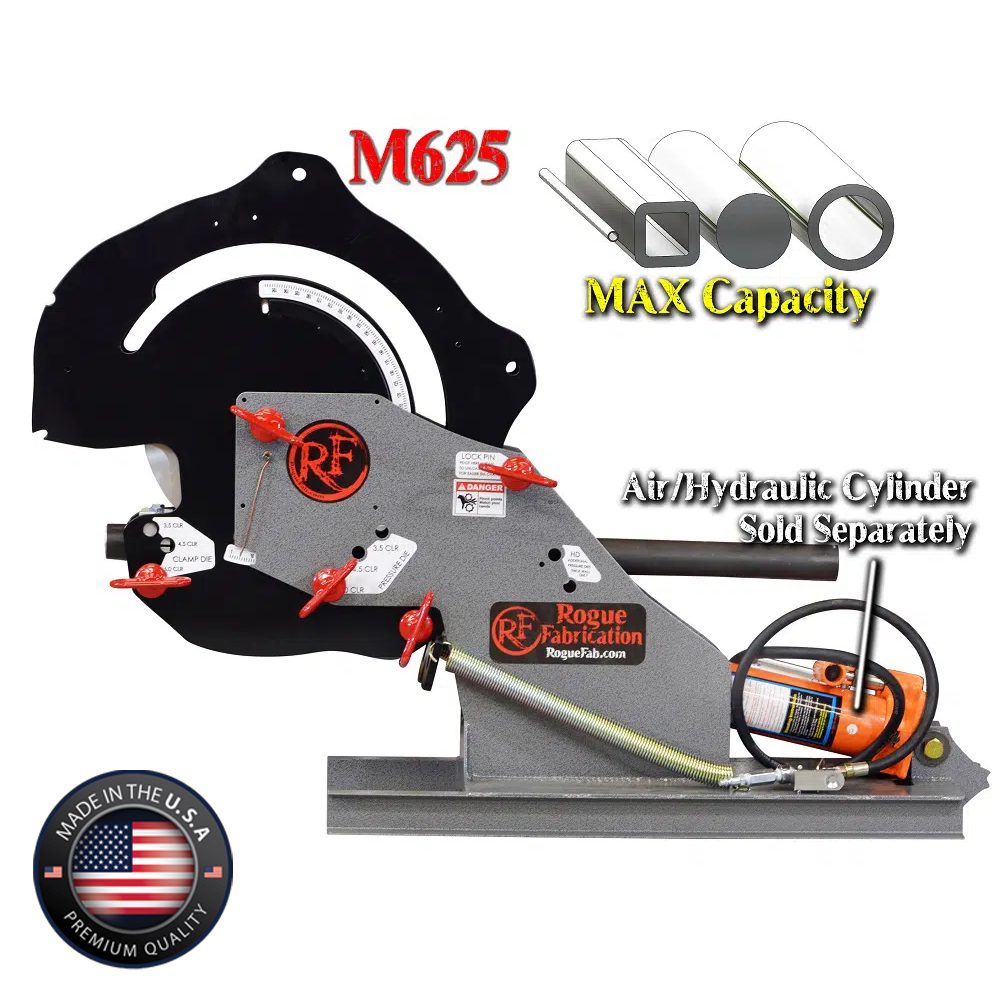

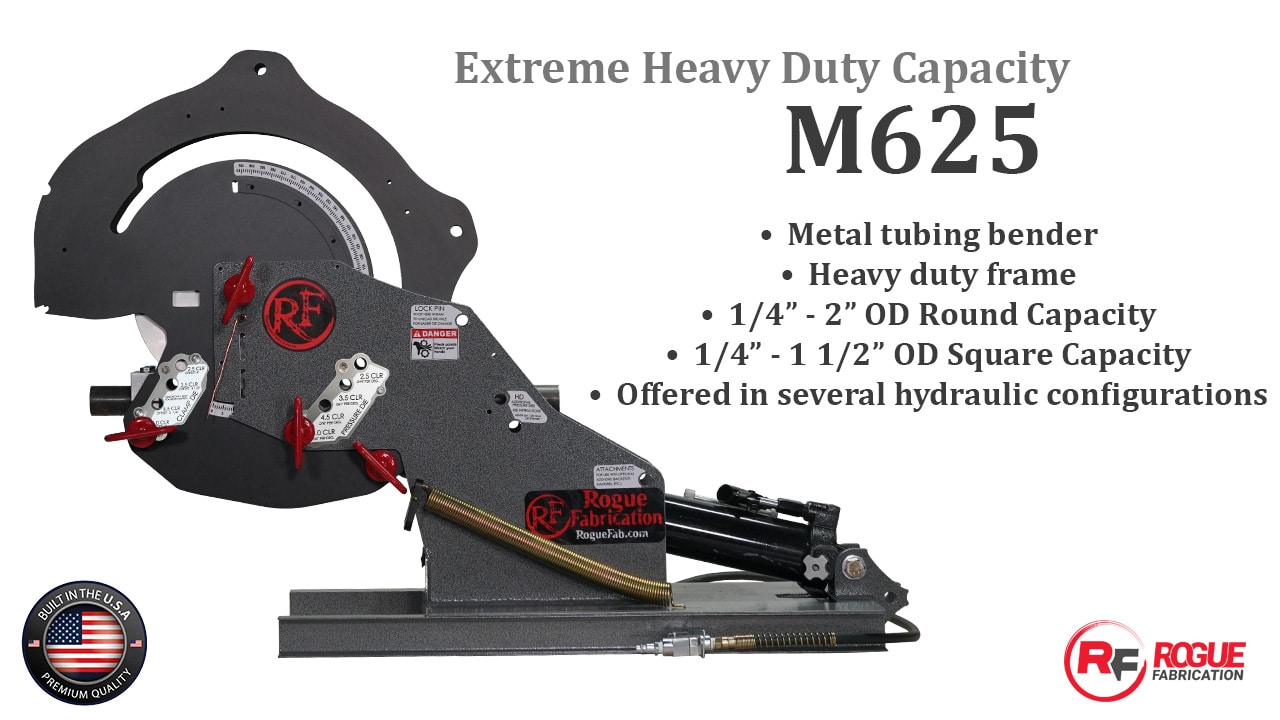

Metal Tube Bender M625 & 1 Die (Extreme Heavy Duty)

From: $1,550.00
(47 customer reviews)
  • M625 metal pipe bender can do 94 degrees in one shot and go past 180 degrees
  • Bends a variety of metals - mild carbon steel, chromoly, stainless steel, aluminum and more!
  • Extremely accurate and easy to use
  • Made in the USA
  • Patented product

BUILD IT YOUR WAY

Customize The Options To Get The Perfect Tool For Your Needs

Description

The RogueFab model 600 series pipe bender is the best value on the market. It competes in price with machines that have nowhere near this bending capacity, versatility, and technical support. Our steel tubing bender is easy to use, accurate, and portable. Our current lead times are 1-2 week dependent on the order, and will ship in the order they are received. This product is protected by US Patent No. 11529663.

The hydraulic cylinder (or system, there are options HERE) are sold separately (like it says in the photo above and later in this description). See requirements below.

Not sure what a pressure roller die is? Need help with the options? Learn everything you need to know in under 4 minutes:

Capabilities of M625 metal tube bender

We have the most affordable dies in the industry, and all of them bend 180+ degrees. You can forget about “90 degree 1 shot” benders that stop at 90. The M625 bender can do 94 degrees in ONE shot, and then of course it can continue and go past 180 after re-pinning the hydraulic cylinder.

Bends Carbon and Stainless Steel

The M625 metal bender has been tested on carbon and stainless steel and works very well. Our line of tubing benders have an unmatched range of wall thicknesses that they can successfully bend due to their extreme capacity for thick walled tube on the M625 and their amazing thin wall range when equipped with the Rogue Fab Mandrel Attachment.

Other Supported Materials

Our M625 can also make S-Bends, which is shown in our videos section. Furthermore, it can bend:

  • brass
  • copper
  • aluminum (round/square tube and pipe)
  • thin-walled titanium for turbo manifold work and tubular titanium frames

While this metal tube bender can bend super thick DOM tubing, it also bends thin 4130 chromoly for roll cages, and can still make accurate 3D bends with ease on either material.

Are you still looking at manual tubing benders?

This modern machine was designed to run air/hydraulic (ram is sold separately, $99-195). Compare our maximum capacity to the competition before you buy, because nothing else comes close. This machine can bend solid steel bar up to 2″ diameter! We have the video to prove it. Just click on “videos” in the menu at the top of this page.

Machine hydraulic power requirements: The air/hydraulic option consumes 6 cubic feet of compressed air per minute (CFM) at 110 PSI,  and requires no electricity at all. As long as your compressor has a storage tank, you don’t necessarily need 6+ CFM. Our other hydraulic systems are Electric/Hydraulic. The 1.5HP Elec/Hydro system draws ~8.1 amps at 220-250 volts AC. The 2.0 HP system draws ~12.5 amps at 220-250 volts AC. Our systems are designed for 60hz power (contact us for 50hz options if needed). They can also run on 208V power. We can wire our 2HP system for 110V at your request, but it pulls over 25A and is a highly unpopular configuration.

Machine Dimensions:

M6xx tubing bender: (assembled, ready to bend): 12”x30” floor footprint. Overall dimensions 12”x47”x32” (LxWxH). Weight 140-200 lbs. M601/M605 ender frame is 3/16″ thick on the uprights and the M625 is 5/16″ thick on the uprights.

M6xx Bender on Cart: 22”x34” floor footprint. Overall dimensions 22”x47”x68” (LxWxH). Weight 210+ lbs (depends on cart contents).

Flexible Design

The best thing about our line of tubing benders is how they can easily grow with your shop. You can get the machine now as the basic M601 or the overkill-strong M625, and be up and running without spending your whole tool budget.

Down the road, there is no need to sell this machine to upgrade:

  • You can add a mandrel attachment to bend extremely thin tubing.
  • You can upgrade to pressure roller dies for more complex bend geometry and bending aluminum

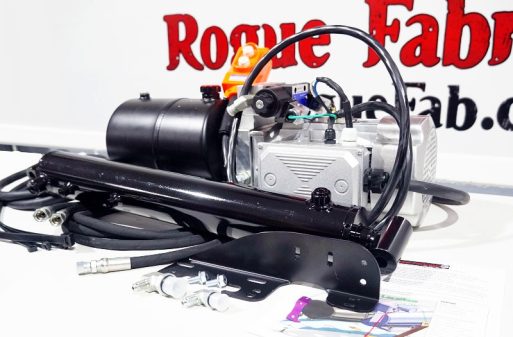

  • You can upgrade to a 9.5 degree per second electric/hydraulic power system with auto stops for repeat parts.

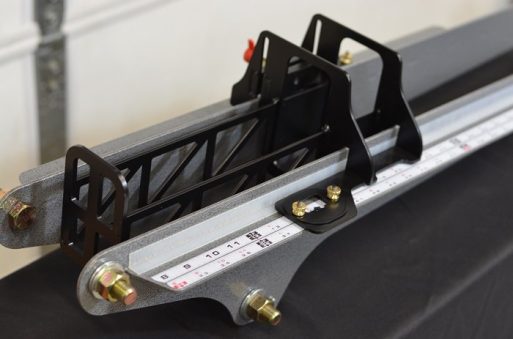

  • You can even add a backstop and rotation gauges to keep track of bend spacing and rotation between bends on 3D parts.

Need storage space? We sell cart kits and completed carts for our machines. Want to get advanced? We sell the best bending software in the business, already configured for our machines.

This tubing bender is no bait-and-switch. It comes with EVERYTHING in the pictures except for the hydraulic ram. You can go buy the ram from Harbor Freight to save money on shipping, or get one right off our web page. Our web page is the single most complete source for information on tube bending. Read all of it in our Technical Index (LINK).

***NOTE: We ship all M625 Benders with an HD kit (a part that attaches to the hydraulic cylinder) that is compatible with Rogue Fab and Harbor Freight brand hydraulic cylinders. If you have a hydraulic cylinder from Amazon or Northern Tool, you will need to tell us in your order notes. We can include this type instead, but only if you tell us at the time of your order***



Are you worried about learning how to bend tube? Or learning a new machine? Ours is the easiest to use, and able to make to most complicated bends. Let us show you in under 7 minutes:

Want to see a whole project from start to finish, and even more bending tricks that are 100% unique to our design? Watch this video:

How much work is it to weld it together? Very little, it’s so easy a novice welder can do it:

How hard is it to change dies? Super easy! Here is a video of a die set change;

*when properly equipped. Please see our wall thickness capacity chart for full details. It is in our tech section on our web page.

Please read our terms and FAQ for complete information about warranty, returns, and more.

47 reviews for Metal Tube Bender M625 & 1 Die (Extreme Heavy Duty)

    Img 3744
    Ryan Kruchten
    03/20/2024
    Recently purchased a 625 bender after searching long and hard for a bender that could meet my needs within a reasonable budget. This being a vertical rotary draw bender makes this bender easier to use than other benders on the market, and takes up less space in the shop. So far my only regret is not buying one sooner. I love the strength, simplicity, adaptability, vast die selection, excellent customer service, And the list goes on of reasons I chose Rogue fab over other benders on the market. Highly recommend!
    Pipebender
    wmccuen
    03/31/2023
    I bought the 625 pipe bender with the weld kit. We were able to assemble it about 2 1/2 hours very easily. I mainly use it for handrails and it's easy to figure out the bends. Thanks, Wayne McCuen

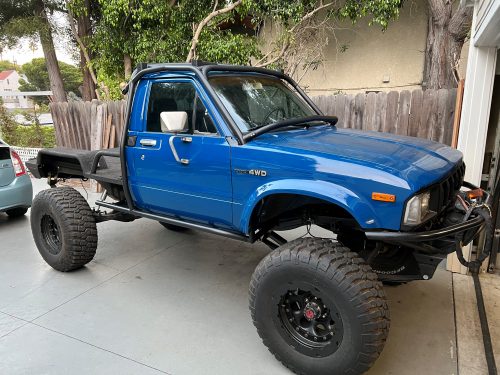

    82 22r
    Will
    08/31/2022
    Bender made easy work of this 1 3/4" 0.120 DOM for my roll cage. Very easy to use and great reproducibility of bends.
    8516d259 E48e 4d19 9946 55ed37a1aa6e
    7151c6e1 E25a 4006 98eb 7f643a11aca8
    8516d259 E48e 4d19 9946 55ed37a1aa6e
    +1
    Sam
    08/31/2022
    We recently picked up an M625 package and its really helped us step up production. When bending square tube we ran into some issues but a quick call to support had our problems fixed in ~30 seconds. Super helpful team and the machine makes beautiful bends quickly and repeatedly.
    Reid McConnell
    08/08/2022
    Bought this for one specific railing project and now have since put it to use multiple times and has paid itself off! Enjoying using it and it gets the job done nicely. Recommend it for any user that wants consistent bends.
    alienfab4x4
    02/23/2022
    Hey Just Got the M625 with 1.5,1.75,2 for tubing, got the Notcher, full kit this is for Making Jeep Roll Cages, Sliders, Bumper Hoops, we are putting it together this week, Got the Weld Kit, and Wow its going to Be Beefy. Thanks Brandon,
    Matt Cowart
    04/30/2021
    I got the kit. Assembly was a snap and all fit together well. Welding time was more than I thought but not a big deal. Love the engineering on this bender.
    20210222 094414
    KENNY HARDY
    02/28/2021
    Awesome product. Easily put together. You'll find yourself looking for any reason to use this bender!
    Jeff Kuehn
    02/01/2021
    Bought the weld together kit and watched the video then was bending in a couple hours with great success. Very impressed, should be able to bend up my cage in no time.

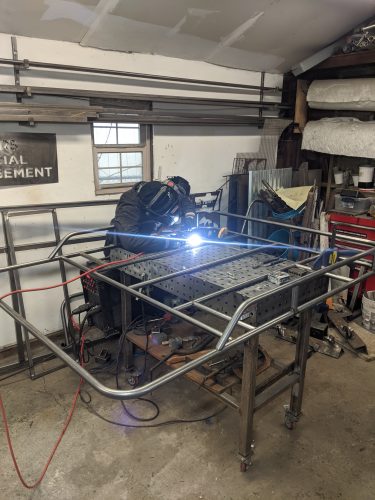

    143077022 213856790247173 1818083118581894124 N
    alex jordan
    01/31/2021
    Love this thing . built a roof rack for the first project with 1'' .083'' wall mild steel there was little to no deformation in the bends. really like the clamp block set up makes lay out so much easer .

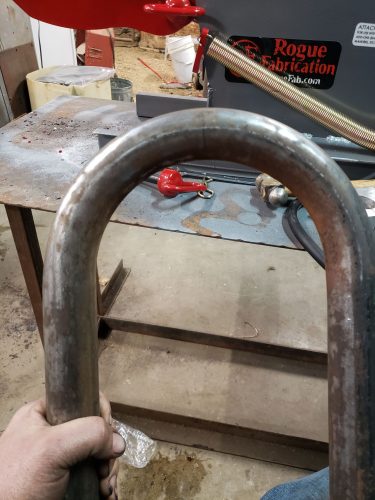

    20201221 180331
    Lee Deschaine
    01/31/2021
    Best budget bender you can buy. Picked mine up at the shop on a Friday. Welded it together on Saturday and was bending with it that night. Don't know how I waited so long to buy one!

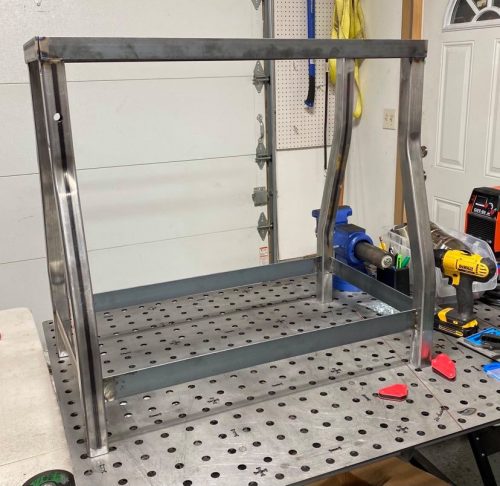

    Cart
    Joshua Laliberte
    01/31/2021
    A friend of mine Michael Downing purchased one of these for his shop. After speaking with him and his good experiences I had to order my own. I purchased the bender with cart unassembled a few months ago. So far I have assembled and welded the cart together. I was extremely impressed with the detailed instructions and how easy everything was to assemble. If it were not so damn cold in my garage I would have had this assembled a few months ago. Thank you for the quality bender. I look forward to updating my review once I get a chance to fully put this machine through its paces. Joshua Laliberte JDT Racing
    Ron Aitchison
    01/31/2021
    Living the M600xHD with hydraulic ram. And the customer service at Rogue Fab is top notch. I stopped by their shop and was shown their different products. Great guys.

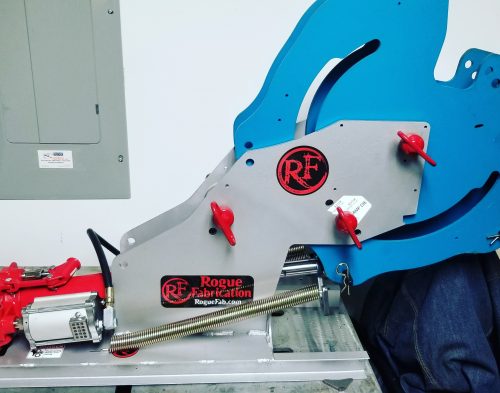

    123 11
    Alexx Stock
    01/30/2021
    For weeks I was reading reviews and forums, trying to figure out which bender I wanted. Finally pulled the trigger on a xHD model and WOW THIS THING IS TOUGH. Bends 1/4 wall tubing without hesitation. Incredible machine. Definitely a well thought put design and hours of R&D. The weld together kit is straightforward. Anyone halfway decent with a welder can put this thing together. I'm just beginning my journey into extreme fabrication work and looking forward to brining my RF bender with me. Along with more of their awesome products I'm sure I'll end up buying.
    5b1215b6 Ae6d 4663 Af8d 96ef1edd5f39
    Cd33d1ed D645 427a B785 A5a05e216993 113x150
    5b1215b6 Ae6d 4663 Af8d 96ef1edd5f39
    +1
    Ryan Barnhart
    01/22/2021
    Amazing bender!!! Stop waiting like I did. I should have bought this years ago! Makes great bends and has stepped up my fab game.
    Paul N.
    06/30/2020
    Bought the xHD version in the weld together kit. I took a bit longer to weld it up than Joe does in the video :)), but everything went together perfectly, and the instructions were easy to follow. I did a huge amount of research before selecting this bender, and am completely satisfied with it. Purchased it for a 1972 K5 resto mod project to fabricate a cage, doors, sliders, and bumper, and some other things I haven't thought of yet. We also used it for my son's high school tech/shop project-he was the only one with a bent tubing catapult-everyone else used wood. It has displaced my welder as my 'favorite' tool. Joe and his team provide a great product and great service. Couldn't be happier.
    Wayne Smith
    05/31/2019
    Awesome bender. Easy to put together and works flawlessly. Only problem is we need more dies. Latest project was my son's XJ bumpers.

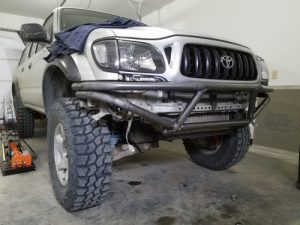

    Bumper5 500x375
    Josh Baker
    03/13/2019
    I love this bender. Its the first one i've ever owned. Its super simple to use. I bought the weld together kit and it went together very easy.

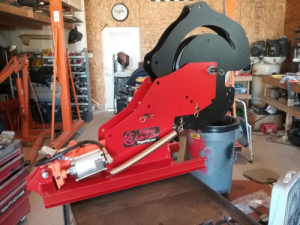

    Rf2 500x375
    Sam Ayars
    01/28/2019
    Great bender and great customer support and service! I'm using 1-7/8 x .145-wall DOM and the guys recommended I get the xHD unit - ordered the weld-together kit and my first test made a perfect 180* bend. Couldn't be happier! - Sam Falcon, CO

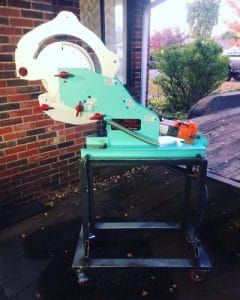

    Fe15d6da Ba6d 4ee1 9e41 A6741dac7dbd 400x500
    Taylor Davis
    10/30/2018
    I got my xhd kit the day after I talked to rogue about getting it. I’m local so just picked it up. Everything went together flawlessly and I had never bent tubing prior to having this bender and it’s been super straight forward and easy. Even to centering a bend it a tube. They give you the takeup measurements and offsets it’s been amazing I would recommend going rogue fab if you are new to bending or experienced.
    Fe15d6da Ba6d 4ee1 9e41 A6741dac7dbd 400x500
    Robert Martins
    10/30/2018
    100% could not be any happier with my bender. The sales team and customer service departments where top notch and very helpful with any questions and or problems I had. I would recommend them and their bender any time
    Jesse Wells
    10/18/2018
    I have been using this bender for quite some time now and i can definitely say without a doubt this is a great bender for every fabricator. Its at a reasonable price and it gets the job done. I am very happy with my bender along with the customer service that they have if i ever have a question they get right back to me

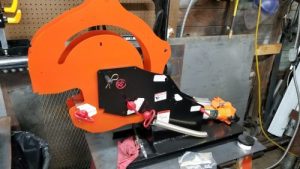

    20180304 155753 500x281
    Carl
    10/09/2018
    Great bender. Works better than the others I have tried.
    20180304 155753 500x281
    Bobby martinson
    10/09/2018
    Very nice product and very top notch customer service hands down one of the best I’ve ever dealt with
    Kris terrell
    10/03/2018
    Great quality easy to use and great customer service! Recommended highly by me!

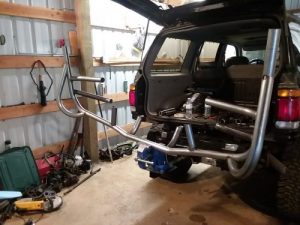

    20180503 181320 500x375
    Oleg
    10/03/2018
    Very nice bender. Easy to setup and makes quick work of the tubing. Definetly recommend roller pressure die for easier tube mounting in a jig.
    Oleg
    10/02/2018
    Easy to use. Quick to get the tube in and out to check for fitness and what not. Deffinetly recommend upgrade to roller pressure die
    Logan Sanstad
    10/02/2018
    Went with the weld together kit. Really straight forward instructions. Welded up nicely and works great has more capabilities than I have a ability. It's good to know I wont out grow it.
    Dbmx415
    04/21/2018
    Excellent product! Very well engineered this becomes evident in assembly. Shipping was quick and communicated efficiently. Top notch customer service was also a major plus to this purchase. Thank you I will be back for more Rogue products!
    portland2moab
    01/15/2018
    Purchased the M600 xHD. Picked up the Tubing bender from their shop and had it welded together the next day. Very easy to weld together. Was easier to watch the video's then to read the directions but the directions were good too. The bender worked flawlessly and the math was right on. I built a cross member for my B-pillar on my XJ Cherokee. It had be custom built because I have a Two door Cherokee and I still wanted to use the back seat.
    Monumental Fabrication
    12/26/2017
    This bender makes precise, repeatable bends at a great price. We bought it to bend anodized aluminum and our first test was a 180 degree bend and it was perfect with hardly any distortion. I would recommend getting extra clamp blocks to make multiple bends easier.
    Corey Pratt
    12/11/2017
    I bought this machine a little over a year ago. I'm very impressed with it. It works great and the bend quality is awesome. and if you have any questions or concerns they get you taken care of very quickly. There customer service to top notch!
    Jason Dean
    06/17/2017
    This bender is great but the customer service from Joe and the crew is even better! Buying from Rogue Fab was the right decision for me, easy to use product and they back it up if you have a question or need help.
    Taylor Rydzewski
    05/27/2017
    I absolutely love this bender I was a little worried how hard it would be to use and assemble but it was cake work. The customer service was top notch and the product is truly a quality product. I have several of rogues products and I will continue to get more. Great product.
    Morgan Newlin
    05/26/2017
    My wife bought me the weld together kit for Christmas last year. This is my first bender and I am excited to say that it works flawlessly. It has made bending bumpers, cage pieces and everything in between so easy with its ability to bend 90* with one stroke. I added the air over hydraulic ram, my buddies won't stop calling to come over and give it a try. Excellent product
    Chuck
    05/26/2017
    I purchased the weld together kit and a couple dies. Shipped quick, packaged well. You can not beat this price for a bender that will do 90 degree bends in one pass while you push a button. Being able to take the piece out with the clamp block in place and verify bends is priceless.
    Shawn Gibbs
    05/25/2017
    This is an absolutely amazing machine. I ordered the weld together kit and the quality of the steel is outstanding. The dies are almost too beautiful to use.
    Jan Cramer
    05/25/2017
    A real workhorse! Expertly engineered, a great price and excellent customer service!
    Steven Laughton
    05/25/2017
    Works great easy to store very solid machine
    Dennis
    05/25/2017
    Love the bender, beautiful bends with little distortion, just an overall great product
    Brian
    05/25/2017
    Looked long and hard for a bender that could do what I needed in the space and budget I had. Quality is good. Weld together option was nice to save more money.bender bends up towards ceiling and gives you more room for working vs other benders. Best bang for your buck out there.
    Jon Kelley
    05/25/2017
    Purchased the weld together model 600 system in January 2015 due to the quality and pricing. Since I've been bending cages and bumpers for various projects. This bender is a piece of art and American Made! You won't regret and product purchases from Rogue Fab!!
    @lukie_dude
    05/25/2017
    Super legit machine! Accurate bends and being able to place tube back in the bender to bend in the exact same place is rad!
    Wayne Smith
    05/25/2017
    Awesome product. Shipped quickly. Quality of parts and instructions was great. Added the air powered jack. Great machine. Have to get the table next. Thanks.
    Eric Biles
    05/25/2017
    So far I love it. I've used the pedestal style benders before, but you have to have them mounted to the floor which was impossible at my location. I haven't been able to use it much since I got it, but started on a bumper and it bends like a dream. Just don't forget to grease the die. I only botched the first bend because I forgot. After the short learning curve I've been rolling right along. The quality of the bender itself is so nice I almost feel guilty for using the cheap harbor freight ram on it. I am really glad I did a bit more digging, while researching for a bender. Because I was real close to going the manual pedestal route. I watched some instructional videos and ran across Joe's videos at Rogue. Thanks Rogue Fab for making my life so much easier.
    Andy
    05/25/2017
    Awsome tool to have! I have had it for a year bent numerous exo cages with absolutely no fail. Just need to upgrade to the roller pressure die and HD pin.
    Stewart Kerns
    05/25/2017
    I bought one of these about 4 or 5 months ago to do a prototype umbrella stand for a nearby city. I mainly do fabrication as a side job and I had been looking at this bender for a while for rollcages. Since square tube dies were available I went ahead and pulled the trigger on it. I sure am glad I did. I finished the prototype with this bender and got asked to build another 40 down the line. I just finished bending 40 hoops out of aluminum square tube and I have to say this bender did absolutely amazing. I used the UHMW pressure die and it left no marks on the aluminum. Throughout all 40 180* degree bends the machine was more than consistent and I was thoroughly impressed by it. I've used two other benders in the past, the first was an old school manual one (yikes, that one was rough). The other was a competitor's bender that was also hydraulic. It was borrowed from a friend in order to build a rollcage for our Lemons car. While it worked, it lacked things such as over 90* in one bend, you don't realize how useful this is until you have to make a bunch of 90* bends and you have to reset the machine. With this machine, it not only does 90* in one go, it does 95* which is great since all metal will come back some. This is getting to be a somewhat long review but I'd also like to add that I was very impressed by the thought that went into this bender. As an engineer, I can say that a lot of thought was put into the design to not only be a tough bender, but be one that's extremely easy to put together and even easier to use. Overall, I was extremely impressed with the bender and I can't wait to continue using it this summer since I have some more rollcages to build. Oh, and the customer service here is absolutely amazing. There's really not much more you can ask for from a company, great product, American made, and amazing customer service.
