Description
**Until further notice (due to supply chain issues), all packages with air/hydraulic cylinders are shipping with this cylinder: (LINK). Once our regular supply is restored, we will switch back to our regular cylinder.

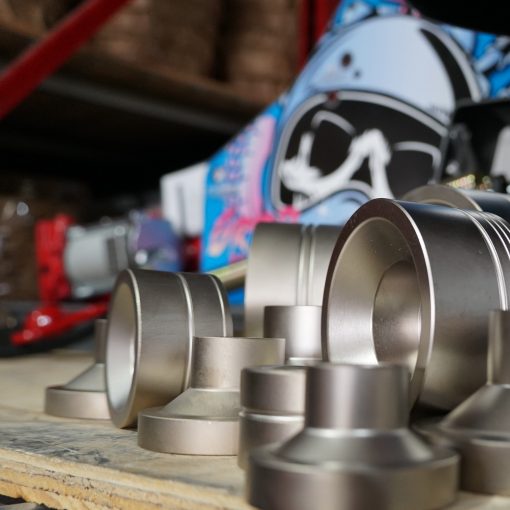

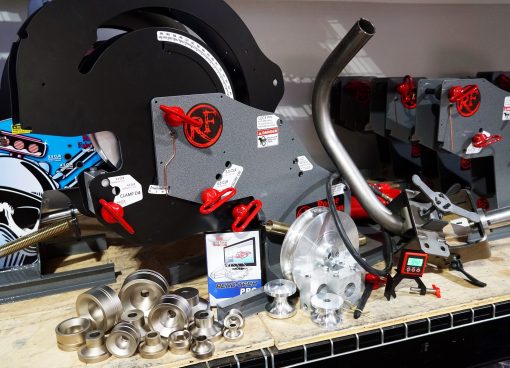

We created a unique package aimed at accurate and efficient roll cage fabrication that was as lean as possible, while still including a notcher, multiple dies, software, and a full set of nickel plated dimple dies. The result is the roll cage dream package. Everything you need, nothing you don’t! For an even more complete setup, add our elite cart and pedestal mount for the notcher so they can roll around your shop together. Save $239 by purchasing this package! Our current lead times are 1 to 4 business days for weld together benders (with dies), and 2 to 6 business days for powder coated machines (this includes packages containing tubing benders and accessories).
List of what is included:
Machine Dimensions:
M6xx tubing bender: (assembled, ready to bend): 12”x30” floor footprint. Overall dimensions 12”x47”x32” (LxWxH). Weight 140-200 lbs.
M6xx Bender on Cart: 22”x34” floor footprint. Overall dimensions 22”x47”x68” (LxWxH). Weight 210+ lbs (depends on cart contents).
M6xx Mandrel Bender on Cart: 22”x34” floor footprint. Overall dimensions 22”x105”x68” (LxWxH). Weight 295+ lbs (depends on cart contents).

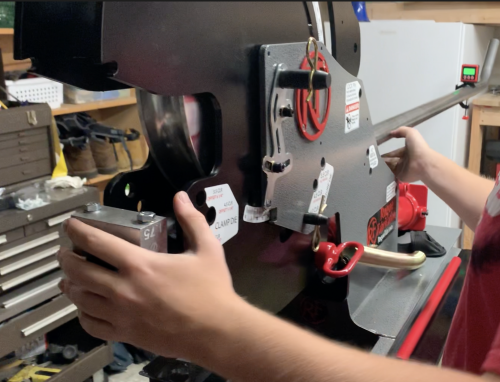

Changing dies is quick and easy!

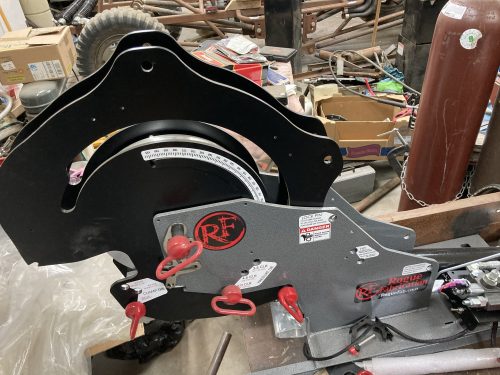

Capabilities of M605/625 metal tube bender
We have the most affordable dies in the industry, and all of them bend 180+ degrees. You can forget about “90 degree 1 shot” benders that stop at 90. Our bender can do 94 degrees in one shot, and then continue and bend past 180 after adjusting the hydraulics.
Bends Carbon and Stainless Steel
The M625 metal bender has been tested on carbon and stainless steel and works very well. Our line of tubing benders have an unmatched range of wall thicknesses that they can successfully bend due to their extreme capacity for thick walled tube on the M625 and their amazing thin wall range when equipped with the Rogue Fab Mandrel Attachment.
Other Supported Materials
Our M625 can also make S-Bends, which is shown in our videos section. Furthermore, it can bend:
- brass
- copper
- aluminum (round/square tube and pipe)
- thin-walled titanium for turbo manifold work and tubular titanium frames (when using our Mandrel Attachment)
While this metal tube bender can bend super thick DOM tubing, it also bends thin 4130 chromoly for roll cages, and can still make accurate 3D bends with ease on either material.
Flexible Design
The best thing about our line of tubing benders is how they can easily grow with your shop. You can get the machine now as the M605 or the overkill-strong M625, and be up and running without spending your whole tool budget.
Down the road, there is no need to sell this machine to upgrade:
- You can add a mandrel attachment to bend extremely thin tubing.
- You can upgrade to pressure roller dies for more complex bend geometry and bending aluminum
- You can upgrade to a 9.5 degree per second electric/hydraulic power system with auto stops for repeat parts.
- You can even add a backstop and rotation gauges to keep track of bend spacing and rotation between bends on 3D parts.
Need storage space? We sell cart kits and completed carts for our machines. Want to get advanced? Our web page is the single most complete source for information on tube bending. Read all of it in our Technical Index (LINK).
Are you worried about learning how to bend tube? Or learning a new machine? Ours is the easiest to use, and able to make to most complicated bends. Let us show you in under 7 minutes:
Want to see a whole project from start to finish, and even more bending tricks that are 100% unique to our design? Watch this video:
