Crosskart Builder Package (KJ Raycing VF1/VF2)**

Benders

• M601

  Our standard-duty bender. Great for roll cage and chassis work up to 1.75" tube.

  • Weld-Together Kit - $725.00
    Flat-packed kit you weld together yourself, the most affordable way in.
  • Welded & Powdercoated - $1,259.95
    Fully welded and powdercoated at our shop, bend on day one.

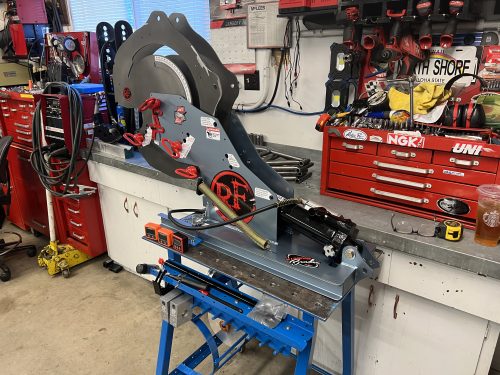

• M605

  Our most popular bender. Heavy-duty frame, includes the HD kit. Bends a full 2" tube.

  • Weld-Together Kit - $750.00
    Flat-packed kit you weld together yourself, the most affordable way in.
  • Welded & Powdercoated - $1,345.00
    Fully welded and powdercoated at our shop, bend on day one.

• M625

  Our beefiest bender, 7/8" pin for the most extreme work. The most capacity we make.

  • Weld-Together Kit - $1,478.00
    Flat-packed kit you weld together yourself, the most affordable way in.
  • Welded & Powdercoated - $1,938.00
    Fully welded and powdercoated at our shop, bend on day one.

Dies, tooling & options

Die Component Selection

A die forms your bend. Each die needs a pressure die and a clamp block to actually work. Pressure dies + clamp blocks have adjustable quantities (2"+ heavy-duty defaults to two pressure dies).

Tube size (OD)

Pick the outside diameter of the tube you want to bend. Next you'll choose how tight it curves.

• 0.5" - $237.00
  1/2" round tube.
• 0.625" - $237.00
  5/8" round tube.
• 0.675" / 0.840" combo - $237.00
  One combo die that bends both 0.675" and 0.840" round tube.
• 0.75" / 0.875" combo - $237.00
  One combo die that bends both 3/4" (0.75") and 7/8" (0.875") round tube.
• 1.0" - $237.00 – $359.00Price range: $237.00 through $359.00
  Common for light cages, rails, and accents.
• 1.125" - $237.00 – $419.00Price range: $237.00 through $419.00
  1-1/8" round tube.
• 1.163" EMT - $237.00 – $419.00Price range: $237.00 through $419.00
  3/4" EMT electrical conduit.
• 30mm - $237.00
  30mm round tube.
• 1.25" - $237.00 – $419.00Price range: $237.00 through $419.00
  Workhorse size for roll cages and chassis.
• 1.375" - $237.00 – $419.00Price range: $237.00 through $419.00
  1-3/8" round tube.
• 1.5" - $237.00 – $419.00Price range: $237.00 through $419.00
  Heavier cages, bumpers, sliders.
• 40mm - $417.00
  40mm round tube.
• 1.625" - $237.00 – $419.00Price range: $237.00 through $419.00
  1-5/8" round tube.
• 1.75" - $237.00 – $419.00Price range: $237.00 through $419.00
  1-3/4" round tube, big bumpers and bars.
• 1.90"/1.875" - $237.00 – $419.00Price range: $237.00 through $419.00
  1-7/8" tube.
• 2.0" - $237.00 – $419.00Price range: $237.00 through $419.00
  The biggest round tube the M600 series bends (2.0").
• 3/4" pipe (1.05") - $237.00 – $419.00Price range: $237.00 through $419.00
  3/4" nominal pipe = 1.05" OD.
• 1" pipe (1.315") - $237.00 – $419.00Price range: $237.00 through $419.00
  1" nominal pipe = 1.315" OD.
• 1-1/4" pipe (1.66") - $237.00 – $419.00Price range: $237.00 through $419.00
  1-1/4" nominal pipe = 1.66" OD.
• 0.75" square - $237.00
  3/4" square tube.
• 1.0" square - $237.00 – $419.00Price range: $237.00 through $419.00
  1" square tube.
• 1.25" square - $237.00 – $419.00Price range: $237.00 through $419.00
  1-1/4" square tube.
• 1.5" square - $419.00
  1-1/2" square tube.

Pressure die

The pressure die pushes against the tube during the bend. Required, the die won't work without one.

• Friction (Standard) - $23.00
  The standard, most affordable pressure die. Needs lubricant on the bend. Cannot run aluminum, it galls.
• Roller - $59.00
  Rolls with the tube, no lubrication needed and works on ALL materials, including aluminum.
• UHMW - $46.00
  For anodized aluminum or polished stainless steel or polished aluminum only. Wears the fastest.

Clamp block

Additional clamp blocks make for an easier setup and to set up coplanar bends.

• 0.5" clamp - $59.00
• 0.625" clamp - $59.00
• 0.675"/0.840" combo clamp - $59.00
• 0.75"/0.875" combo clamp - $59.00
• 1.0" clamp - $59.00
• 1.0" clamp (Laser Indexed) - $75.00
• 1.05" clamp - $59.00
• 1.05" clamp (Laser Indexed) - $75.00
• 1.125" clamp - $59.00
• 1.125" clamp (Laser Indexed) - $75.00
• 1.163" EMT clamp - $59.00
• 1.163" EMT clamp (Laser Indexed) - $75.00
• 30mm clamp - $59.00
• 30mm clamp (Laser Indexed) - $75.00
• 1.25" clamp - $59.00
• 1.25" clamp (Laser Indexed) - $75.00
• 1.315" clamp - $59.00
• 1.315" clamp (Laser Indexed) - $75.00
• 1.375" clamp - $59.00
• 1.375" clamp (Laser Indexed) - $75.00
• 1.5" clamp - $59.00
• 1.5" clamp (Laser Indexed) - $75.00
• 40mm clamp - $59.00
• 40mm clamp (Laser Indexed) - $75.00
• 1.625" clamp - $59.00
• 1.625" clamp (Laser Indexed) - $75.00
• 1.66" clamp - $59.00
• 1.66" clamp (Laser Indexed) - $75.00
• 1.75" clamp - $59.00
• 1.75" clamp (Laser Indexed) - $75.00
• 1.90" clamp - $59.00
• 1.90" clamp (Laser Indexed) - $75.00
• 2.0" clamp - $59.00
• 2.0" clamp (Laser Indexed) - $75.00
• 0.75" square clamp - $59.00
• 1.0" square clamp - $59.00
• 1.25" square clamp - $59.00
• 1.5" square clamp - $59.00

Thin Wall Roller

Mandrel Attachment

Add a mandrel attachment

A mandrel supports the inside of the tube so you can bend thinner walls or tighter radii without collapsing. We flag it automatically if your spec needs one. It includes everything required to bend, the only variable is the bronze mandrel, sized to your tube.

• Yes, add the mandrel attachment
  Drops in the complete attachment, frame, both rods, the bronze mandrel sized to your tube, lube system, lube, and position tool, as one locked set.

Hydraulics

How will you power it?

A hydraulic ram does the bending force. Air runs off shop air (cheapest); electric power units are fastest for production. Required, the bender can't bend without one (or pick "I'll provide my own").

• Air / Hydraulic Ram - $249.95
  Runs off your shop air compressor. The most affordable way to power the bender.
• 1.5 HP Electric Hydraulic System - $1,872.00
  Standalone electric power unit, no air compressor needed. Great for most shops.
• 2.0 HP Electric Hydraulic System - $2,614.00
  Faster cycle times for high-volume production work.
• No ram, I'll provide my own
  Bring your own Harbor Freight or Northern Tool ram. We include the hardware for your selected ram so it fits your frame.

Which ram will you provide?

We include the hardware machined to fit your ram brand. It ships with your order automatically.

• Harbor Freight Ram hardware - $54.00
  The hardware, machined to fit a Harbor Freight ram so it mounts to your frame.
• Northern Tool Ram hardware - $65.00
  The hardware, machined to fit a Northern Tool ram so it mounts to your frame.

Add a Tubing Notcher

Add a tubing notcher

Notching cuts a fishmouth so tubes fit tightly where they meet. Most cage and chassis builders need one.

• Yes, configure a notcher
  Opens the notcher options below.

Notcher

The VersaNotcher is our universal pipe & tubing notcher. The UltraNotcher is the most adjustable notcher made, compound angles and offsets.

• VersaNotcher, Raw Steel - $549.95
  Universal pipe & tubing notcher, raw steel finish.
• VersaNotcher, Clear Zinc - $599.95
  Same notcher with a clear zinc coating for corrosion resistance.
• UltraNotcher - $999.00
  The most adjustable notcher we make, compound angles and offsets.

Hole saws

The hole saw cuts the fishmouth. We pre-fill the diameter to match your die size, add more saws for other joints. Deeper saws reach across bigger main tubes.

• Hole saw, bi metal, USA, Choose Size or package - 1.50" cutting depth - $9.00 – $21.00Price range: $9.00 through $21.00
• 2 Inch Deep FINE TOOTH Hole Saws for Tube Notching, M42 Bi-Metal - $21.00 – $32.00Price range: $21.00 through $32.00
• 3 Inch Deep FINE TOOTH Hole Saws for Tube Notching, M42 Bi-Metal - $36.00 – $50.00Price range: $36.00 through $50.00
• 4 Inch Deep FINE TOOTH Hole Saws for Tube Notching, M42 Bi-Metal - $44.00 – $72.00Price range: $44.00 through $72.00
• 3 Inch Deep Hole Saws for Tube Notching, M42 Bi-Metal - $35.00 – $52.00Price range: $35.00 through $52.00
• 4 Inch Deep Hole Saws for Tube Notching, M42 Bi-Metal - $39.00 – $59.00Price range: $39.00 through $59.00

Arbor(s)

The arbor is the shaft the hole saw threads onto and chucks into your notcher.

• 5/8"-18 Arbor (1-1/4" saws and larger) - $11.00
• 1/2"-20 Arbor (1-1/8" saws and smaller) - $11.00

Cutting lube

Keeps the hole saw cool and cutting clean. Cheap insurance for saw life.

• AnchorLube Cutting Lube (8 oz) - $9.00
  Water-based semi-paste that clings to the cutting edge instead of slinging off like thin oils, less re-applying, cleaner notches, far longer hole-saw life, and easy water cleanup. Our pick for notching.
• Cutting Fluid (4 oz) - $7.00
  Basic notching fluid, keeps the hole saw cool and cutting clean. Cheap insurance for saw life.

Mount it to your cart

Optional hardware to bolt the notcher onto a RogueFab bender cart.

• Notcher Pedestal Mount - $109.00
  Bolts your notcher straight onto any RogueFab bender cart. Super rigid, fully welded and powder coated satin black, with the mounting hardware included. Made in the USA.
• VersaNotcher Offset Bracket - $109.00
  Running a mandrel? This offsets the notcher away from the bender so you can use the mandrel backstop without pulling the notcher off. It bolts onto the pedestal mount (required), and adds two on-board hole-saw storage spots. Made in the USA.

Bender Upgrades Package

Our most popular accessory bundle. Take the whole package for a discount, uncheck anything and you just pay for the pieces you keep.

Add the Bender Upgrades Package

The precision upgrades most builders add, bundled: degree indicator, digital angle cube kit, breakaway die-change pin, and stainless trim. Cheaper together than piece by piece.

• Yes, add the upgrades package
  Adds all the items below at the bundle discount. Uncheck any to customize.

Whats in the package

• Stainless Degree Indicator - $35.00
  Precise, repeatable bend angles.
• Degree Indicator Hardware Bag - $5.00
  Mounting hardware for the degree indicator.
• Stainless Degree Bars - $36.00
  Reference bars for the degree indicator.
• Break-Away Die Change Delrin Pin - $9.00
  Swap dies faster without tools.
• Break-Away Die Change Pin Knob - $14.00
  Knob for the break-away die-change pin.
• Digital Angle Cube - $40.00
  Digital readout of your bend angle.
• Tube Rotation Indexing Clamp - $47.00
  Repeatable tube rotation between bends.
• Angle Cube Top Plate - $7.00
  Mounting plate for the digital angle cube.
• Stainless Steel Label, Clamp Block - $20.00
  Engraved stainless label for the clamp-block location.
• Stainless Steel Label, Pressure Die - $20.00
  Engraved stainless label for the pressure-die location.

Bender Cart

A rolling stand to mount your bender, with die storage. Makes the bender portable around the shop.

Die racks & storage

Add die racks to your cart so your dies, clamps, and tooling store right on the bender. Pick as many as you want.

• Lower Die Rack - $175.00
  Holds dies low on the cart.
• Side Die Rack (hanging) - $109.00
  Hangs dies on the side of the cart.
• Beast Rack - $274.00
  Heavy-duty rack for the most tooling.
• Upper Die Rack - $350.00
  Adds an upper shelf of die storage.

Pump mounting bracket

Bolts your electric/hydraulic power unit to the cart so it rolls together. Auto-matched to your power unit. Only applies to the electric power units, the air ram doesn't use one.

• Bracket for 1.5 HP Pump - $193.00
  Fits the 1.5 HP electric/hydraulic power unit.
• Bracket for 2.0 HP Pump - $127.00
  Fits the 2.0 HP electric/hydraulic power unit.

Bend capacity chart

Feasibility comes from our own capacity testing. "Min wall (as-is)" is the thinnest wall that bends cleanly without support at that radius; thinner walls need a mandrel (or a thin-wall roller at the minimum). All figures are in inches.

pipe

round tube

square tube
